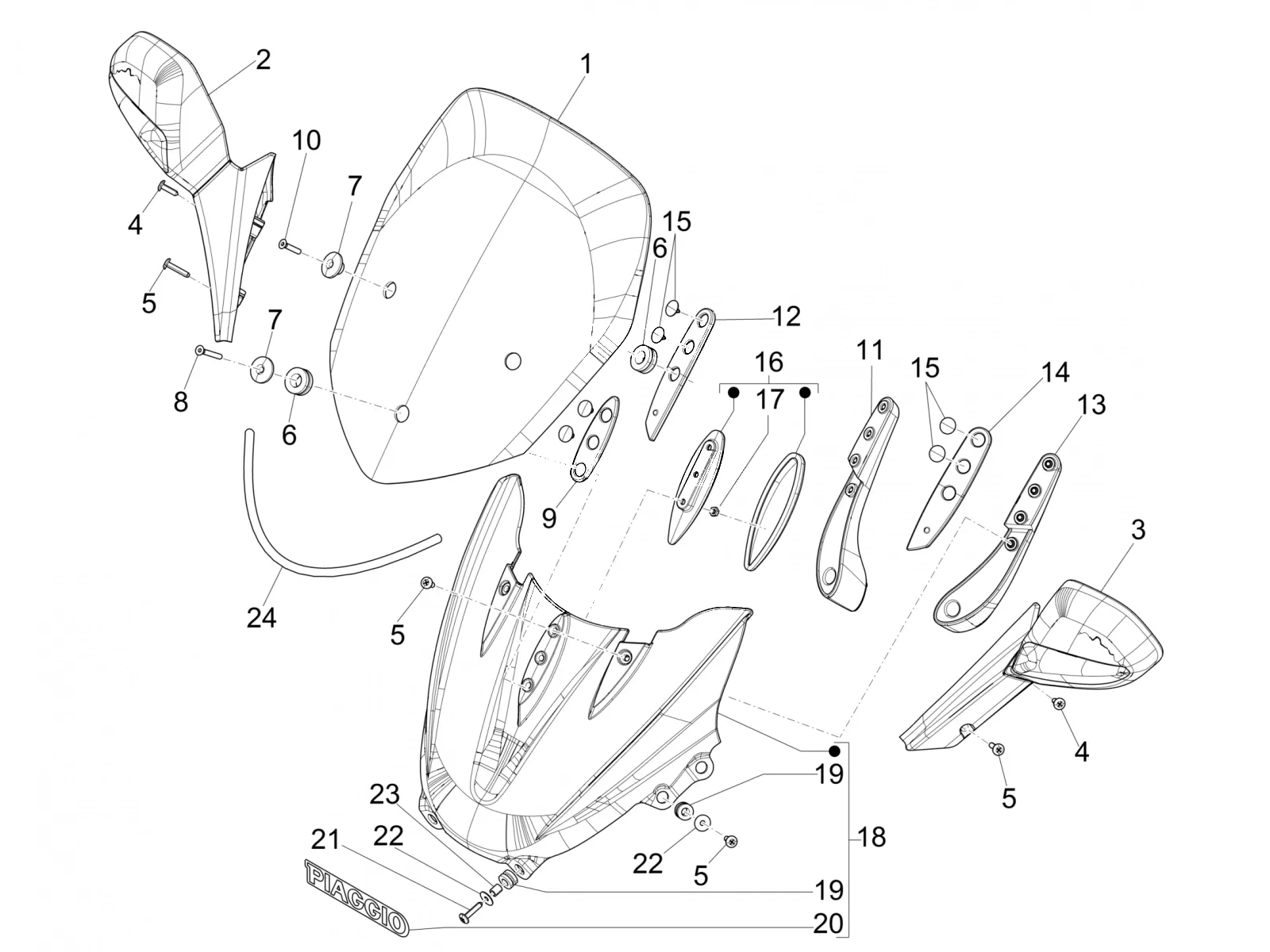

Exploded view — Windshield

Products

1 Upper windscreen 577102 No longer available

• 577102 Upper windscreen
  No longer available

2 Mirror right Available 5833790090

•

  Mirror, right, black, 90_black shiny 094 Piaggio Group · 5833790090 Available

  € 84,60

  Add to cart
• 58337900E8 Mirror right
  No longer available
• 58337900D1 Mirror right
  No longer available
• 583379000P Mirror DX
  No longer available

3 Mirror left 58338100E8 No longer available

• 58338100E8 Mirror left
  No longer available
• 583381000P Mirror SX
  No longer available
• 58338100D1 Mirror left
  No longer available
• 58338100EA Mirror left
  No longer available

5 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 6 Available

  € 1,48

  Add to cart

6 Spacer (rubber) Available 560173

•

  Buffer Piaggio Group · 560173 · Quantity needed: 3 Available

  € 4,51

  Add to cart

7 Windshield stud 621940 No longer available

• 621940 Windshield stud Quantity needed: 3
  No longer available

8 Screw Available 1B006381

•

  Screw Piaggio Group · 1B006381 · Quantity needed: 2 Available

  € 1,02

  Add to cart

9 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

10 Screw Available 576836

•

  Screw Piaggio Group · 576836 Available

  € 4,48

  Add to cart

11 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

12 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

13 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

14 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

15 Cover Available 577237

•

  Plug Piaggio Group · 577237 · Quantity needed: 4 Available

  € 1,55

  Add to cart

16 Strip gasket Available 935119

•

  Mounting kit for windscreen Piaggio Group · 935119 Available

  € 203,21

  Add to cart

17 Nut Available 020206

•

  Standard nut Piaggio Group · 020206 · Quantity needed: 3 Available

  € 1,79

  Add to cart

18 Windshield lower part Available 5772650038

•

  Bracket for windscreen, 430x300 mm, bottom Piaggio Group · 5772650038 Available

  € 239,88

  Add to cart

19 Cylindrical cable grommet Available 576565

•

  Cable Guide Piaggio Group · 576565 · Quantity needed: 6 Available

  € 1,32

  Add to cart

20 Sticker - Decal Available 6214540038

•

  Lettering, motive: Piaggio, grey Piaggio Group · 6214540038 Available

  € 10,04

  Add to cart

21 Screw Available 271891

•

  Screw M6x30 Piaggio Group · 271891 · Quantity needed: 2 Available

  € 1,59

  Add to cart

22 Washer d6,2x20x1 Available 013092

•

  Washer 6,2x20x1 mm Piaggio Group · 013092 · Quantity needed: 6 Available

  € 1,26

  Add to cart

23 Spacer Available 273288

•

  Spacer Piaggio Group · 273288 · Quantity needed: 4 Available

  € 2,18

  Add to cart

24 Windshield weather strip CM006001 No longer available

• CM006001 Windshield weather strip
  No longer available
