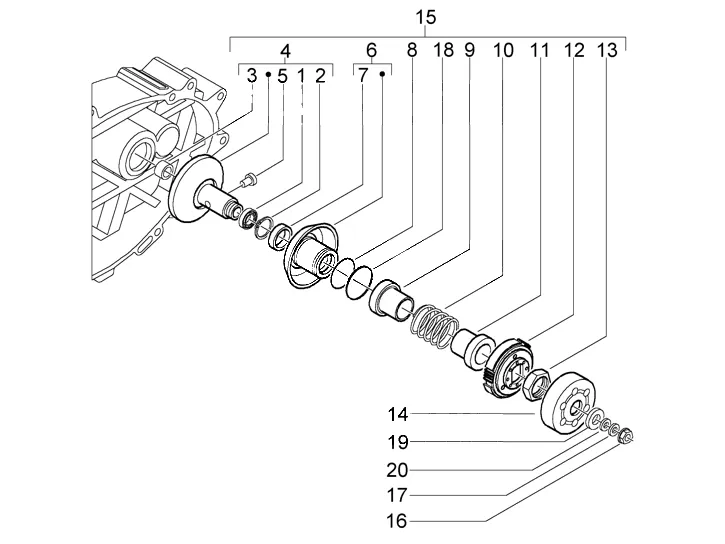

Exploded view — Driven Pulley
‹ Back to model
Piaggio X9 500 Evolution ABS 1998–2005
Products
1 Bearing Available
-
Radial bearing 6904 2RSI-C3H, 20x37x9 mm Piaggio Group · 82627R Available€ 28,74
2 Seeger Available
-
Snap-in Ring Piaggio Group · 825382 Available€ 5,28
3 Needle bearing Available
-
Bearing cage 25x33x18 mm Piaggio Group · 829808 Available€ 34,30
4 Clutch assy with driven pulley Available
-
Pulley rear Piaggio Group · CM314002 Available€ 792,02
5 Guide pin
-
828978 Guide pin Quantity needed: 4No longer available
6 Clutch assy with driven pulley Available
-
Pulley rear Piaggio Group · CM314002 Available€ 792,02
7 Oil seal Available
-
Fork Seal 50x57x5 mm Piaggio Group · 825239 · Quantity needed: 2 Available€ 9,37
8 O-Ring Backorder
-
O-Ring Piaggio Group · 825237 Backorder€ 2,31
9 Spring seat Available
-
Spring Mount Piaggio Group · 828974 Available€ 14,60
10 Spring Available
-
Converter spring Piaggio Group · 831098 Available€ 43,50
11 Spring seat Available
-
Spring plate Piaggio Group · 825384 Available€ 4,15
12 Clutch Backorder
-
Clutch Shoes Piaggio Group · 8405775 Backorder€ 177,35
13 Clutch nut Available
-
Standard nut Piaggio Group · 825385 Available€ 15,11
14 Clutch bell Available
-
Clutch Case Piaggio Group · 8251765 Available€ 94,83
15 Clutch assy with driven pulley Available
-
Pulley rear Piaggio Group · CM314002 Available€ 792,02
16 Nut Available
-
Standard nut M14x1.5 Piaggio Group · 827116 Available€ 2,44
17 Washer Backorder
-
Washer Piaggio Group · 840319 Backorder€ 2,15
18 O-Ring Available
-
Gasket Piaggio Group · 828984 Available€ 3,44
19 Spacer Available
-
Washer Piaggio Group · 875391 Available€ 3,18
20 Washer Available
-
Washer Piaggio Group · 840320 Available€ 2,63
