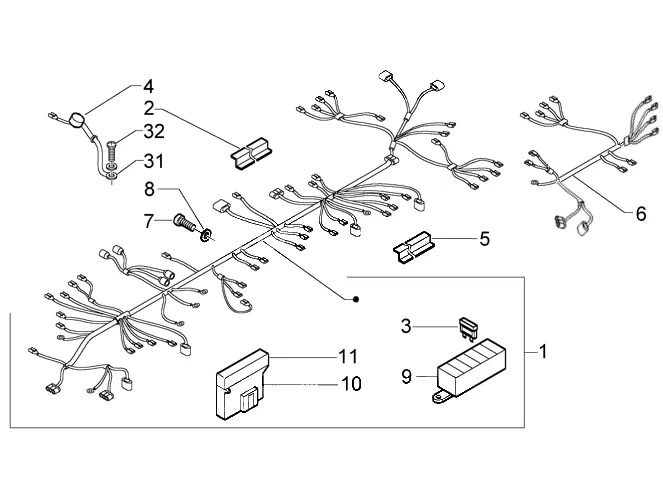

Exploded view — Main Cables Unit

Products

1 Main wiring harness 639138 No longer available

• 639138 Main wiring harness
  No longer available
• 638876 Main wiring harness
  No longer available

3 Fuse (3A) Available 582930

•

  Fuse 3 A Piaggio Group · 582930 Available

  € 0,99

  Add to cart
•

  Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 6 Available

  € 2,86

  Add to cart
•

  Fuse 70 A Piaggio Group · 291807 Available

  € 6,47

  Add to cart
•

  Fuse 10 A Piaggio Group · 292507 · Quantity needed: 2 Available

  € 2,86

  Add to cart
•

  Fuse 5 A Piaggio Group · 293256 Available

  € 2,09

  Add to cart
•

  Fuse 15 A Piaggio Group · 290860 · Quantity needed: 2 Available

  € 2,86

  Add to cart

4 Starter cable 582650 No longer available

• 582650 Starter cable
  No longer available

5 Guard Available 583282

•

  Protection piece Piaggio Group · 583282 · Quantity needed: 2 Available

  € 6,91

  Add to cart

6 Pump harness 583586 No longer available

• 583586 Pump harness
  No longer available

7 Screw Available 018644

•

  Screw Piaggio Group · 018644 Available

  € 1,48

  Add to cart

8 Washer (spring) Available 016404

•

  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 Available

  € 0,99

  Add to cart

9 Fuse holder Available 581190

•

  Fuse Box Piaggio Group · 581190 Available

  € 16,18

  Add to cart

10 Fuse holder Available 580653

•

  Fuse Box Piaggio Group · 580653 Available

  € 14,21

  Add to cart

11 Plug Available 581191

•

  Lid Piaggio Group · 581191 Available

  € 8,78

  Add to cart
