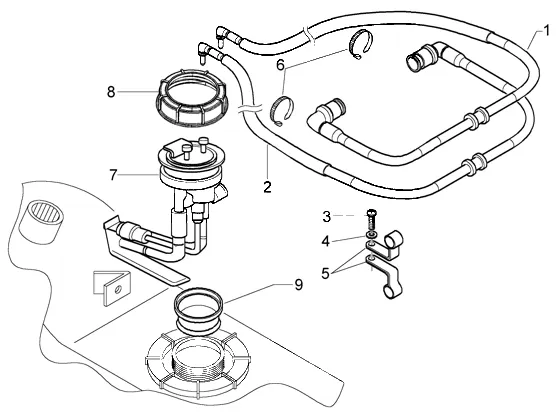

Exploded view — Supply System

‹ Back to model

Piaggio X9 500 Evolution ABS 1998–2005

Piaggio X9 500 Evolution ABS 1998–2005

Supply System

Products

1 Oil delivery pipe 621617 No longer available

621617 Oil delivery pipe
No longer available

2 Return pipe 621616 No longer available

621616 Return pipe
No longer available

3 Screw Available 1A003109

Screw M5x16 Piaggio Group · 1A003109 Available

€ 1,45

4 Washer Available 012528

Washer Piaggio Group · 012528 Available

€ 1,44

5 Hose clamp Available 273779

Clamp Piaggio Group · 273779 · Quantity needed: 2 Available

€ 2,27

6 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 · Quantity needed: 2 Available

€ 1,43

7 Fuel pump 641131 No longer available

641131 Fuel pump
No longer available

8 Ring nut Available 576546

Tank Cap Piaggio Group · 576546 Available

€ 8,40

9 Gasket Available 656003

Gasket Piaggio Group · 656003 Available

€ 26,78
