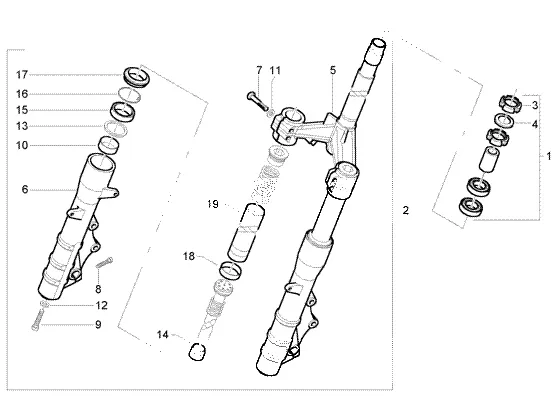

Exploded view — Fork

Products

1 Steering bearing kit Available 5982615

•

  Steering bearing kit Piaggio Group · 5982615 Available

  € 66,13

  Add to cart

2 Front fork 601118 No longer available

• 601118 Front fork
  No longer available

3 Steering tube ring nut Available 0111094

•

  Threaded ring Piaggio Group · 0111094 Available

  € 13,31

  Add to cart

4 Guard washer Available 582787

•

  Tab Washer Piaggio Group · 582787 Available

  € 2,27

  Add to cart

5 Plate 599499 No longer available

• 599499 Plate
  No longer available

6 Sleeve 599550 No longer available

• 599550 Sleeve
  No longer available
• 599549 Sleeve
  No longer available

7 Screw M8x40 (Marzocchi) 599511 No longer available

• 599511 Screw M8x40 (Marzocchi) Quantity needed: 4
  No longer available

8 Screw M6x25 (Marzocchi) 599512 No longer available

• 599512 Screw M6x25 (Marzocchi) Quantity needed: 2
  No longer available

9 Screw M10x30 Backorder AP8123216

•

  Cylinder Screw Piaggio Group · AP8123216 · Quantity needed: 2 Backorder

  € 8,57

  Add to cart

10 Cup (Marzocchi) 599504 No longer available

• 599504 Cup (Marzocchi) Quantity needed: 2
  No longer available

11 Washer Backorder 599510

•

  Gasket Piaggio Group · 599510 · Quantity needed: 4 Backorder

  € 3,24

  Add to cart

12 Seal washer Available AP8123206

•

  Sealing Disk Piaggio Group · AP8123206 · Quantity needed: 2 Available

  € 15,28

  Add to cart

13 Fork oil seal (Marzocchi) Available 599501

•

  Oil seal Piaggio Group · 599501 · Quantity needed: 2 Available

  € 30,29

  Add to cart

14 Stroke limit stop Available AP8123655

•

  Buffer Piaggio Group · AP8123655 · Quantity needed: 2 Available

  € 60,11

  Add to cart

15 Stop ring 599503 No longer available

• 599503 Stop ring Quantity needed: 2
  No longer available

16 Fork dust seal (Marzocchi) Available 599502

•

  Dust guard Piaggio Group · 599502 · Quantity needed: 2 Available

  € 26,34

  Add to cart

17 Upper bush Available 887882

•

  Sleeve Piaggio Group · 887882 · Quantity needed: 2 Available

  € 19,63

  Add to cart

18 Bushing 599629 No longer available

• 599629 Bushing Quantity needed: 2
  No longer available

19 Sleeve 601166 No longer available

• 601166 Sleeve Quantity needed: 2
  No longer available
