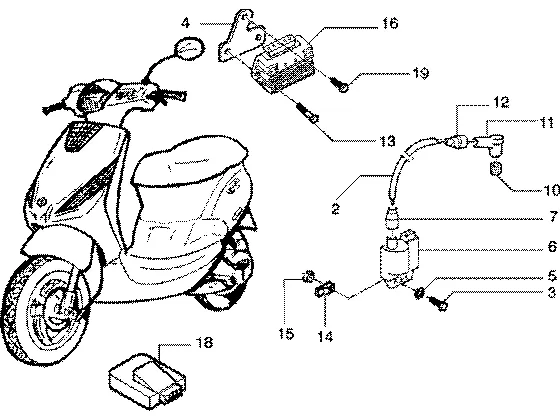

Exploded view — Electrical Device

Products

1 Main wiring harness 582040 No longer available

• 582040 Main wiring harness
  No longer available

2 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

3 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

4 Bracket Backorder 582030

•

  Bracket Piaggio Group · 582030 Backorder

  € 11,97

  Add to cart

5 Washer Available 012528

•

  Washer Piaggio Group · 012528 Available

  € 1,44

  Add to cart

6 Ignition coil Available 58083R

•

  Ignition Coil Piaggio Group · 58083R Available

  € 48,25

  Add to cart

7 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

9 Protection collar Available 436919

•

  Protection piece Piaggio Group · 436919 Available

  € 2,47

  Add to cart

10 Fairlead Available 582043

•

  Cable Guide Piaggio Group · 582043 Available

  € 5,84

  Add to cart

11 Spark plug cap Available 969348

•

  Spark Plug Connector for connection nut, L05EA, 90° Piaggio Group · 969348 Available

  € 16,29

  Add to cart

12 Spark plug cap Available 825186

•

  Spark Plug Connector Piaggio Group · 825186 Available

  € 29,05

  Add to cart

14 Bracket 582029 No longer available

• 582029 Bracket
  No longer available

15 Nut Available 241937

•

  Standard nut Piaggio Group · 241937 Available

  € 0,99

  Add to cart

16 Voltage regulator 58090R5 No longer available

• 58090R5 Voltage regulator
  No longer available

17 Fairlead Available 573052

•

  Cable Guide Piaggio Group · 573052 Available

  € 3,40

  Add to cart

18 CDI unit assy Available 58102R

•

  CDI Piaggio Group · 58102R Available

  € 183,79

  Add to cart

19 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 4 Available

  € 0,99

  Add to cart
