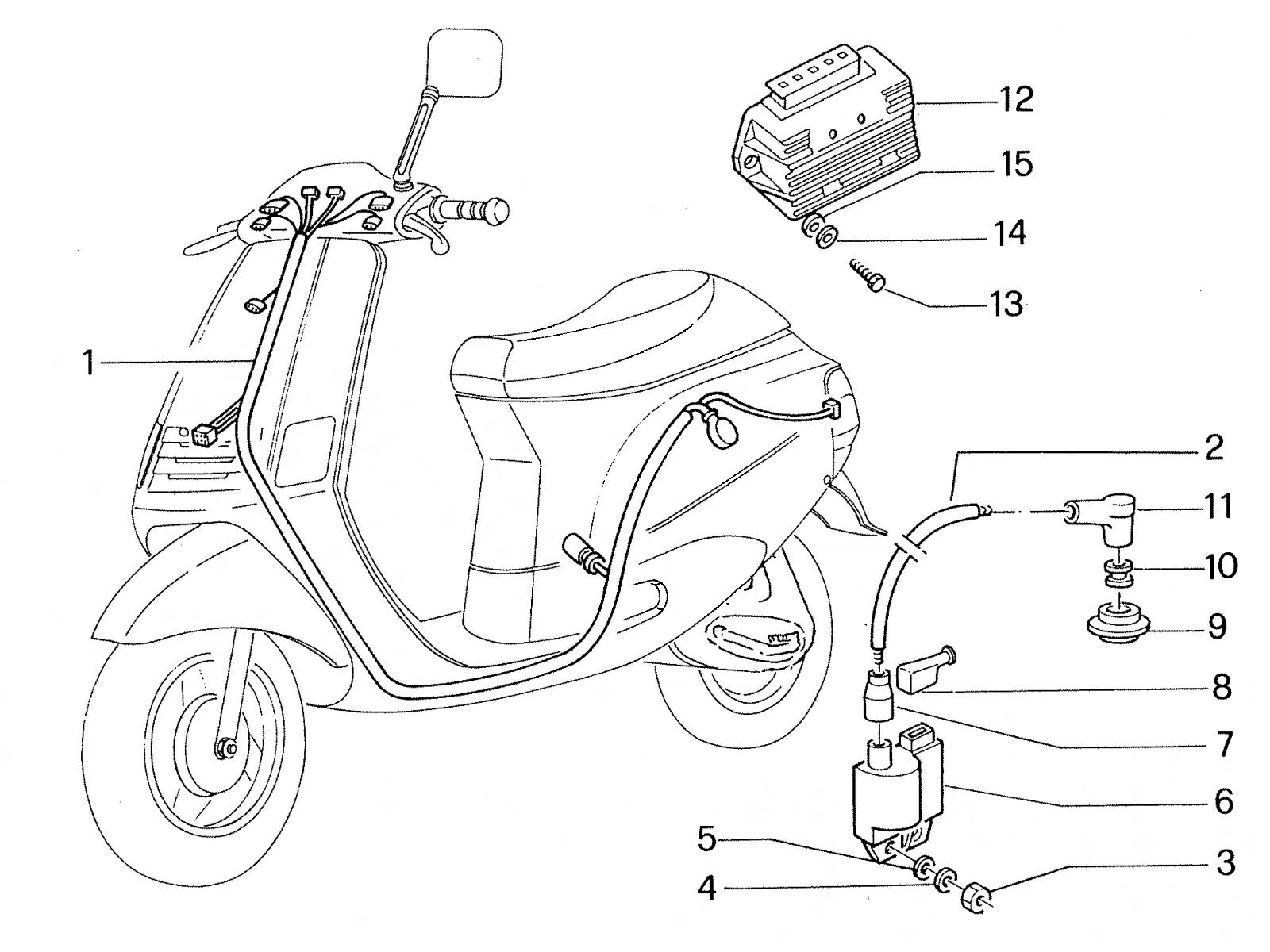

Exploded view — Electrical Systems

Products

1 CABLE HARN. 293733 No longer available

• 293733 CABLE HARN.
  No longer available

2 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available

  € 3,88

  Add to cart

3 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 · Quantity needed: 2 Available

  € 1,88

  Add to cart

4 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available

  € 1,84

  Add to cart

5 Washer 016686 No longer available

• 016686 Washer Quantity needed: 2
  No longer available

6 CDI unit Available 638678

•

  Ignition Coil Piaggio Group · 638678 Available

  € 81,24

  Add to cart

7 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available

  € 3,84

  Add to cart

8 Cap Available 255256

•

  Insulating Cover CDI Piaggio Group · 255256 Available

  € 5,08

  Add to cart

9 Spacer 292005 No longer available

• 292005 Spacer
  No longer available

10 Fairlead 114164 No longer available

• 114164 Fairlead
  No longer available

11 Spark plug cap Available 1D000275

•

  Spark Plug Connector Piaggio Group · 1D000275 Available

  € 48,05

  Add to cart

12 TENSION CONTROL 292957 No longer available

• 292957 TENSION CONTROL
  No longer available

13 Screw Available 015558

•

  Screw M16x16 Piaggio Group · 015558 · Quantity needed: 2 Available

  € 1,45

  Add to cart

14 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

  € 1,79

  Add to cart

15 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available

  € 1,84

  Add to cart
