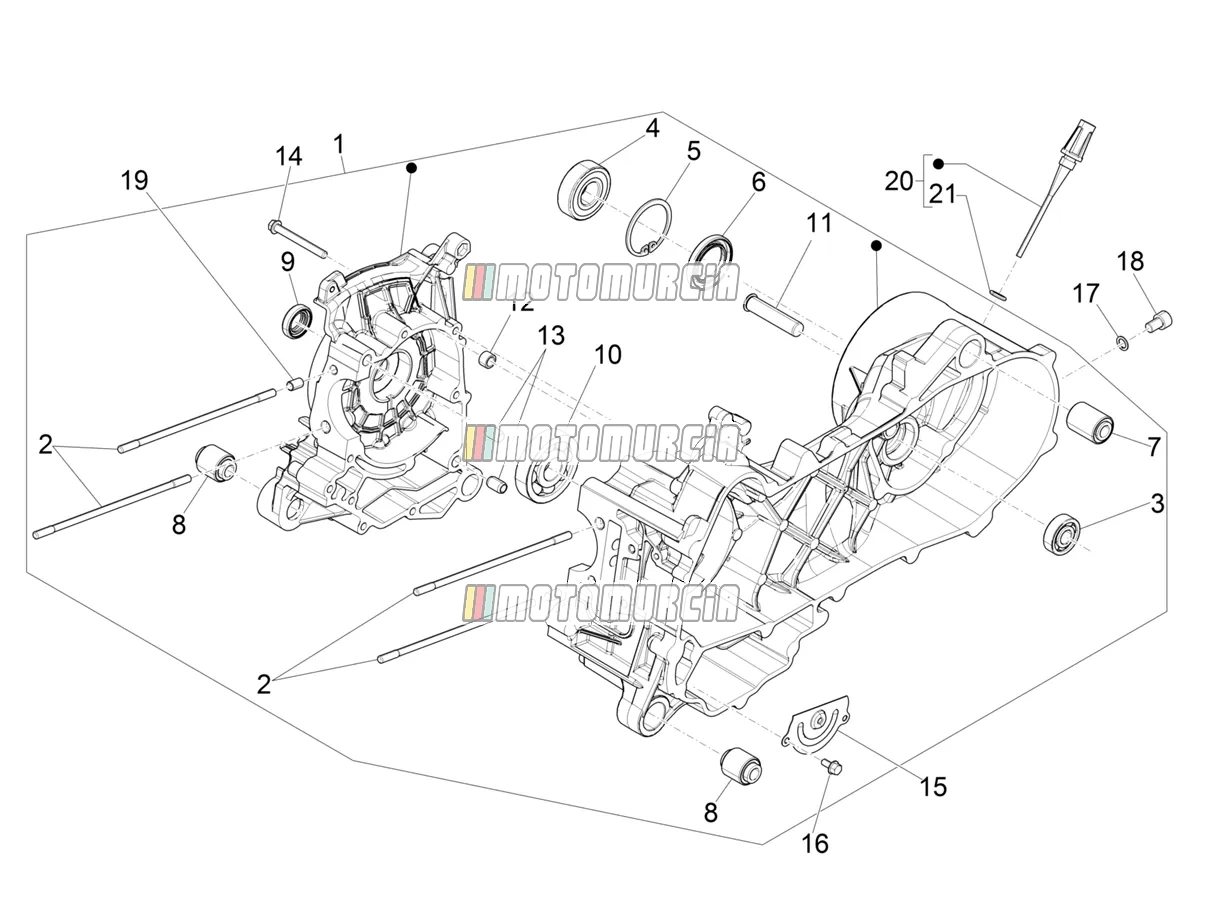

Exploded view — Crankcase

Products

1 Crankcase assembly Available 1A017845

•

  Crankshaft Housing Piaggio Group · 1A017845 Available · Shipped in 3–5 working days

  € 848,69

  Add to cart

2 Stud bolt Available 842161

•

  Stud Screw Piaggio Group · 842161 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 7,61

  Add to cart

3 Radial bearing Available 83045R

•

  Radial bearing 6201 C3, 12x32x10 mm Piaggio Group · 83045R Available · Shipped in 3–5 working days

  € 7,84

  Add to cart

4 Seeger Available 006647

• • Country: Indonesia


  Circlip Ø 47,00 mm Piaggio Group · 006647 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

5 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available · Shipped in 3–5 working days

  € 18,77

  Add to cart

6 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available · Shipped in 3–5 working days

  € 6,98

  Add to cart

7 Silentblock Available 666991

•

  Silentblock Piaggio Group · 666991 Available · Shipped in 3–5 working days

  € 4,88

  Add to cart

8 Silentblock - engine mount Available 1A008919R

•

  Buffer Piaggio Group · 1A008919R · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 9,58

  Add to cart

9 Crankshaft oil seal Available 969028

•

  Shaft Seal 17x28x7 mm Piaggio Group · 969028 Available · Shipped in 3–5 working days

  € 7,27

  Add to cart

10 Bearing Available 82671R

•

  Ball bearing TM-SC04C27/CS40, 20x60x13 mm Piaggio Group · 82671R Available · Shipped in 3–5 working days

  € 36,89

  Add to cart

  Alternatives from other brands

  BEARING 3TM-SC04C27CS40 - NTN (CRANKSHAFT) Athena · MS200600130AA Backorder · Shipped in 2–5 weeks

  € 19,52

  Add to cart

11 Shoe fulcrum pin Available 272921

•

  Pin Piaggio Group · 272921 Available · Shipped in 3–5 working days

  € 15,02

  Add to cart

12 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available · Shipped in 3–5 working days

  € 1,65

  Add to cart

13 Dowel pin Available 277916

•

  Adapter Sleeve Piaggio Group · 277916 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 7,27

  Add to cart

14 Screw Available 478895

•

  Flanged Screw Piaggio Group · 478895 · Quantity needed: 10 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

15 Oil bulhead Available 969625

•

  Oil Partition Plate Piaggio Group · 969625 Available · Shipped in 3–5 working days

  € 7,32

  Add to cart

16 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

17 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available · Shipped in 3–5 working days

  € 1,25

  Add to cart

18 Screw Available 269755

• • Country: China


  Screw M8x12 Piaggio Group · 269755 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart

19 Dowel pin Backorder B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 Backorder · Shipped in 2–4 weeks

  € 1,32

  Add to cart

20 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available · Shipped in 3–5 working days

  € 6,34

  Add to cart

21 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
