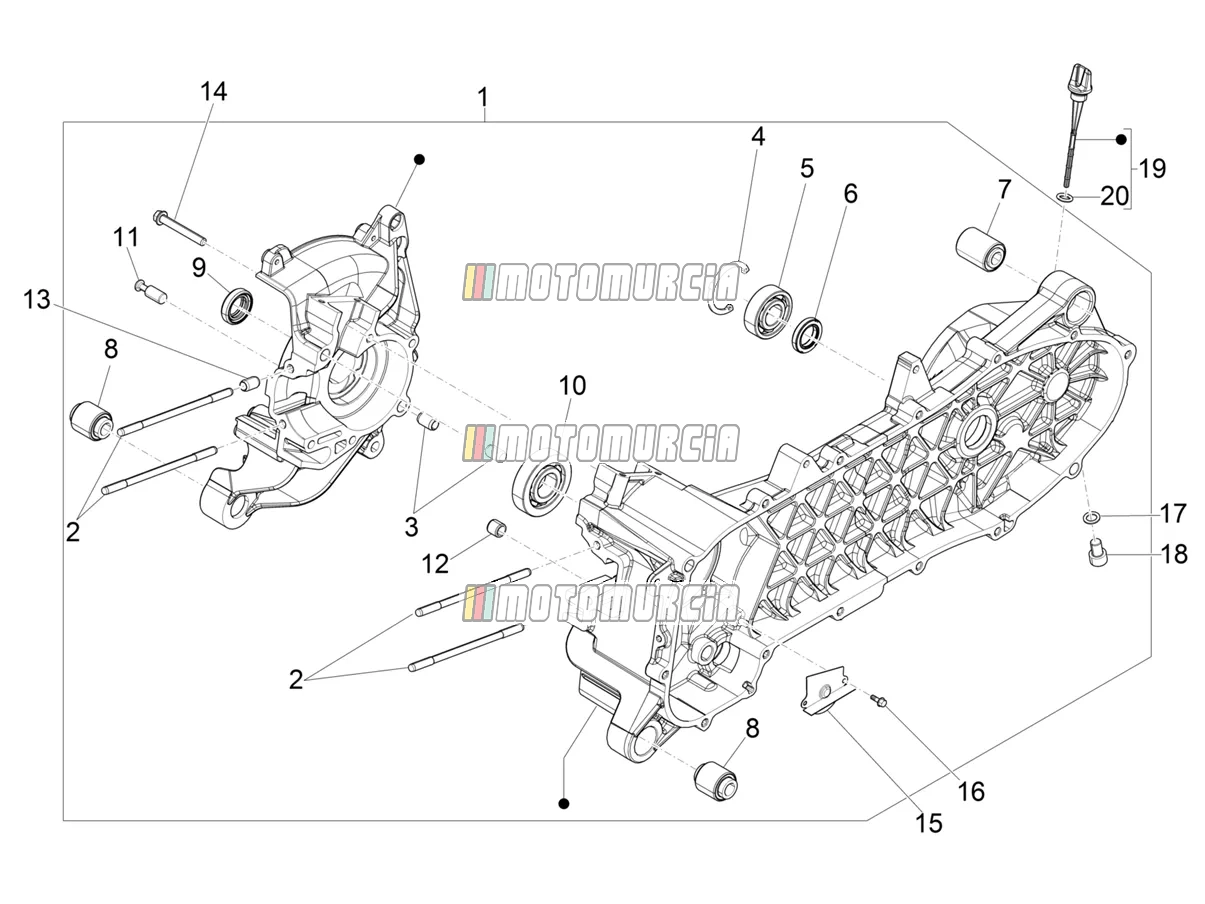

Exploded view — Crankcase

Products

1 Crankcase assembly Backorder 1A009077

•

  Crankshaft Housing Piaggio Group · 1A009077 Backorder

  € 841,58

  Add to cart

2 Stud bolt Available 842161

•

  Stud Screw Piaggio Group · 842161 · Quantity needed: 4 Available

  € 7,61

  Add to cart

3 Dowel pin Available 277916

•

  Adapter Sleeve Piaggio Group · 277916 · Quantity needed: 2 Available

  € 7,27

  Add to cart

4 Seeger Available 006647

•

  Circlip Ø 47,00 mm Piaggio Group · 006647 Available

  € 1,29

  Add to cart

5 Bearing Available 434735

•

  Wheel bearing 6204 2RSH, 20x47x14 mm Piaggio Group · 434735 Available

  € 18,77

  Add to cart

6 Gasket ring Available 478498

•

  Shaft Seal Piaggio Group · 478498 Available

  € 6,98

  Add to cart

7 Silentblock Available 666991

•

  Silentblock Piaggio Group · 666991 Available

  € 4,88

  Add to cart

8 Silentblock - engine mount Available 486081

•

  Silentblock Piaggio Group · 486081 · Quantity needed: 2 Available

  € 10,29

  Add to cart

9 Crankshaft oil seal Available 969028

•

  Shaft Seal 17x28x7 mm Piaggio Group · 969028 Available

  € 7,27

  Add to cart

10 Bearing Available 82671R

•

  Ball bearing TM-SC04C27/CS40, 20x60x13 mm Piaggio Group · 82671R Available

  € 36,89

  Add to cart

11 Springs fixing pin Available 483785

•

  Bolts Piaggio Group · 483785 Available

  € 5,78

  Add to cart

12 Bush Ø8xØ12x8 Available 431860

•

  Bronze Bushes 8x12x8 Piaggio Group · 431860 Available

  € 1,65

  Add to cart

13 Dowel pin Available B015956

•

  Adapter Sleeve 9,5x15 Piaggio Group · B015956 Available

  € 1,32

  Add to cart

14 Screw Available 478895

•

  Flanged Screw Piaggio Group · 478895 · Quantity needed: 10 Available

  € 2,77

  Add to cart

15 Oil bulhead Available 969625

•

  Oil Partition Plate Piaggio Group · 969625 Available

  € 7,32

  Add to cart

16 Screw Available 484123

•

  Flanged Screw Piaggio Group · 484123 · Quantity needed: 2 Available

  € 0,99

  Add to cart

17 Washer Available 485703

•

  Washer 8,2x12x1 mm Piaggio Group · 485703 Available

  € 1,25

  Add to cart

18 Screw Available 269755

•

  Screw M8x12 Piaggio Group · 269755 Available

  € 1,59

  Add to cart

19 Complete oil level dipstick Available 832130

•

  Oil dipstick Piaggio Group · 832130 Available

  € 6,34

  Add to cart

20 Gasket ring Available 827085

•

  Oil seal 14,43x9,19x2,62 mm Piaggio Group · 827085 Available

  € 0,99

  Add to cart
