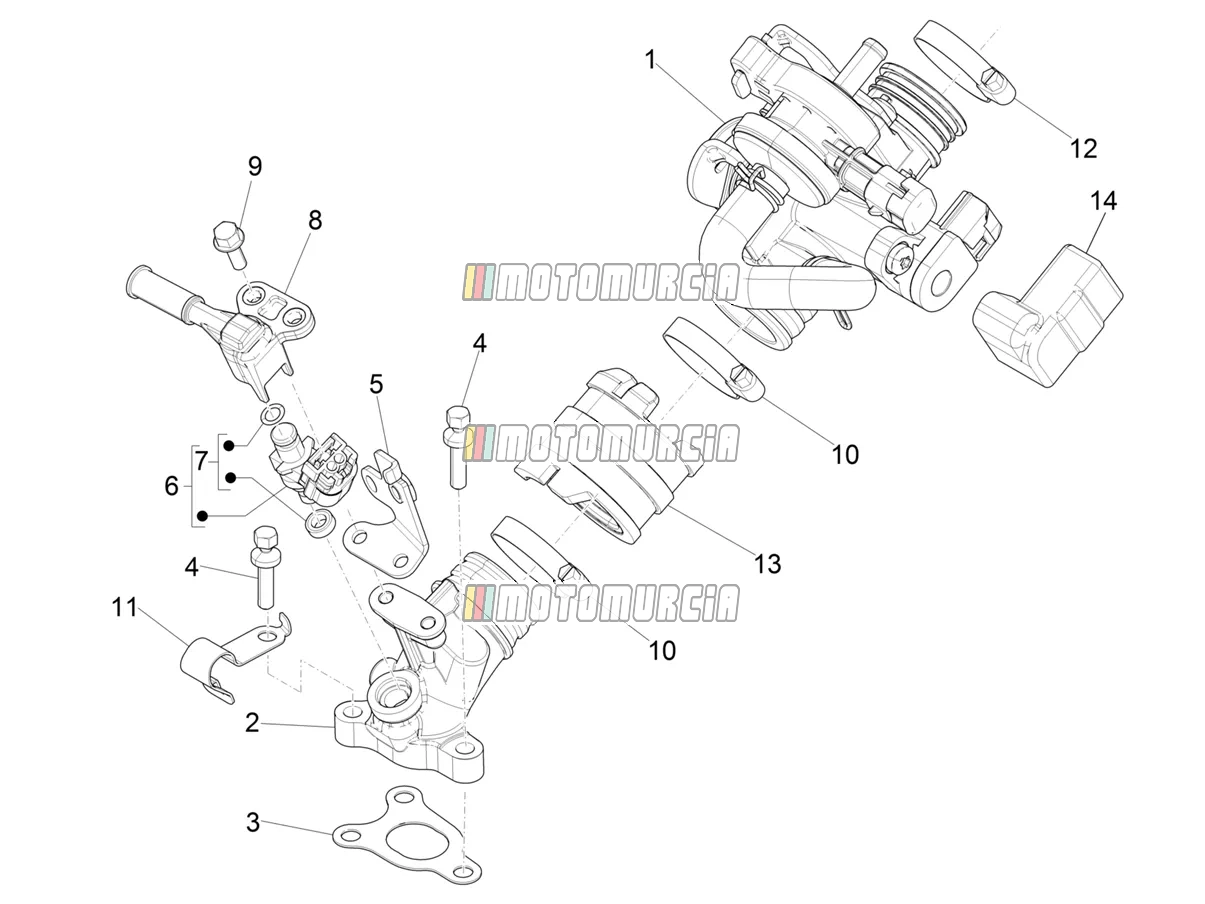

Exploded view — Throttle Body - Injector - Induction Joint

Products

1 Throttle body cpl. Ø22 Available 1A008305

•

  Throttle body Piaggio Group · 1A008305 Available

  € 320,59

  Add to cart

2 Union Available 1A009001

•

  Intake manifold Piaggio Group · 1A009001 Available

  € 15,56

  Add to cart

3 Intake manifold Gasket Available 1A003773

•

  Gasket Piaggio Group · 1A003773 Available

  € 4,62

  Add to cart

4 Self-Shearing screw 1A009552 No longer available

• 1A009552 Self-Shearing screw Quantity needed: 3
  No longer available

5 Fuel pipe support bracket Backorder 1B004790

•

  Bracket Piaggio Group · 1B004790 Backorder

  € 4,76

  Add to cart

6 Injector assy fuel Available 1D000698

•

  Injector Mount Piaggio Group · 1D000698 Available

  € 197,71

  Add to cart

7 Ring kit Available 1D001198

•

  O-ring Set for injection nozzle Piaggio Group · 1D001198 Available

  € 6,21

  Add to cart

8 Complete injector mount Available 1A003720

•

  Injector Mount complete, in conjunction with: 1A018850 Piaggio Group · 1A003720 Available

  € 14,44

  Add to cart

9 Screw Available 830061

•

  Flanged Screw M5x16 Piaggio Group · 830061 · Quantity needed: 2 Available

  € 2,77

  Add to cart

11 Strap Available 1A010189

•

  Clamp Piaggio Group · 1A010189 Available

  € 3,86

  Add to cart

12 Clamp Available 1A000833

•

  Clamp Piaggio Group · 1A000833 Available

  € 10,74

  Add to cart

13 Throttle body hose Available 1A004107

•

  Inlet pipe Piaggio Group · 1A004107 Available

  € 19,88

  Add to cart

14 Protective hood Available 1A007645

•

  Protection piece Piaggio Group · 1A007645 Available

  € 6,46

  Add to cart
