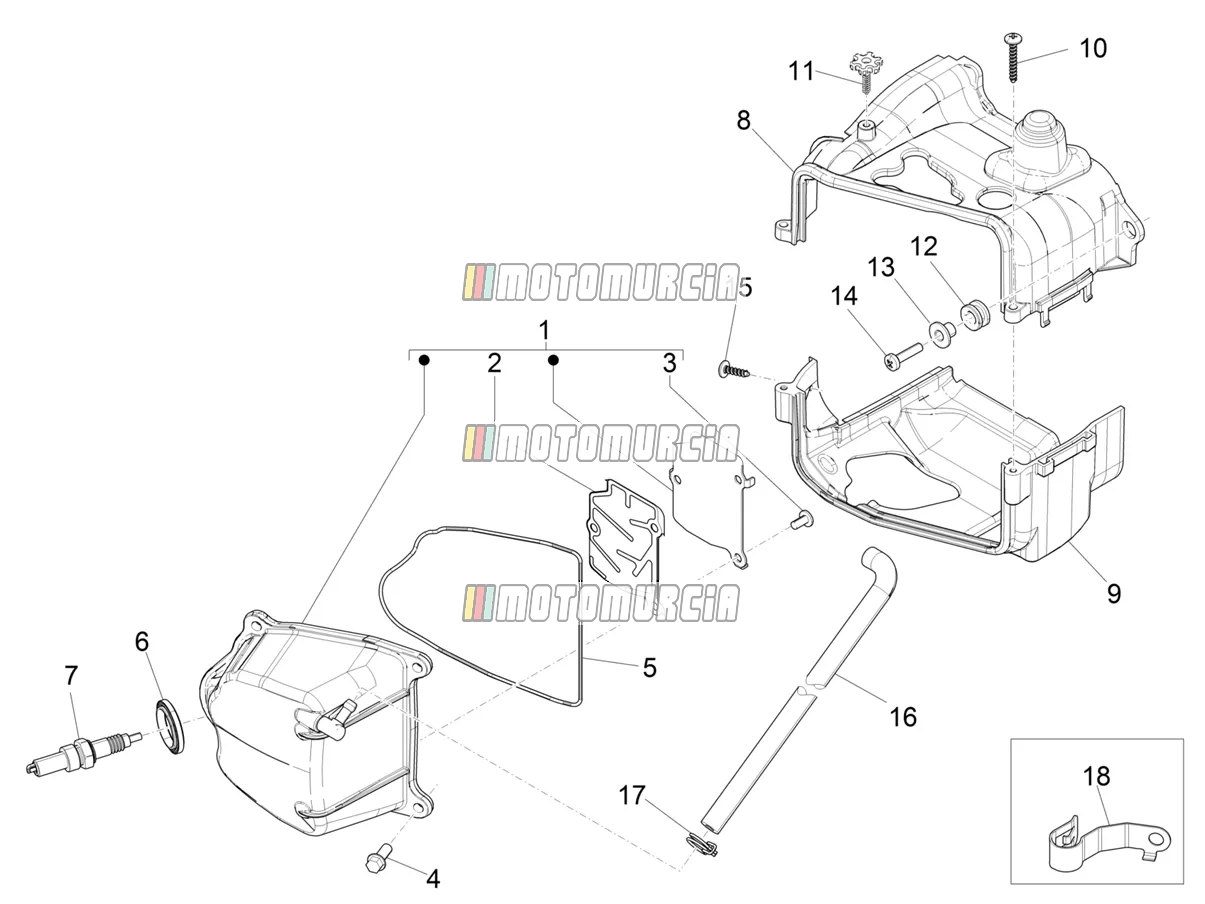

Exploded view — Cylinder Head Cover

‹ Back to model
Piaggio Zip 50 4T 2021 Piaggio Zip 50 4T 2021
Cylinder Head Cover

Products

1 Head cover Available 1A008608
  • Valve Cover Piaggio Group · 1A008608 Available
    € 36,01
  • 1A002284 Head cover cpl.
    No longer available
2 Gasket Available 849012
  • Gasket Piaggio Group · 849012 Available
    € 17,24
3 Screw Available 430264
4 Screw Available B016777
5 Gasket - head cover Available 1A000889
6 Gasket - spark plug Available B017488
7 Spark plug Available 1A010638
8 Cooler cap Available 1A004838
9 Cooler cap Available 1A002170
10 Screw Available 259577
  • Screw Piaggio Group · 259577 · Quantity needed: 2 Available
    € 1,26
11 Screw Available 969339
  • Screw Piaggio Group · 969339 Available
    € 2,27
12 Fairlead Available B014213
13 Spacer Available B014214
  • Spacer Piaggio Group · B014214 Available
    € 3,86
14 Screw Available 828662
  • Screw M5x22 Piaggio Group · 828662 Available
    € 1,52
15 Screw Available 270793
16 Oil breather pipe Available 1A008423
  • Breather Pipe Piaggio Group · 1A008423 Available
    € 19,59
17 Clamp Available CM002917
18 Strap Available 1A010188
  • Clamp Piaggio Group · 1A010188 Available
    € 3,04
