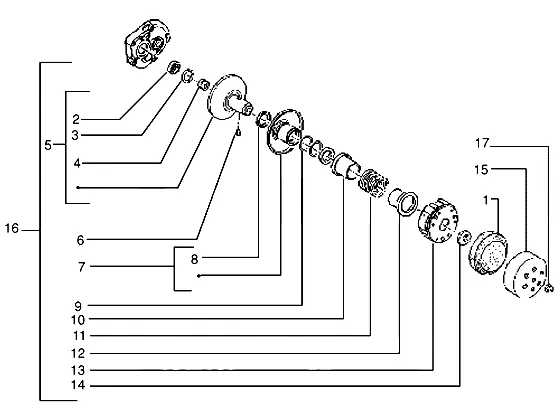

Exploded view — Driven Pulley

Products

1 Spacer 286182 No longer available

• 286182 Spacer
  No longer available

2 Bearing 285007 No longer available

• 285007 Bearing Quantity needed: 2
  No longer available

3 Cup 289184 No longer available

• 289184 Cup
  No longer available

4 Spacer 286183 No longer available

• 286183 Spacer
  No longer available

7 Pulley, half 287089 No longer available

• 287089 Pulley, half
  No longer available

8 Bush Available 2870886

•

  Gasket Piaggio Group · 2870886 Available

  € 145,71

  Add to cart

9 Guide roller 285358 No longer available

• 285358 Guide roller Quantity needed: 2
  No longer available

10 Pin 487155 No longer available

• 487155 Pin Quantity needed: 2
  No longer available

11 Ring 478269 No longer available

• 478269 Ring
  No longer available

12 Pulley, half 2896585 No longer available

• 2896585 Pulley, half
  No longer available

13 Gasket Available 289386

•

  Gasket Piaggio Group · 289386 Available

  € 0,99

  Add to cart

14 Spring seat Backorder 435317

•

  Spring Mount Piaggio Group · 435317 Backorder

  € 11,28

  Add to cart

15 Spring 435004 No longer available

• 435004 Spring
  No longer available
• 431132 Spring
  No longer available

16 Not available 287028 No longer available

• 287028 Not available
  No longer available

17 Washer Available 285019

•

  Shim Piaggio Group · 285019 Available

  € 2,20

  Add to cart

18 Nut Available 285017

•

  Standard nut Piaggio Group · 285017 Available

  € 7,64

  Add to cart

19 Pulley 478158 No longer available

• 478158 Pulley
  No longer available
• 4781405 Not available
  No longer available

20 O-Ring Available 430585

•

  Oil seal Piaggio Group · 430585 · Quantity needed: 2 Available

  € 1,32

  Add to cart

21 Drum 431640 No longer available

• 431640 Drum
  No longer available

22 Flanged nut M10x1,25 Available 289519

•

  Flywheel nut M10x1.25 Piaggio Group · 289519 Available

  € 1,52

  Add to cart
