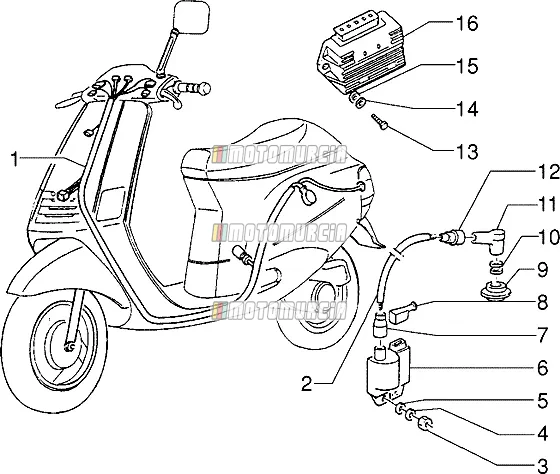

Exploded view — Electrical Devices

Products

1 Cable harn. 291919 No longer available

• 291919 Cable harn.
  No longer available
• 291996 Cable harn.
  No longer available
• 292814 Main wiring harness
  No longer available

2 H.V. cable Available 080341

•

  Ignition Lead Piaggio Group · 080341 Available · Shipped in 3–5 working days

  € 3,88

  Add to cart

3 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,88

  Add to cart

4 Washer (spring) Available 016405

•

  Spring Washer Piaggio Group · 016405 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

5 Washer Available 016686

• 016686 Washer Quantity needed: 2


  Washer Piaggio Group · 0166866 ↻ Replaces 016686, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,03

  Add to cart

6 HT coil Available 2921945

• 2921945 HT coil


  Ignition Coil Piaggio Group · 638678 ↻ Replaces 2921945, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 81,24

  Add to cart

7 Insulating cap Available 231571

•

  Cap Piaggio Group · 231571 Available · Shipped in 3–5 working days

  € 3,84

  Add to cart

8 Cap Available 255256

•

  Insulating Cover CDI Piaggio Group · 255256 Available · Shipped in 3–5 working days

  € 5,08

  Add to cart

9 Collar Available 288633

•

  Gasket Piaggio Group · 288633 Available · Shipped in 3–5 working days

  € 1,59

  Add to cart
• 292005 Spacer
  No longer available

10 Fairlead 114164 No longer available

• 114164 Fairlead
  No longer available

11 Spark plug cap Backorder 103936

•

  Spark Plug Connector Piaggio Group · 103936 Backorder · Shipped in 2–4 weeks

  € 10,59

  Add to cart
• 291941 Cap
  No longer available

12 Insulating cap Available 071671

•

  Cap Piaggio Group · 071671 Available · Shipped in 3–5 working days

  € 4,08

  Add to cart

13 Screw Available 015558

•

  Screw M16x16 Piaggio Group · 015558 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,45

  Add to cart

14 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,79

  Add to cart

15 Washer Available 003056

•

  Washer 6,4x12x1 mm Piaggio Group · 003056 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,84

  Add to cart

16 Voltage regulator Available 2940165

•

  Regulator Piaggio Group · 2940165 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 73,85

  Add to cart

  Alternatives from other brands

  RECTIFIER REGULATOR Athena · S410480401002 Backorder · Shipped in 2–5 weeks

  € 24,20

  Add to cart
