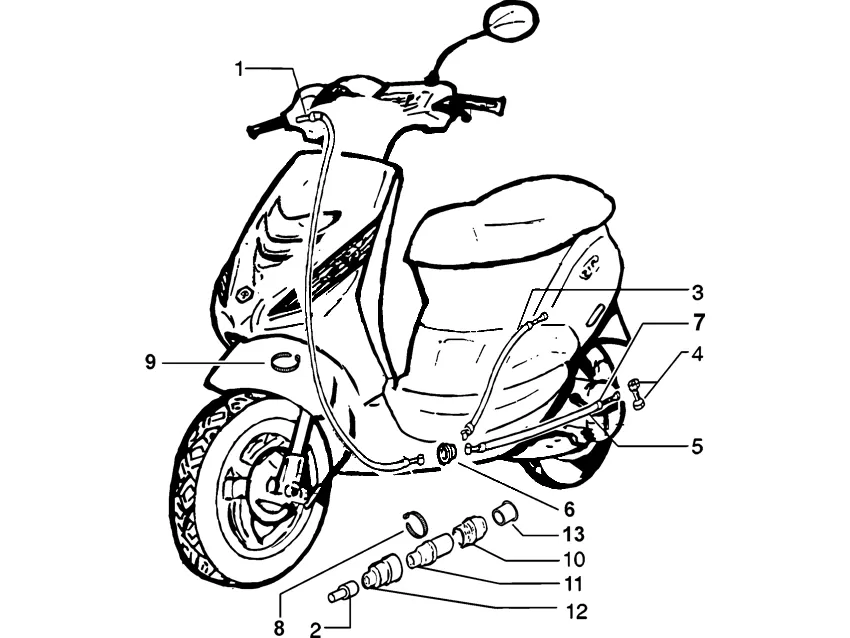

Exploded view — Transmissions

Products

1 Transmission Available 561149

•

  Throttle cable Piaggio Group · 561149 Available · Shipped in 3–5 working days

  € 14,56

  Add to cart

2 Steath ward trailing Available 269572

•

  Brass Sleeve Piaggio Group · 269572 Available · Shipped in 3–5 working days

  € 3,10

  Add to cart

3 Doub. carb. trans. Available 582256

• • CH version, free speed


  Throttle cable Piaggio Group · 582256 Available · Shipped in 3–5 working days

  € 28,68

  Add to cart

4 Bolt - cable adjuster Available 146197

•

  Adjustment Screw Piaggio Group · 146197 Available · Shipped in 3–5 working days

  € 1,88

  Add to cart

5 Doub. mixer trans. Available 560448

•

  Oil pump cable Piaggio Group · 560448 Available · Shipped in 3–5 working days

  € 5,70

  Add to cart

6 Fairlead Available 563989

• • Country: China


  Rubber bellows Piaggio Group · 563989 Available · Shipped in 3–5 working days

  € 2,46

  Add to cart

7 Guard Available 147511

•

  Sleeve Piaggio Group · 147511 Available · Shipped in 3–5 working days

  € 1,61

  Add to cart

8 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available · Shipped in 3–5 working days

  € 1,43

  Add to cart

9 Hose clamp Available 257134

• • Taiwan
  • iGET version


  Cable Ties length: 27,7cm Piaggio Group · 257134 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

10 Splitter lower protection Available 271976

•

  Rubber bellows Piaggio Group · 271976 Available · Shipped in 3–5 working days

  € 6,27

  Add to cart

11 Splitter Available 269571

•

  Cable splitter Piaggio Group · 269571 Available · Shipped in 3–5 working days

  € 16,20

  Add to cart

12 Splitter upper protection Available 271977

•

  Rubber bellows Piaggio Group · 271977 Available · Shipped in 3–5 working days

  € 6,46

  Add to cart

13 Fairlead Available 188761

•

  Cable Guide Piaggio Group · 188761 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart
