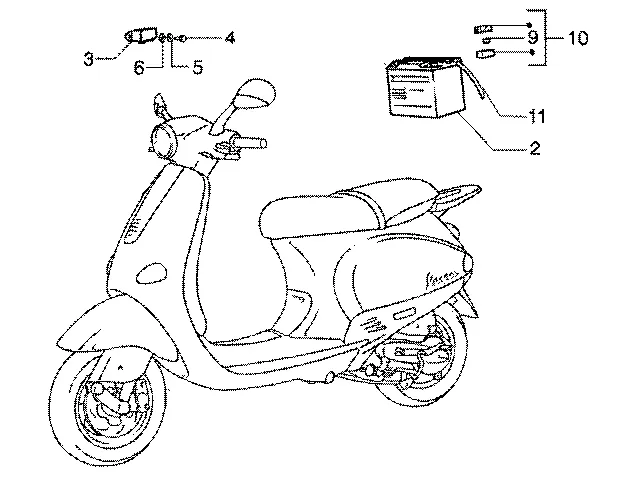

Exploded view — Electrical Device

‹ Back to model

Electrical Device

Products

2 Battery Available 584810

Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 Available

€ 81,88
Batterie YTX9-BS, 12 V, 8 A, Maintenance-Free / MF, 150x87x105 mm Piaggio Group · 498239 Available

€ 145,97
2188235 Battery
No longer available

3 Relay - starter Available 58115R

Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

€ 24,91

4 Screw Available 015558

Screw M16x16 Piaggio Group · 015558 Available

€ 1,45

5 Washer Available 016406

Washer 6,4x11,8x1 mm Piaggio Group · 016406 Available

€ 1,79

6 Washer Available 003056

Washer 6,4x12x1 mm Piaggio Group · 003056 Available

€ 1,84

9 Fuse (7,5A) Available 252945

Fuse 7,5 A Piaggio Group · 252945 · Quantity needed: 2 Available

€ 2,86

10 Fuse holder Available 290402

Fuse Box Piaggio Group · 290402 · Quantity needed: 2 Available

€ 10,93
Fuse Box Piaggio Group · 580653 · Quantity needed: 2 Available

€ 14,21

11 Breather pipe Backorder 580075

Breather Pipe Piaggio Group · 580075 Backorder

€ 11,25
