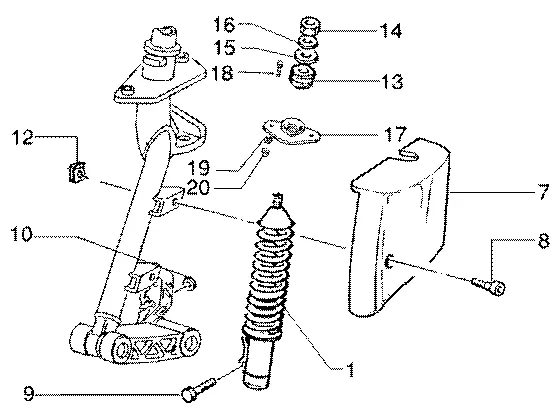

Exploded view — Fr Damper Cover

‹ Back to model

Fr Damper Cover

Products

1 Complete front fork Available 598922

Shocks front Piaggio Group · 598922 Available

€ 183,24

7 Tyre 82170000D8 No longer available

82170000D8 Tyre
No longer available
Swing Arm Cover, primed Piaggio Group · 8217005 Available

€ 57,75
82170050C1 Tyre
No longer available
82170050VA Tyre
No longer available
82170000V9 Tyre
No longer available
Swing Arm Cover, silver, Suffix: 95_silver moonlight 729 Piaggio Group · 8217005095 Backorder

€ 86,87
82170000P1 Tyre
No longer available
82170000AA Tyre
No longer available
82170050V3 Tyre
No longer available
82170000V8 Tyre
No longer available
8217005041 Tyre
No longer available
82170050R7 Tyre
No longer available
82170050V6 Tyre
No longer available
8217005087 Tyre
No longer available
8217005060 Tyre
No longer available
82170050D1 Tyre
No longer available
Swing Arm Cover, silver, Suffix: A7_silver platinum 686 Piaggio Group · 82170050A7 Backorder

€ 86,87
8217005090 Tyre
No longer available
82170050G5 Tyre
No longer available

8 Screw (M6x16) Available 575249

Screw M6 Piaggio Group · 575249 Available

€ 0,99

9 Screw Available 149104

Allen screw M8x40 Piaggio Group · 149104 · Quantity needed: 2 Available

€ 1,75

12 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 Available

€ 2,04

13 Pad Available 216209

Buffer Piaggio Group · 216209 · Quantity needed: 2 Available

€ 2,35

14 Nut Available 021210

Standard nut Piaggio Group · 021210 Available

€ 2,15

15 Washer Available 174088

Washer Piaggio Group · 174088 Available

€ 1,82

16 Washer Available 012535

Washer Piaggio Group · 012535 Available

€ 1,52

17 Bracket Available 562305

Bracket Piaggio Group · 562305 Available

€ 13,77

18 Screw Available 031120

Screw Piaggio Group · 031120 · Quantity needed: 2 Available

€ 0,99

19 Washer (spring) Available 016408

Spring Washer 13,75x8,15x4,5 mm Piaggio Group · 016408 · Quantity needed: 2 Available

€ 1,84

20 Nut Available 020108

Standard nut Piaggio Group · 020108 · Quantity needed: 2 Available

€ 0,99
