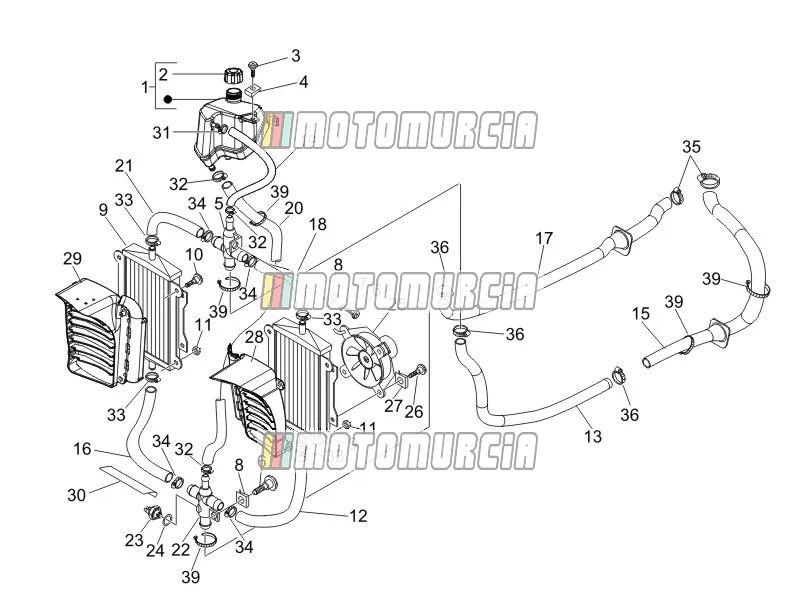

Exploded view — Cooling System

‹ Back to model
Cooling System

Products

1 Coolant tank Available 657111
  • Coolant Reservoir Piaggio Group · 657111 Available · Shipped in 3–5 working days
    € 74,50
2 Tank cap Available 623673
  • Tank Cap Piaggio Group · 623673 Available · Shipped in 3–5 working days
    € 19,66
3 Screw (6 mm) Available 257404
  • Screw Piaggio Group · 257404 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 1,45
4 Clip nuts (M6) Available 254485
    • Year of manufacture: 2012
    • Year of manufacture: 2013
    Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days
    € 2,04
5 Joint Available 577195
  • Connecting Piece Piaggio Group · 577195 Available · Shipped in 3–5 working days
    € 10,22
6 Screw (M6x16) Available 575249
  • Screw M6 Piaggio Group · 575249 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
7 Washer Available 709047
    • Country: Indonesia
    Washer Piaggio Group · 709047 Available · Shipped in 3–5 working days
    € 0,99
9 Radiator - water cooler Available 577183
  • Radiator Piaggio Group · 577183 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 305,62
10 Screw Available 270793
    • No ABS
    Screw 3,8x16 mm Piaggio Group · 270793 · Quantity needed: 2 Available · Shipped in 3–5 working days
    € 0,99
11 Nut Available 288245
    • Taiwan version
    Collar nut M6 Piaggio Group · 288245 · Quantity needed: 6 Available · Shipped in 3–5 working days
    € 0,99
12 Lower joint-left radiator connection pipe Available 57313R
  • Radiator hose, left Piaggio Group · 57313R Available · Shipped in 3–5 working days
    € 23,06
13 HOSE (ENGINE DELIVER/FRONT) Backorder 57333R
  • Radiator hose Piaggio Group · 57333R Backorder · Shipped in 2–4 weeks
    € 61,53
15 Head coupling tube Available 653501
  • Radiator hose Piaggio Group · 653501 Available · Shipped in 3–5 working days
    € 57,22
16 Lower joint-right radiator connection pipe Available 577201
  • Radiator hose, right Piaggio Group · 577201 Available · Shipped in 3–5 working days
    € 23,06
17 Pipe 577205 No longer available
  • 577205 Pipe
    No longer available
18 Pipe Available 577384
  • Radiator hose Piaggio Group · 577384 Available · Shipped in 3–5 working days
    € 20,62
19 Pipe Available 577433
  • Pipe Piaggio Group · 577433 Available · Shipped in 3–5 working days
    € 15,74
20 Pipe Available 57314R
  • Radiator hose Piaggio Group · 57314R Available · Shipped in 3–5 working days
    € 23,64
21 Pipe Available 623013
  • Pipe Piaggio Group · 623013 Available · Shipped in 3–5 working days
    € 15,19
22 Joint 577196 No longer available
  • 577196 Joint
    No longer available
23 Water temperature switch Available 584676
  • Temperature probe Piaggio Group · 584676 Available · Shipped in 3–5 working days
    € 32,22
24 Copper gasket Available 168077
  • Copper Flange Gasket Piaggio Group · 168077 Available · Shipped in 3–5 working days
    € 5,63
25 Fan engine Available 584669
  • Fan Piaggio Group · 584669 Available · Shipped in 3–5 working days
    € 199,14
26 Screw Available 272836
    • Country: United States of America
    Screw M6x16 Piaggio Group · 272836 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 1,39
28 Left air duct Available 577187
  • Air Intake, left Piaggio Group · 577187 Available · Shipped in 3–5 working days
    € 14,75
29 Air deflector Available 577184
  • Air Intake, right Piaggio Group · 577184 Available · Shipped in 3–5 working days
    € 14,75
30 Guard Available 583282
  • Protection piece Piaggio Group · 583282 Available · Shipped in 3–5 working days
    € 6,91
31 Clamp Available CM001903
    • Country: Taiwan
    Hose Clamp Piaggio Group · CM001903 Available · Shipped in 3–5 working days
    € 2,18
32 Clamp Available CM001904
  • Clamp Piaggio Group · CM001904 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 1,72
33 Clamp Available CM001905
    • Carburettor version (C364M)
    Hose Clamp Piaggio Group · CM001905 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 1,82
34 Clamp Available CM001907
  • Hose Clamp Piaggio Group · CM001907 · Quantity needed: 4 Available · Shipped in 3–5 working days
    € 2,19
35 Clamp Available CM001908
    • 250 cc version (M361M)
    Hose Clamp Piaggio Group · CM001908 Available · Shipped in 3–5 working days
    € 2,35
36 Clamp Available CM001915
  • Clamp Piaggio Group · CM001915 · Quantity needed: 3 Available · Shipped in 3–5 working days
    € 2,27
39 Lock-strap L=180mm Available 145298
