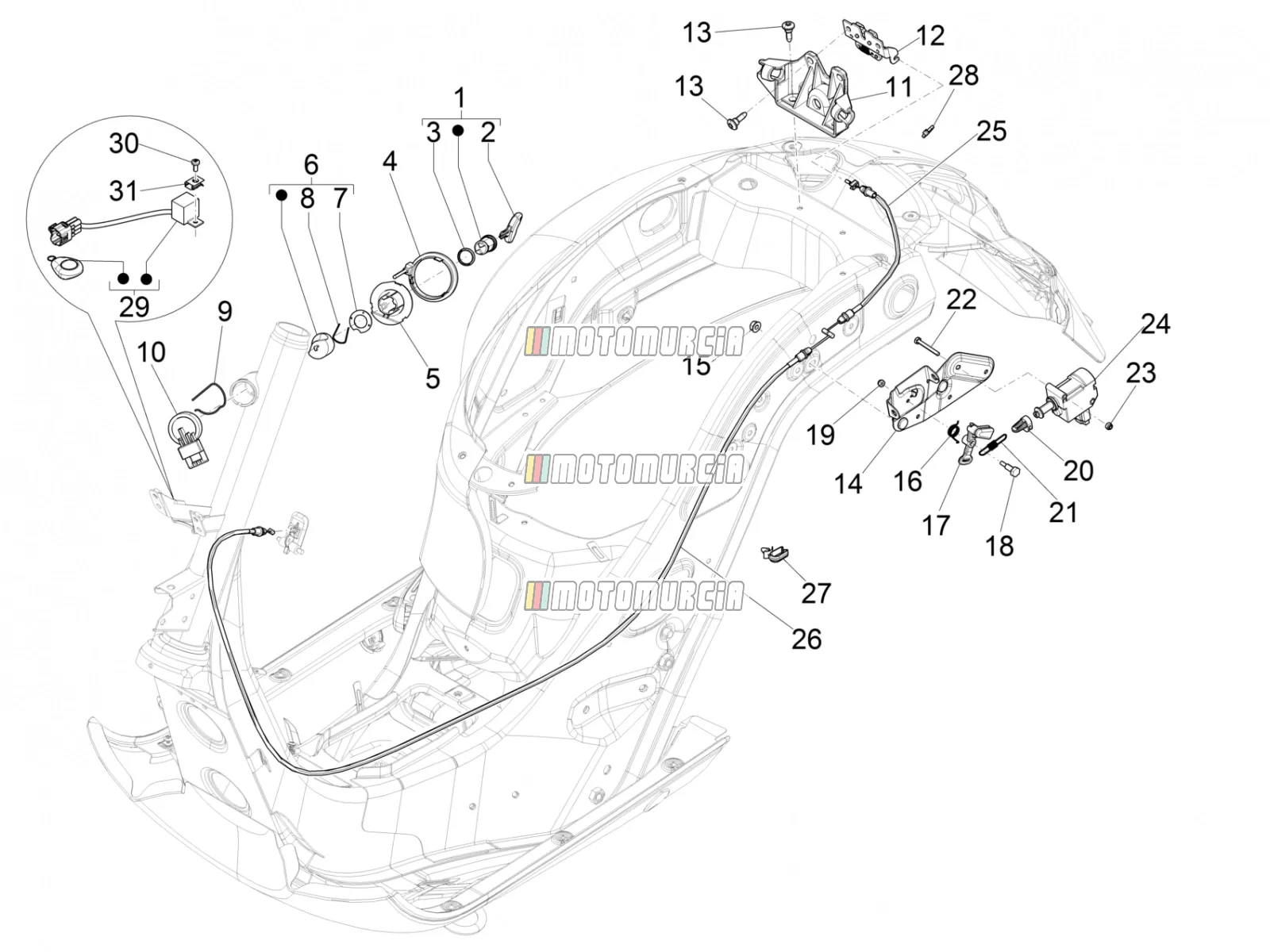

Exploded view — Locks

Products

1 Lock kit Available 1B009662R

•

  Lock Set, with master key and code card Piaggio Group · 1B009662R Available

  € 78,41

  Add to cart

2 Key blank Available 1B004020

•

  Key Blank with Transponder, 2016> blue Piaggio Group · 1B004020 Available

  € 90,16

  Add to cart

3 Gasket ring Available 298731

•

  Oil seal Piaggio Group · 298731 Available

  € 1,29

  Add to cart

4 Immobilizer antenna 1D001775R No longer available

• 1D001775R Immobilizer antenna
  No longer available

5 Lock body Available 1B001876

•

  Lock Housing Piaggio Group · 1B001876 Available

  € 17,07

  Add to cart

6 Complete lock block Available 1B006291

•

  Lock Bolt Piaggio Group · 1B006291 Available

  € 33,92

  Add to cart

7 Flat washer Available 298594

•

  Washer Piaggio Group · 298594 Available

  € 1,80

  Add to cart

8 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available

  € 2,26

  Add to cart

9 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available

  € 2,77

  Add to cart

10 Key switch Available 1D001338

•

  Ignition switch Piaggio Group · 1D001338 Available

  € 22,31

  Add to cart

11 Bracket Backorder 577456

•

  Lock Mounting Piaggio Group · 577456 Backorder

  € 16,14

  Add to cart

12 Lock Available CM023703

•

  Lock cylinder Piaggio Group · CM023703 Available

  € 36,19

  Add to cart

13 Screw Available CM179201

•

  Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 4 Available

  € 0,99

  Add to cart

14 Plate Available 577471

•

  Bracket Piaggio Group · 577471 Available

  € 17,96

  Add to cart

15 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 2 Available

  € 0,99

  Add to cart

16 Spring Available 577131

•

  Spring Piaggio Group · 577131 Available

  € 4,19

  Add to cart

17 Lever Available 577129

•

  Lever Piaggio Group · 577129 Available

  € 7,03

  Add to cart

18 Screw Available 299972

•

  Screw M4 Piaggio Group · 299972 Available

  € 1,43

  Add to cart

20 Joint Available 577128

•

  Universal Joint Piaggio Group · 577128 Available

  € 4,59

  Add to cart

21 Spring Available 620415

•

  Spring Piaggio Group · 620415 Available

  € 6,12

  Add to cart

22 Screw Available 584121

•

  Hexagon Screw Piaggio Group · 584121 · Quantity needed: 2 Available

  € 11,85

  Add to cart

23 Nut Available 577620

•

  Standard nut Piaggio Group · 577620 · Quantity needed: 2 Available

  € 1,26

  Add to cart

24 Solenoid valve Available 1D002276R

•

  Actuator Piaggio Group · 1D002276R Available

  € 71,33

  Add to cart

25 Saddle cable Available CM012811

•

  Seat release cable rear Piaggio Group · CM012811 Available

  € 14,79

  Add to cart

26 Seat emergency opening transmission Available CM012813

•

  Seat release cable for emergency opening, front Piaggio Group · CM012813 Available

  € 18,22

  Add to cart

27 Spring 217280 No longer available

• 217280 Spring
  No longer available

28 Clamp Available 191117

•

  Clamp Piaggio Group · 191117 Available

  € 1,45

  Add to cart

29 Bike finder 1D0012235 No longer available

• 1D0012235 Bike finder
  No longer available

30 Screw (4.2 x 16) Available CM178601

•

  Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 Available

  € 1,45

  Add to cart

31 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart
