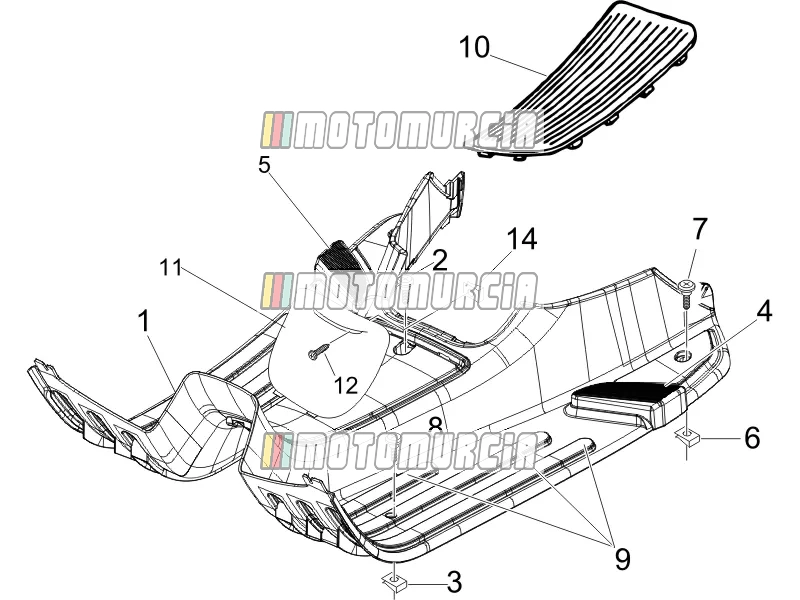

Exploded view — Central Cover - Footrests

‹ Back to model

Central Cover - Footrests

Products

1 Footrest 62212440M4 No longer available

62212440M4 Footrest
No longer available
Footwell Cover, white, Suffix: BR_white montebianco / innocenza /544 Piaggio Group · 62212440BR Available

€ 196,29
62212440DE Painted footrest
No longer available
Footwell Cover, silver, Suffix: EU_grey pulsar 711/B Piaggio Group · 62212440EU Available

€ 221,51
6221244087 FOOTBOARD ET4
No longer available
62212440AH Footrest
No longer available
Footwell Cover, black, Suffix: XN2_black cosmos / vulcano / 98/A Piaggio Group · 62212440XN2 Available

€ 196,29
62212440F2 Footrest
No longer available
6221244 Footrest
No longer available
62212440R7 Painted footrest
No longer available
62212440VG Footrest
No longer available
Footwell Cover, black, Suffix: ND_black graphite 79/A Piaggio Group · 62212440ND Available

€ 196,29
Footwell Cover, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62212440GP Available

€ 196,29
62212440F3 Footrest
No longer available

2 Screw Available 259349

Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 2 Available

€ 0,99

3 Clip nuts Available CM017406

Sheet nut Piaggio Group · CM017406 · Quantity needed: 2 Available

€ 1,22

4 Footrest Left Available 622125

Footrest left Piaggio Group · 622125 Available

€ 13,50

5 Footrest Right Available 622126

Footrest right Piaggio Group · 622126 Available

€ 13,50

6 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

€ 2,04

7 Screw Available 271891

Screw M6x30 Piaggio Group · 271891 · Quantity needed: 2 Available

€ 1,59

8 Screw Available 297498

Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 4 Available

€ 0,99

9 Kit strips, footboard Available 65712645

Foot Board Strips Set Piaggio Group · 65712645 Available

€ 32,45

10 Mat 298243 No longer available

298243 Mat
No longer available

11 Painted spark plug inspection cover Available 62213660ND

Inspection Cover, black, Suffix: ND_black graphite 79/A Piaggio Group · 62213660ND Available

€ 54,91
Inspection Cover, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62213650GP Backorder

€ 52,16
62213650VG Spark plug insp. door
No longer available
62213650R7 Painted spark plug inspection cover
No longer available
62213660AF S.PLUG DOOR -UNPAINTED-
No longer available
62213660F2 Flap
No longer available
Inspection Cover, violet, Suffix: F3_violet plum 146 Piaggio Group · 62213660F3 Backorder

€ 52,16
62213660R7 DOORS
No longer available
Inspection Cover, primed Piaggio Group · 6221366 Available

€ 89,79
62213650DE Painted spark plug inspection cover
No longer available

12 Screw Available 015911

Sheet Metal Screw 4,2x16 mm Piaggio Group · 015911 Available

€ 1,44

14 Clip nuts Available CM017408

Sheet nut Piaggio Group · CM017408 Available

€ 0,99
