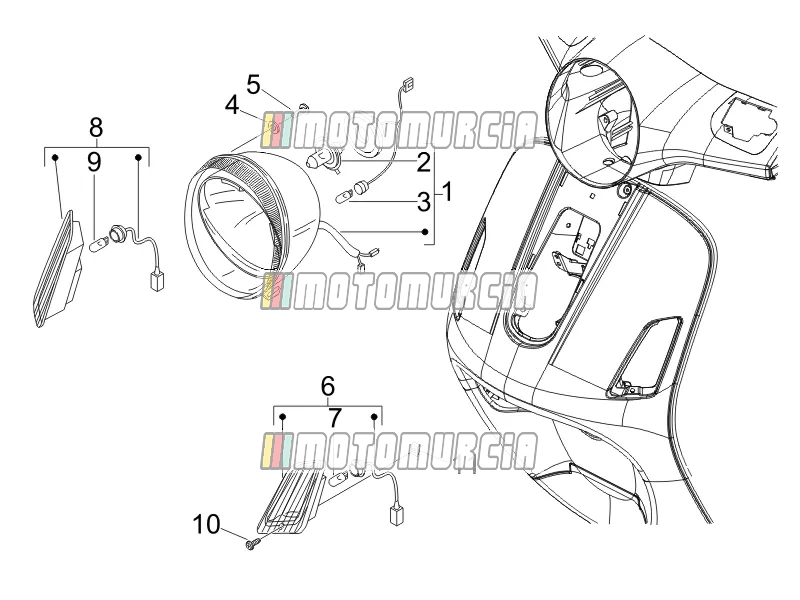

Exploded view — Front Headlamps - Turn Signal Lamps

‹ Back to model

Front Headlamps - Turn Signal Lamps

Products

1 Headlight Available 58259R

Head Lights without bulb Piaggio Group · 58259R Available

€ 183,68

2 Bulb (BA20D 12V 35/35W) Available 219528

Bulbs Bulb, 12 V, 35/35 W, BA20d Piaggio Group · 219528 Available

€ 10,09

3 Bulb (12V 5W T10) Available 2920225

Bulbs Bulb, 12 V, 5 W, wedge base Piaggio Group · 2920225 Available

€ 3,42

4 Washer Available 006965

Washer Piaggio Group · 006965 · Quantity needed: 4 Available

€ 0,99

5 Screw Available 1A003109

Screw M5x16 Piaggio Group · 1A003109 · Quantity needed: 4 Available

€ 1,45

6 Front left turn indicator Available 58174R

Indicator front, left Piaggio Group · 58174R Available

€ 43,79

7 Bulb (12V 10W BAU15S) Available 584332

Bulbs Bulb, 12 V, 10 W, orange Piaggio Group · 584332 Available

€ 4,79

8 Front right turn indicator Available 58175R

Indicator front, right Piaggio Group · 58175R Available

€ 43,79

10 Screw Available 008457

Thread Screw 4,2x19 mm Piaggio Group · 008457 · Quantity needed: 2 Available

€ 1,59

11 Clip nuts Available CM017406

Sheet nut Piaggio Group · CM017406 · Quantity needed: 2 Available

€ 1,22
