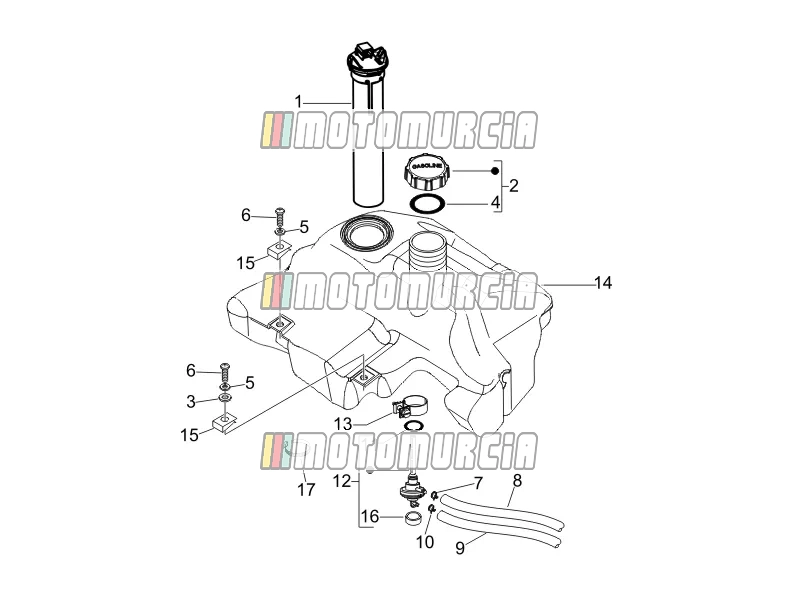

Exploded view — Fuel Tank

Products

1 Fuel level gauge Available CM025702

•

  Petrol Guage Piaggio Group · CM025702 Available

  € 115,53

  Add to cart

2 Plug Available 259832

•

  Tank Cap Piaggio Group · 259832 Available

  € 11,42

  Add to cart

3 Washer Available 013880

•

  Washer 6,5x16x1,5 mm Piaggio Group · 013880 Available

  € 0,99

  Add to cart

4 Tank cover gasket Available 258160

•

  Filler cap seal Piaggio Group · 258160 Available

  € 5,38

  Add to cart

5 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 3 Available

  € 1,79

  Add to cart

6 Screw Available 031091

•

  Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 3 Available

  € 0,99

  Add to cart

7 Clamp Available CM002904

•

  Clamping Spring Piaggio Group · CM002904 Available

  € 0,99

  Add to cart

8 Pipe 4x9x350 Available CM006116

•

  Petrol Hose 4x9 mm, length: 35,0cm, blue Piaggio Group · CM006116 Available

  € 15,63

  Add to cart

9 Tank pipe Available CM0012096

•

  Petrol pipe Piaggio Group · CM0012096 Available

  € 21,59

  Add to cart

10 Clamp Available CM002901

•

  Clamping Spring Piaggio Group · CM002901 Available

  € 0,99

  Add to cart

11 O-Ring Available 196868

•

  Gasket Piaggio Group · 196868 Available

  € 3,36

  Add to cart

12 Fuel tap Available 674594

•

  Petrol Tap Piaggio Group · 674594 Available

  € 20,74

  Add to cart

13 Clamp Available 879888

•

  Clamp Piaggio Group · 879888 Available

  € 8,91

  Add to cart

14 Fuel tank Available 622834

•

  Petrol Tank Piaggio Group · 622834 Available

  € 193,94

  Add to cart

15 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

16 Cover Available 090958

•

  Plug Piaggio Group · 090958 Available

  € 1,83

  Add to cart

17 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart
