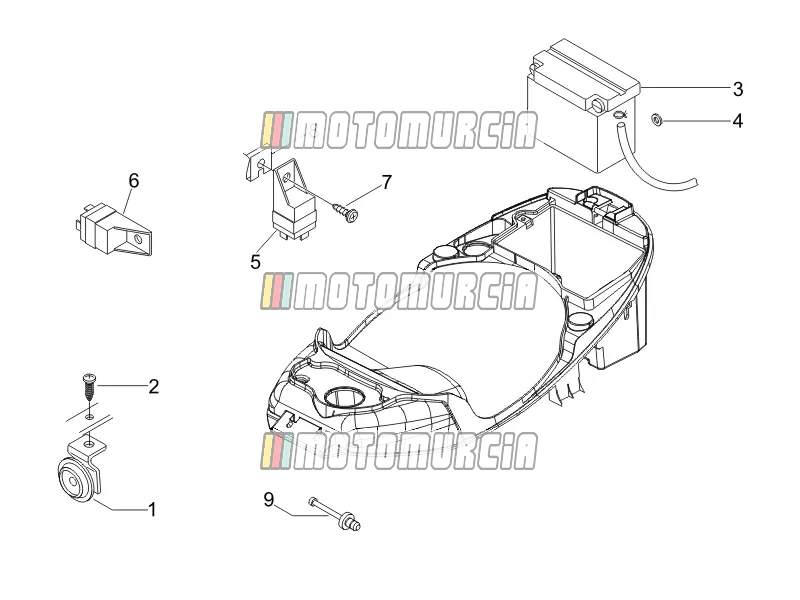

Remote Control Switches - Battery - Horn

Products

1 Horn Available 1D000636

Horn (TWN) Piaggio Group · 1D000636 Available

€ 47,12

2 Screw Available B016777

Flanged Screw M6x16 Piaggio Group · B016777 Available

€ 1,48

3 Battery Available 1R000318

1R000318 Battery

Batterie PTX12-BS, 12 V, 10 A, Maintenance-Free / MF, with acid pack, 150x87x130 mm Piaggio Group · 1R000318 Available

€ 101,79

Battery Piaggio Group · 1R000318 Available

€ 101,79
Batterie YTX12-BS, 12 V, 10 A, Maintenance-Free / MF, 150x87x130 mm Piaggio Group · 583158 Available

€ 144,90

4 Washer Available 016406

Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 2 Available

€ 1,79

5 Relay - starter (12V 30A) Available 58246R

Ignition Relay 12 V, 30 A Piaggio Group · 58246R Available

€ 9,60

6 Relay - starter Available 58115R

Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

€ 24,91

7 Screw Available 259349

Screw 4,2x13 mm Piaggio Group · 259349 Available

€ 0,99

8 Clip nuts Available CM017409

Sheet nut Piaggio Group · CM017409 Available

€ 1,48

9 Ambient temperature sensor Available 581142

Air temperature probe Piaggio Group · 581142 Available

€ 33,66
