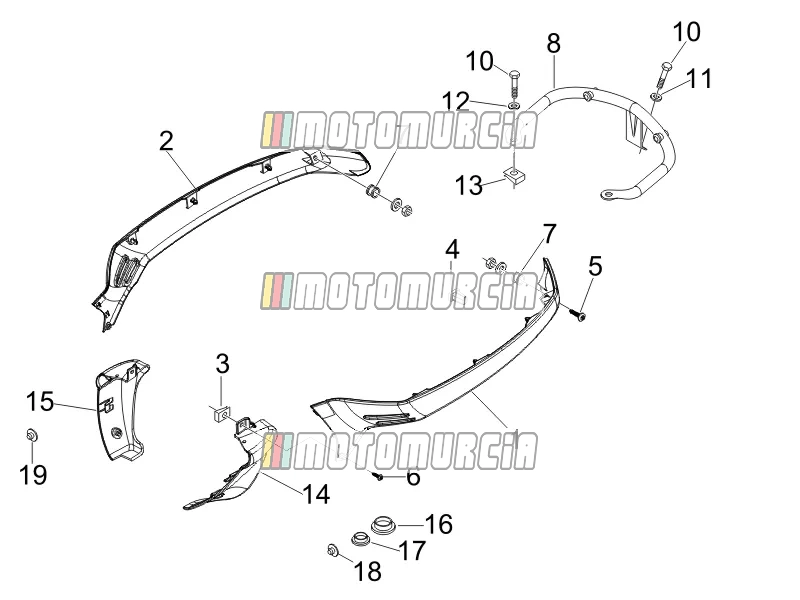

Exploded view — Side Cover - Spoiler

‹ Back to model

Side Cover - Spoiler

Products

Position: 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19

1 Left lower fairing Backorder 62212740AH

Side Fairing, left, blue, Suffix: AH_blue capri 231/A Piaggio Group · 62212740AH Backorder

€ 124,98
62212740F3 Left lower fairing
No longer available
Side Fairing, left, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 62212740DE Backorder

€ 124,98
62212740AF Left lower fairing
No longer available
6221274087 Left lower fairing
No longer available
62212740EU Left lower fairing
No longer available
Side Fairing, left, black, Suffix: ND_black graphite 79/A Piaggio Group · 62212740ND Available

€ 156,22
62212740BR Left lower fairing
No longer available
Side Fairing, left, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62212740GP Backorder

€ 27,83
62212740F2 Left lower fairing
No longer available
62212700F3 LOWER LEFT FAIRING
No longer available
Side Fairing, left, green, Suffix: VG_green portofino 305/A Piaggio Group · 62212740VG Backorder

€ 89,25
62212740M4 Left lower fairing
No longer available
Side Fairing, left, black, Suffix: XN2_black cosmos / vulcano / 98/A Piaggio Group · 62212740XN2 Backorder

€ 89,25
Side Fairing, left, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 62212740R7 Available

€ 156,22

2 Right lower fairing Backorder 62212840GP

Side Fairing, right, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62212840GP Backorder

€ 27,83
Side Fairing, right, blue, Suffix: AF_sky blue 424/A Piaggio Group · 62212840AF Backorder

€ 124,98
62212800F3 LOWER RIGHT FAIRING
No longer available
62212840M4 Right lower fairing
No longer available
Side Fairing, right, blue, Suffix: AH_blue capri 231/A Piaggio Group · 62212840AH Backorder

€ 124,98
Side Fairing, right, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 62212840DE Available

€ 124,98
6221284087 Right lower fairing
No longer available
Side Fairing, right, black, Suffix: XN2_black cosmos / vulcano / 98/A Piaggio Group · 62212840XN2 Available

€ 124,98
62212800DE LOWER RIGHT FAIRING
No longer available
Side Fairing, right, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 62212840R7 Available

€ 93,94
Side Fairing, right, black, Suffix: ND_black graphite 79/A Piaggio Group · 62212840ND Available

€ 124,98
62212840VG Right lower fairing
No longer available
62212840F3 Right lower fairing
No longer available
Side Fairing, right, silver, Suffix: EU_grey pulsar 711/B Piaggio Group · 62212840EU Available

€ 124,98
62212840F2 Right lower fairing
No longer available
Side Fairing, right, white, Suffix: BR_white montebianco / innocenza /544 Piaggio Group · 62212840BR Available

€ 124,98

3 Clip nuts Available CM017410

Sheet nut Piaggio Group · CM017410 Available

€ 0,99

4 Expansion plug Available 199190

Expansion Anchor white, quadrangular Piaggio Group · 199190 · Quantity needed: 2 Available

€ 0,99

5 Screw Available 259349

Screw 4,2x13 mm Piaggio Group · 259349 · Quantity needed: 3 Available

€ 0,99

6 Screw Available 297498

Sheet Metal Screw Piaggio Group · 297498 Available

€ 0,99

7 Elastic drift Available 1B000888

Buffer Piaggio Group · 1B000888 · Quantity needed: 4 Available

€ 3,84

8 Handle Available 657109

Grab Handle Piaggio Group · 657109 Available

€ 238,37

10 Screw Available 031091

Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 4 Available

€ 0,99

11 Washer Available 012533

Washer 6,6x11 mm Piaggio Group · 012533 · Quantity needed: 2 Available

€ 1,45

12 Washer Available 078307

Washer Piaggio Group · 078307 · Quantity needed: 2 Available

€ 1,37

13 Clip nuts (M6) Available 254485

Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

€ 2,04

14 Left spoiler rear terminal 62212940F3 No longer available

62212940F3 Left spoiler rear terminal
No longer available
Lid, left, green, Suffix: VG_green portofino 305/A Piaggio Group · 62212940VG Backorder

€ 52,27
62212900F3 LEFT TERMINAL SPOILER
No longer available
62212940XN2 Left spoiler rear terminal
No longer available
62212940ND Left spoiler rear terminal
No longer available
62212940DE Left spoiler rear terminal
No longer available
Lid, left, blue, Suffix: AF_sky blue 424/A Piaggio Group · 62212940AF Available

€ 50,82
62212940F2 Left spoiler rear terminal
No longer available
Lid, left, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62212940GP Backorder

€ 52,27
Lid, left, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 62212940R7 Available

€ 65,34
Lid, left, blue, Suffix: AH_blue capri 231/A Piaggio Group · 62212940AH Backorder

€ 52,27
Lid, left, silver, Suffix: EU_grey pulsar 711/B Piaggio Group · 62212940EU Backorder

€ 52,27
62212940BR Left spoiler rear terminal
No longer available
Lid, left, beige, Suffix: M4_beige sienna 552 Piaggio Group · 62212940M4 Backorder

€ 9,68
6221294087 Left spoiler rear terminal
No longer available

15 Right spoiler rear terminal Backorder 6221304087

Lid, right, white, Suffix: 87_white optic 724 Piaggio Group · 6221304087 Backorder

€ 50,82
62213040F2 Right spoiler rear terminal
No longer available
62213040DE Right spoiler rear terminal
No longer available
62213040M4 Right spoiler rear terminal
No longer available
Lid, right, violet, Suffix: F3_violet plum 146 Piaggio Group · 62213040F3 Backorder

€ 50,82
62213040XN2 Right spoiler rear terminal
No longer available
Lid, right, silver, Suffix: EU_grey pulsar 711/B Piaggio Group · 62213040EU Backorder

€ 52,27
62213040R7 Right spoiler rear terminal
No longer available
62213000F3 RIGHT TERMINAL SPOILER
No longer available
62213040BR Right spoiler rear terminal
No longer available
Lid, right, blue, Suffix: AH_blue capri 231/A Piaggio Group · 62213040AH Backorder

€ 52,27
Lid, right, primed Piaggio Group · 5A000086 Available

€ 22,36
Lid, right, yellow, Suffix: GP_yellow 928/A Piaggio Group · 62213040GP Available

€ 52,27
Lid, right, green, Suffix: VG_green portofino 305/A Piaggio Group · 62213040VG Available

€ 52,27
62213000AF RIGHT TERMINAL SPOILER
No longer available
62213000DE Right spoiler rear terminal
No longer available
62213040ND Right spoiler rear terminal
No longer available

16 Cover Available 299557

Lock Piaggio Group · 299557 · Quantity needed: 2 Available

€ 2,95

17 Cover Available 299558

Lid Piaggio Group · 299558 Available

€ 2,95

18 Cover Available 299559

Lid Piaggio Group · 299559 Available

€ 4,57

19 Cover Available 6205566

Cover Piaggio Group · 6205566 · Quantity needed: 2 Available

€ 7,73
