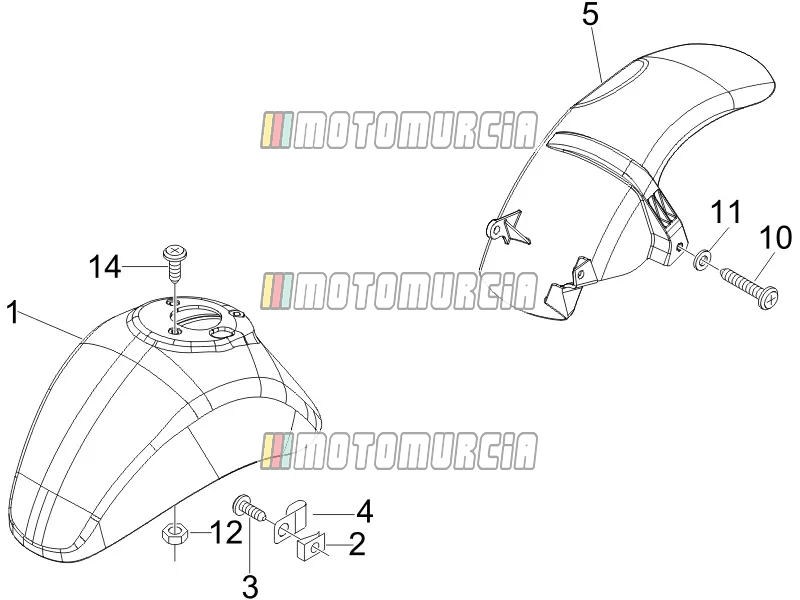

Exploded view — Wheel Huosing - Mudguard

Products

1 Front splash guard 66652800VG No longer available

• 66652800VG Front splash guard
  No longer available
•

  Mudguard front, blue, Suffix: DE_blue midnight 222/A Piaggio Group · 66652800DE Available

  € 201,76

  Add to cart
• 66652800F2 Mudguard
  No longer available
• 66652800EU Front mudguard
  No longer available
•

  Mudguard front, blue, Suffix: AH_blue capri 231/A Piaggio Group · 66652800AH Available

  € 215,83

  Add to cart
• 66652800BR Front mudguard
  No longer available
•

  Mudguard front, red, Suffix: R7_red dragon / passione / 894 Piaggio Group · 66652800R7 Available

  € 201,76

  Add to cart
•

  Mudguard front, beige, Suffix: M4_beige sienna 552 Piaggio Group · 66652800M4 Available

  € 201,76

  Add to cart
• 66652800ND Mudguard
  No longer available
• 66652800AF FF MUDGUARD VESPA ET RST UNPAINTED
  No longer available
• 66652800F3 Front mudguard
  No longer available
• 66652800GP Front mudguard
  No longer available

2 Clip nuts Available CM017410

•

  Sheet nut Piaggio Group · CM017410 Available

  € 0,99

  Add to cart

3 Screw Available 015900

•

  Screw Piaggio Group · 015900 Available

  € 0,99

  Add to cart

4 Hose clamp Available 562919

•

  Clamp Piaggio Group · 562919 Available

  € 1,45

  Add to cart

5 Mudguard rear Available 5A001285

•

  Mudguard rear, APAC (Asia) Piaggio Group · 5A001285 Available

  € 26,08

  Add to cart

11 Washer Available 709047

•

  Washer Piaggio Group · 709047 Available

  € 0,99

  Add to cart

12 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 3 Available

  € 0,99

  Add to cart

14 Screw (M6x16) Available 575249

•

  Screw M6 Piaggio Group · 575249 · Quantity needed: 3 Available

  € 0,99

  Add to cart
