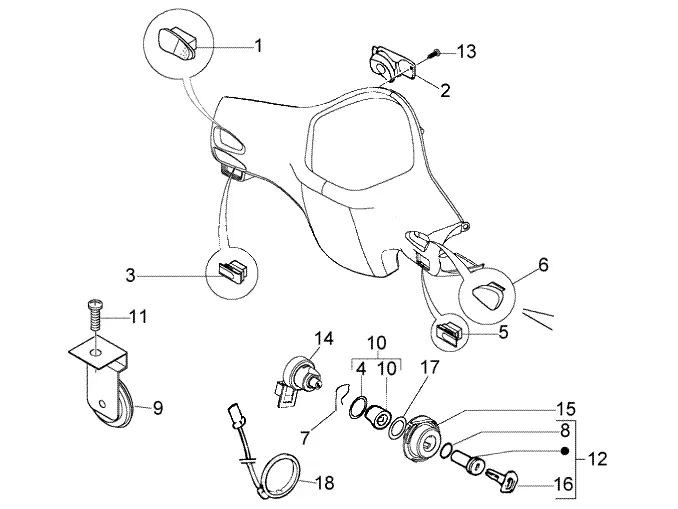

Exploded view — Electrical Device

Products

1 Remote Switch Available 294877

•

  Main beam switch Piaggio Group · 294877 Available · Shipped in 3–5 working days

  € 11,79

  Add to cart

2 Indicator Switch Available 294723

•

  Indicator switch Piaggio Group · 294723 Available · Shipped in 3–5 working days

  € 17,13

  Add to cart

3 Horn button Available 641743

• • Country: Europe


  Horn button Piaggio Group · 641743 Available · Shipped in 3–5 working days

  € 18,94

  Add to cart

4 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available · Shipped in 3–5 working days

  € 2,26

  Add to cart

5 Start pushbutton Available 641609

• • Throttle body without integrated control unit
  • Country: Europe


  Starter button Piaggio Group · 641609 Available · Shipped in 3–5 working days

  € 10,06

  Add to cart

6 Cover Available 623512

• • Country: Japan


  Lock Piaggio Group · 623512 Available · Shipped in 3–5 working days

  € 4,78

  Add to cart

7 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available · Shipped in 3–5 working days

  € 2,77

  Add to cart

8 Gasket ring Available 298731

•

  Oil seal Piaggio Group · 298731 Available · Shipped in 3–5 working days

  € 1,29

  Add to cart

9 Horn Available 1D000636

• • Country: China
  • Country: Taiwan


  Horn (TWN) Piaggio Group · 1D000636 Available · Shipped in 3–5 working days

  € 47,12

  Add to cart

10 Complete lock block Available 1B006291

•

  Lock Bolt Piaggio Group · 1B006291 Available · Shipped in 3–5 working days

  € 33,92

  Add to cart

11 Screw Available B016777

• • ABS version


  Flanged Screw M6x16 Piaggio Group · B016777 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

12 Cylinder set Available 573430

• 573430 Cylinder set


  Lock Set Piaggio Group · 1B005661 ↻ Replaces 573430, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 191,59

  Add to cart

13 Screw Available 297498

• • Red version


  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart

14 Key switch Available 1D002436

•

  Ignition switch Piaggio Group · 1D002436 Available · Shipped in 3–5 working days

  € 20,61

  Add to cart

15 Lock body Available 1B002607

•

  Lock Housing Piaggio Group · 1B002607 Available · Shipped in 3–5 working days

  € 8,65

  Add to cart

16 Key blank (Immobilizer) Available 1B004718

•

  Key Blank with Transponder, Giobert, for vehicles before Euro 5, black Piaggio Group · 1B004718 Available · Shipped in 3–5 working days

  € 51,03

  Add to cart

17 Flat washer Available 298594

•

  Washer Piaggio Group · 298594 Available · Shipped in 3–5 working days

  € 1,80

  Add to cart

18 Immobilizer antenna Available 1D003415R

•

  Aerial Immobiliser APAC (Asia) Piaggio Group · 1D003415R Available · Shipped in 3–5 working days

  € 42,02

  Add to cart
