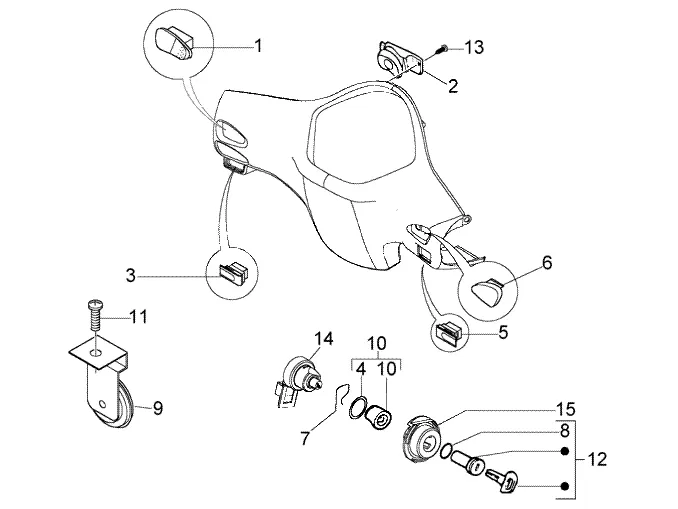

Exploded view — Electrical Device

Products

1 Remote Switch Available 294877

•

  Main beam switch Piaggio Group · 294877 Available

  € 11,79

  Add to cart

2 Indicator Switch Available 294723

•

  Indicator switch Piaggio Group · 294723 Available

  € 17,13

  Add to cart

3 Horn button Available 641743

•

  Horn button Piaggio Group · 641743 Available

  € 18,94

  Add to cart

4 Cylinder retainer spring Available 298838

•

  Spring Piaggio Group · 298838 Available

  € 2,26

  Add to cart

5 Start pushbutton Available 641609

•

  Starter button Piaggio Group · 641609 Available

  € 10,06

  Add to cart

6 Cover Available 623512

•

  Lock Piaggio Group · 623512 Available

  € 4,78

  Add to cart

7 Spring Available 253937

•

  Wire Tensioning Spring Piaggio Group · 253937 Available

  € 2,77

  Add to cart

8 Gasket ring Available 298731

•

  Oil seal Piaggio Group · 298731 Available

  € 1,29

  Add to cart

9 Horn Available CM071814

•

  Horn Piaggio Group · CM071814 Available

  € 67,37

  Add to cart

10 Complete lock block Available 1B006291

•

  Lock Bolt Piaggio Group · 1B006291 Available

  € 33,92

  Add to cart

11 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 Available

  € 1,48

  Add to cart

12 Cylinder set Backorder 1B000570

•

  Lock Set Piaggio Group · 1B000570 Backorder

  € 26,83

  Add to cart

13 Screw Available 297498

•

  Sheet Metal Screw Piaggio Group · 297498 · Quantity needed: 2 Available

  € 0,99

  Add to cart

14 Key switch Available 1D002436

•

  Ignition switch Piaggio Group · 1D002436 Available

  € 20,61

  Add to cart

15 Lock body Available 1B002607

•

  Lock Housing Piaggio Group · 1B002607 Available

  € 8,65

  Add to cart
