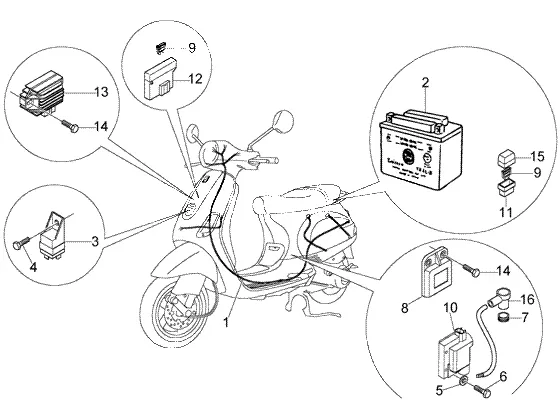

Exploded view — Electrical Device

Products

1 Main wiring harness 639302 No longer available

• 639302 Main wiring harness
  No longer available

2 Battery Available 584810

•

  Batterie YB9-B, 12 V, 9 A, Standard, without acid pack, 138x77x141 mm Piaggio Group · 584810 Available

  € 81,88

  Add to cart

3 Relay - starter Available 58115R

•

  Starting Relay 12 V, 80 A Piaggio Group · 58115R Available

  € 24,91

  Add to cart

4 Screw Available B016426

•

  Flanged Screw M6x14 Piaggio Group · B016426 Available

  € 1,48

  Add to cart

5 Washer Available 012528

•

  Washer Piaggio Group · 012528 Available

  € 1,44

  Add to cart

6 Screw Available 015856

•

  Screw M5x21 Piaggio Group · 015856 Available

  € 0,99

  Add to cart

7 Spark plug prot.collar Available 828339

•

  Cable Guide Piaggio Group · 828339 Available

  € 5,03

  Add to cart

8 Device 639980 No longer available

• 639980 Device
  No longer available

9 Fuse (5A) Available 293256

•

  Fuse 5 A Piaggio Group · 293256 · Quantity needed: 2 Available

  € 2,09

  Add to cart
•

  Fuse 10 A Piaggio Group · 292507 Available

  € 2,86

  Add to cart
•

  Fuse 15 A Piaggio Group · 290860 Available

  € 2,86

  Add to cart

10 Ignition coil Available 82597R

•

  Ignition Coil Piaggio Group · 82597R Available

  € 30,67

  Add to cart

11 Fuse holder Available 580653

•

  Fuse Box Piaggio Group · 580653 Available

  € 14,21

  Add to cart

12 Fuse holder 292893 No longer available

• 292893 Fuse holder
  No longer available

13 Voltage regulator 832637 No longer available

• 832637 Voltage regulator
  No longer available

14 Screw Available B016777

•

  Flanged Screw M6x16 Piaggio Group · B016777 · Quantity needed: 3 Available

  € 1,48

  Add to cart

15 Cover Available 290404

•

  Lid Piaggio Group · 290404 Available

  € 9,08

  Add to cart

16 Spark plug cap Available 969348

•

  Spark Plug Connector for connection nut, L05EA, 90° Piaggio Group · 969348 Available

  € 16,29

  Add to cart
