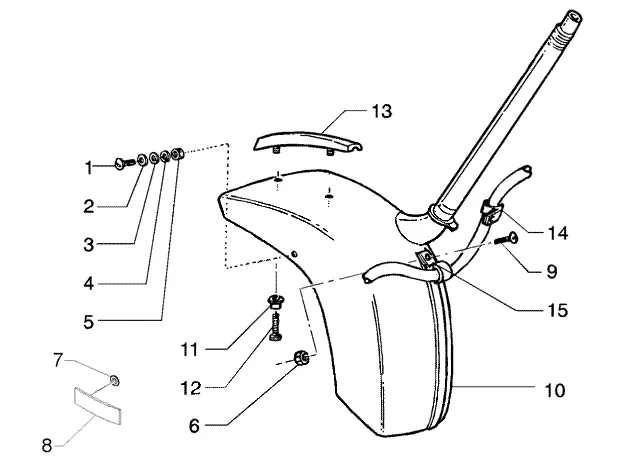

Exploded view — Front Mudguard

Products

1 Screw 234195 No longer available

• 234195 Screw
  No longer available

2 Washer Available 006018

•

  Washer Piaggio Group · 006018 Available

  € 1,29

  Add to cart

3 Washer Available 013880

•

  Washer 6,5x16x1,5 mm Piaggio Group · 013880 · Quantity needed: 2 Available

  € 0,99

  Add to cart

4 Washer Available 012528

•

  Washer Piaggio Group · 012528 Available

  € 1,44

  Add to cart

5 Nut Available 020105

•

  Standard nut Piaggio Group · 020105 Available

  € 1,88

  Add to cart

6 Nut Available 288245

•

  Collar nut M6 Piaggio Group · 288245 · Quantity needed: 3 Available

  € 0,99

  Add to cart

7 Washer Available 230359

•

  Washer Piaggio Group · 230359 · Quantity needed: 4 Available

  € 1,22

  Add to cart

8 Reflector 230868 No longer available

• 230868 Reflector Quantity needed: 2
  No longer available

9 Screw (M6x22) Available CM179302

•

  Screw M6x22 Piaggio Group · CM179302 · Quantity needed: 3 Available

  € 1,48

  Add to cart

10 Front mudguard Available 5638116

•

  Mudguard front, primed Piaggio Group · 5638116 Available

  € 166,42

  Add to cart

11 Spacer Available 192598

•

  Capsule Piaggio Group · 192598 · Quantity needed: 2 Available

  € 1,44

  Add to cart

12 Screw Available 015727

•

  Sheet Metal Screw Piaggio Group · 015727 · Quantity needed: 2 Available

  € 0,99

  Add to cart

13 Mudguard crest 5642195 No longer available

• 5642195 Mudguard crest
  No longer available

14 Spring 217280 No longer available

• 217280 Spring
  No longer available

15 Hose clamp Available 573918

•

  Clamp Piaggio Group · 573918 Available

  € 1,29

  Add to cart
