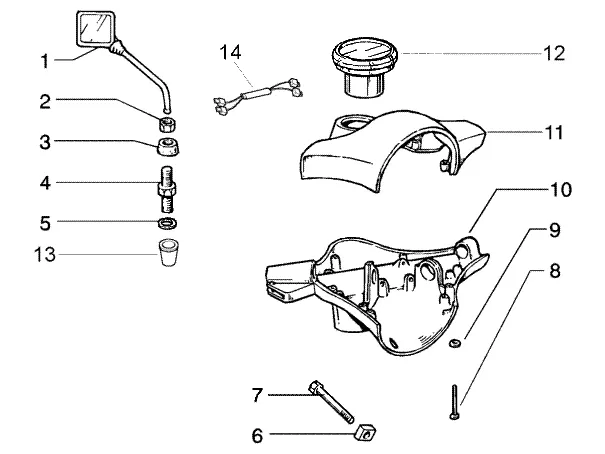

Exploded view — Handlebars-speedometer (kms)

Products

1 Mirror DX CM026402 No longer available

• CM026402 Mirror DX
  No longer available
•

  Mirror kit, chrome Piaggio Group · CM028003 Available

  € 169,58

  Add to cart

2 Nut Available 227673

•

  Standard nut Piaggio Group · 227673 · Quantity needed: 2 Available

  € 4,15

  Add to cart

3 Gasket Available 622427

•

  Rubber Piaggio Group · 622427 · Quantity needed: 2 Available

  € 8,00

  Add to cart

4 Maintenance Available 622391

•

  Mirror support Piaggio Group · 622391 · Quantity needed: 2 Available

  € 14,50

  Add to cart

5 Washer Available 007609

•

  Spring Washer Piaggio Group · 007609 · Quantity needed: 2 Available

  € 1,43

  Add to cart

6 Nut Available 070620

•

  Standard nut Piaggio Group · 070620 Available

  € 3,13

  Add to cart

7 Screw Available 655554

•

  Screw M10x65 Piaggio Group · 655554 Available

  € 2,27

  Add to cart

8 Screw Available 015835

•

  Screw Piaggio Group · 015835 · Quantity needed: 4 Available

  € 1,82

  Add to cart

9 Washer Available 003055

•

  Washer 5,4x10x0,8 mm Piaggio Group · 003055 · Quantity needed: 4 Available

  € 1,88

  Add to cart

10 HANDLEBAR LOWER PART Available 5637895

•

  Handlebar Bottom Part Piaggio Group · 5637895 Available

  € 315,73

  Add to cart

11 Handlebar cover Available 6224306

•

  Handlebar Fairing, top, black Piaggio Group · 6224306 Available

  € 60,34

  Add to cart

12 Speed.kms 638809 No longer available

• 638809 Speed.kms
  No longer available

13 Cap Available 125998

•

  Covering Cap Piaggio Group · 125998 · Quantity needed: 2 Available

  € 2,25

  Add to cart

14 Main wiring harness Backorder 638811

•

  Wiring Harness Piaggio Group · 638811 Backorder

  € 15,35

  Add to cart
