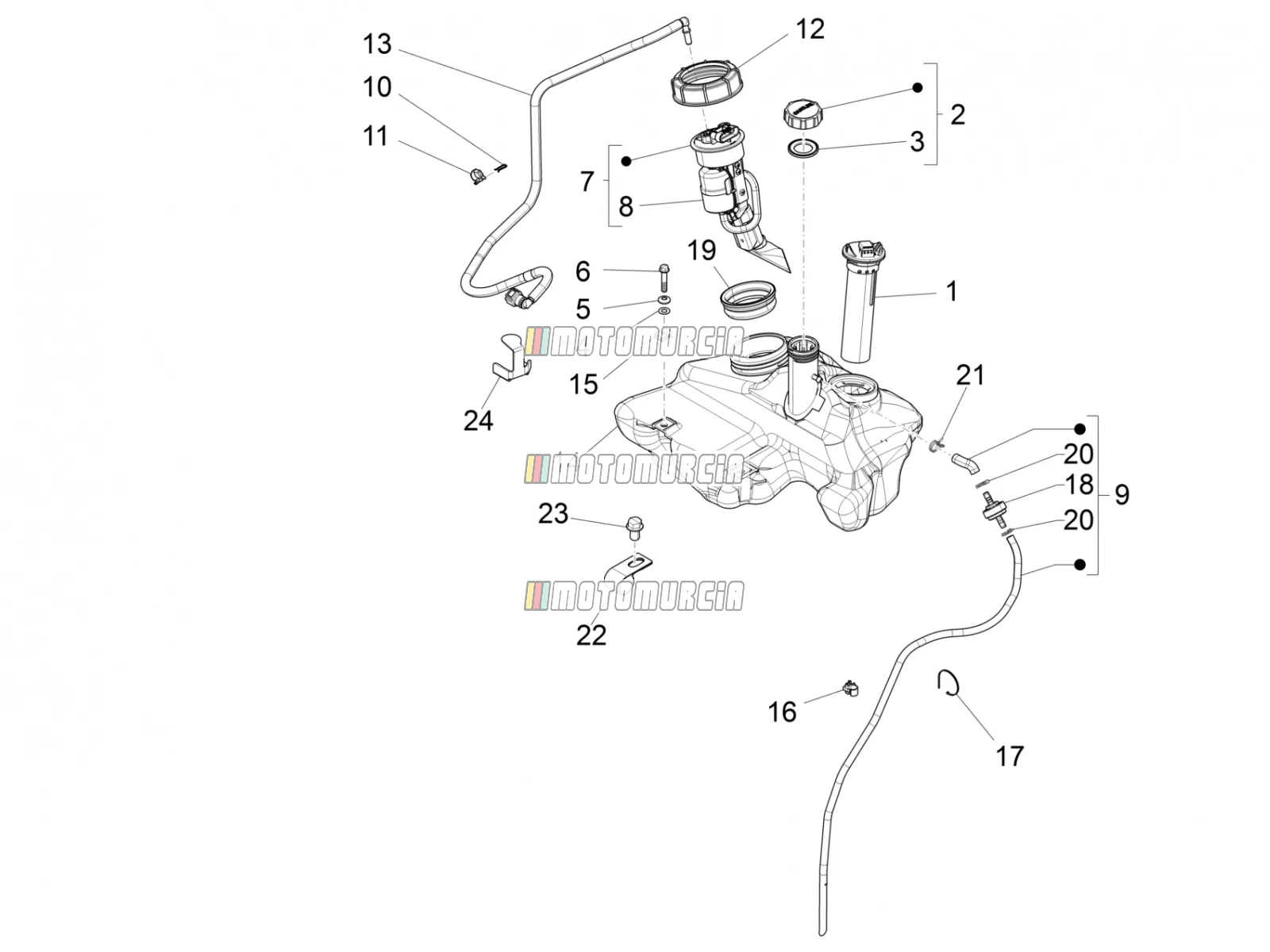

Exploded view — Fuel Tank

Products

1 Fuel level gauge Available CM025722

•

  Petrol Guage Piaggio Group · CM025722 Available

  € 76,76

  Add to cart

2 Plug Available 656022

•

  Tank Cap Piaggio Group · 656022 Available

  € 40,51

  Add to cart

3 Tank cover gasket Available 656021

•

  Gasket Piaggio Group · 656021 Available

  € 22,94

  Add to cart

4 Washer Available 013880

•

  Washer 6,5x16x1,5 mm Piaggio Group · 013880 Available

  € 0,99

  Add to cart

5 Washer Available 016406

•

  Washer 6,4x11,8x1 mm Piaggio Group · 016406 · Quantity needed: 3 Available

  € 1,79

  Add to cart

6 Screw Available 018639

•

  Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 3 Available

  € 2,77

  Add to cart

7 Complete fuel pump assembly Complete fuel pump assembly No longer available

• Complete fuel pump assembly
  No longer available
• 641136 Fuel pump
  No longer available

8 Fuel filter Available 639357

•

  Petrol Filter Piaggio Group · 639357 Available

  € 186,61

  Add to cart

9 Complete breather pipe Backorder 6727995

•

  Breather Pipe APAC (Asia) Piaggio Group · 6727995 Backorder

  € 82,76

  Add to cart

10 Elastic spring Available 672491

•

  Clamping Spring Piaggio Group · 672491 Available

  € 1,62

  Add to cart

11 Pipes/cables retainer spring Available CM006913

•

  Clip Piaggio Group · CM006913 · Quantity needed: 2 Available

  € 4,19

  Add to cart

12 Ring nut Available 576546

•

  Tank Cap Piaggio Group · 576546 Available

  € 8,40

  Add to cart

13 Fuel hose 1B004208 No longer available

• 1B004208 Fuel hose
  No longer available

14 Fuel tank 672399 No longer available

• 672399 Fuel tank
  No longer available
•

  Petrol Tank APAC (Asia) Piaggio Group · 1B005141 Backorder

  € 70,12

  Add to cart

15 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 3 Available

  € 2,04

  Add to cart

16 Clamp Available CM013201

•

  Clamp Piaggio Group · CM013201 Available

  € 1,32

  Add to cart

17 Lock-strap L=180mm Available 145298

•

  Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

  € 1,43

  Add to cart

18 Safety valve Available 576748

•

  Valve Piaggio Group · 576748 Available

  € 48,56

  Add to cart

19 Gasket Available 656003

•

  Gasket Piaggio Group · 656003 Available

  € 26,78

  Add to cart

20 5 - Clamp Available CM002908

•

  Clamping Spring Piaggio Group · CM002908 Available

  € 1,48

  Add to cart

22 Hose clamp Backorder 675510

•

  Clamp Piaggio Group · 675510 Backorder

  € 4,44

  Add to cart

23 Screw Available 969296

•

  Flanged Screw M6x10 Piaggio Group · 969296 Available

  € 1,48

  Add to cart

24 Fuel pipe retainer bracket 1B004398 No longer available

• 1B004398 Fuel pipe retainer bracket
  No longer available
