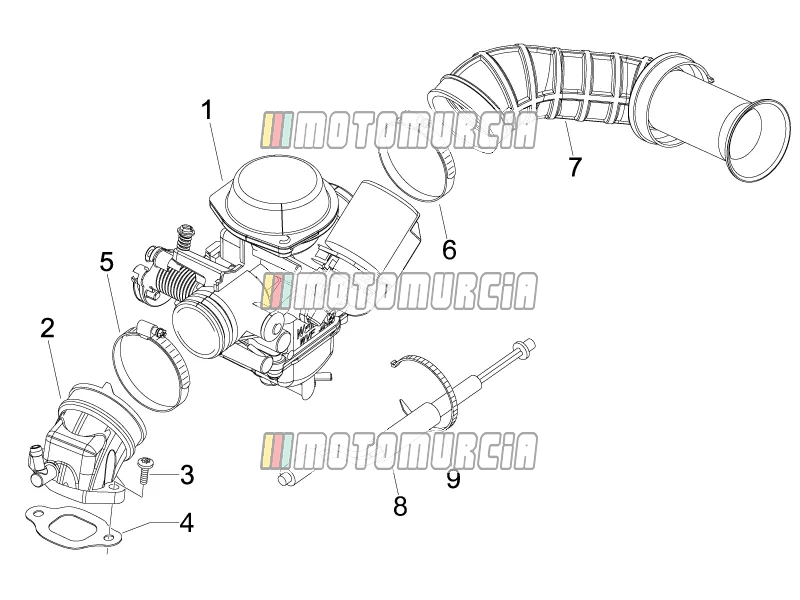

Exploded view — Carburettor, Assembly - Union Pipe

‹ Back to model

Carburettor, Assembly - Union Pipe

Products

1 Carburettor CM129214 No longer available

CM129214 Carburettor
No longer available
CM156009 Carburettor
No longer available

2 Intake Manifold Available 849465

Intake manifold Piaggio Group · 849465 Available

€ 28,44

3 Screw Available 031091

Hexagon Screw M6x22 Piaggio Group · 031091 · Quantity needed: 2 Available

€ 0,99
Flanged Screw M6x20 Piaggio Group · 018639 · Quantity needed: 2 Available

€ 2,77

4 Intake manifold Gasket Available 871167

Gasket Piaggio Group · 871167 Available

€ 1,73

6 Clamp Available 1A000833

Clamp Piaggio Group · 1A000833 Available

€ 10,74

7 Air bellow Available 829001

Intake Manifold Piaggio Group · 829001 Available

€ 30,31

8 Resistor Module Available 82961R6

Resistor Piaggio Group · 82961R6 Available

€ 33,64

9 Lock-strap L=180mm Available 145298

Cable Ties black, length: 18,0cm Piaggio Group · 145298 Available

€ 1,43
