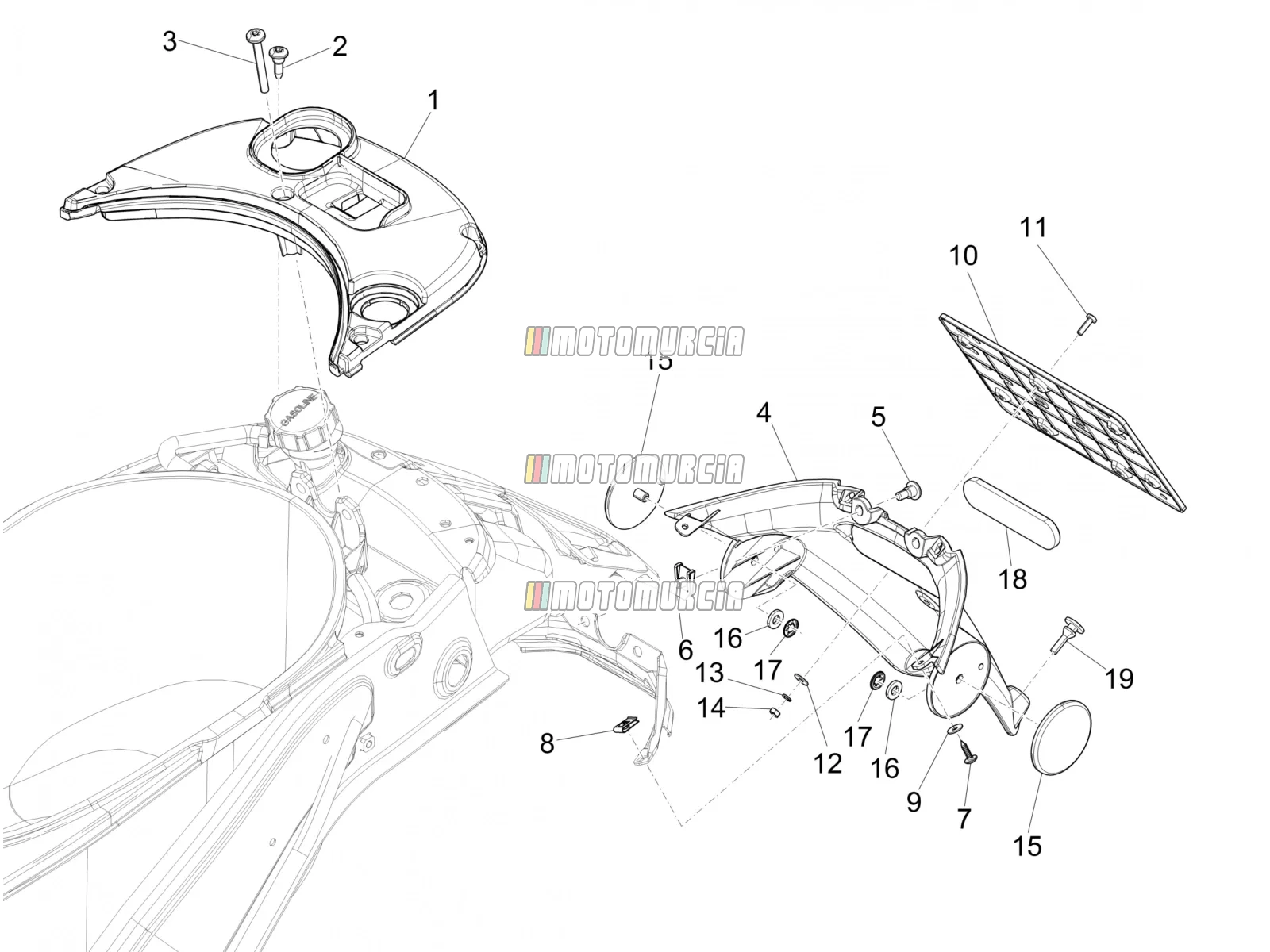

Exploded view — Rear Cover - Splash Guard

Products

1 Tank cover Available 1B000321

•

  Tank Cover, black Piaggio Group · 1B000321 Available

  € 18,68

  Add to cart

2 Screw Available CM179201

•

  Screw M6x22 Piaggio Group · CM179201 · Quantity needed: 4 Available

  € 0,99

  Add to cart

3 Metric screw torx Available CM179306

•

  Torx screw Piaggio Group · CM179306 Available

  € 2,93

  Add to cart

4 Rear protection Available 676206000C

•

  License Plate Holder Piaggio Group · 676206000C Available

  € 25,12

  Add to cart

5 Screw Available CM179202

•

  Screw Piaggio Group · CM179202 · Quantity needed: 2 Available

  € 1,48

  Add to cart

6 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

7 Screw (4.2 x 16) Available CM178601

•

  Sheet Metal Screw 4,2x16 mm Piaggio Group · CM178601 · Quantity needed: 2 Available

  € 1,45

  Add to cart

8 Washer Available 016670

•

  Washer 4,5x12x1 mm Piaggio Group · 016670 · Quantity needed: 2 Available

  € 1,60

  Add to cart

9 Clip nuts Available CM017409

•

  Sheet nut Piaggio Group · CM017409 · Quantity needed: 2 Available

  € 1,48

  Add to cart

10 License plate (Lamiera) Available 642235

•

  License Plate Holder 130x105,5 mm, plastic Piaggio Group · 642235 Available

  € 32,37

  Add to cart
•

  License Plate Holder 121x141 mm, plastic Piaggio Group · 638833 Available

  € 7,02

  Add to cart

11 Screw Available 015996

•

  Screw M4x12 Piaggio Group · 015996 · Quantity needed: 3 Available

  € 0,99

  Add to cart

12 Washer (spring) Available 016404

•

  Washer 4,2x7,6x0,9 mm Piaggio Group · 016404 · Quantity needed: 3 Available

  € 0,99

  Add to cart

13 Washer Available 013763

•

  Washer 4,2x12x1 mm Piaggio Group · 013763 · Quantity needed: 3 Available

  € 0,99

  Add to cart

14 Nut M4 Available 020104

•

  Standard nut Piaggio Group · 020104 · Quantity needed: 3 Available

  € 0,99

  Add to cart

15 Reflector Available 290315

•

  Rear light Piaggio Group · 290315 · Quantity needed: 2 Available

  € 13,26

  Add to cart

16 Spacer Available 479882

•

  Spacer disc Piaggio Group · 479882 · Quantity needed: 2 Available

  € 1,45

  Add to cart

17 Plate Available 180859

•

  Snap-in Ring Piaggio Group · 180859 · Quantity needed: 2 Available

  € 1,29

  Add to cart

18 Rear retroreflector Available 58233R5

•

  Reflector red Piaggio Group · 58233R5 Available

  € 14,87

  Add to cart

19 Cover Available 293717

•

  Plug Piaggio Group · 293717 · Quantity needed: 3 Available

  € 1,75

  Add to cart
