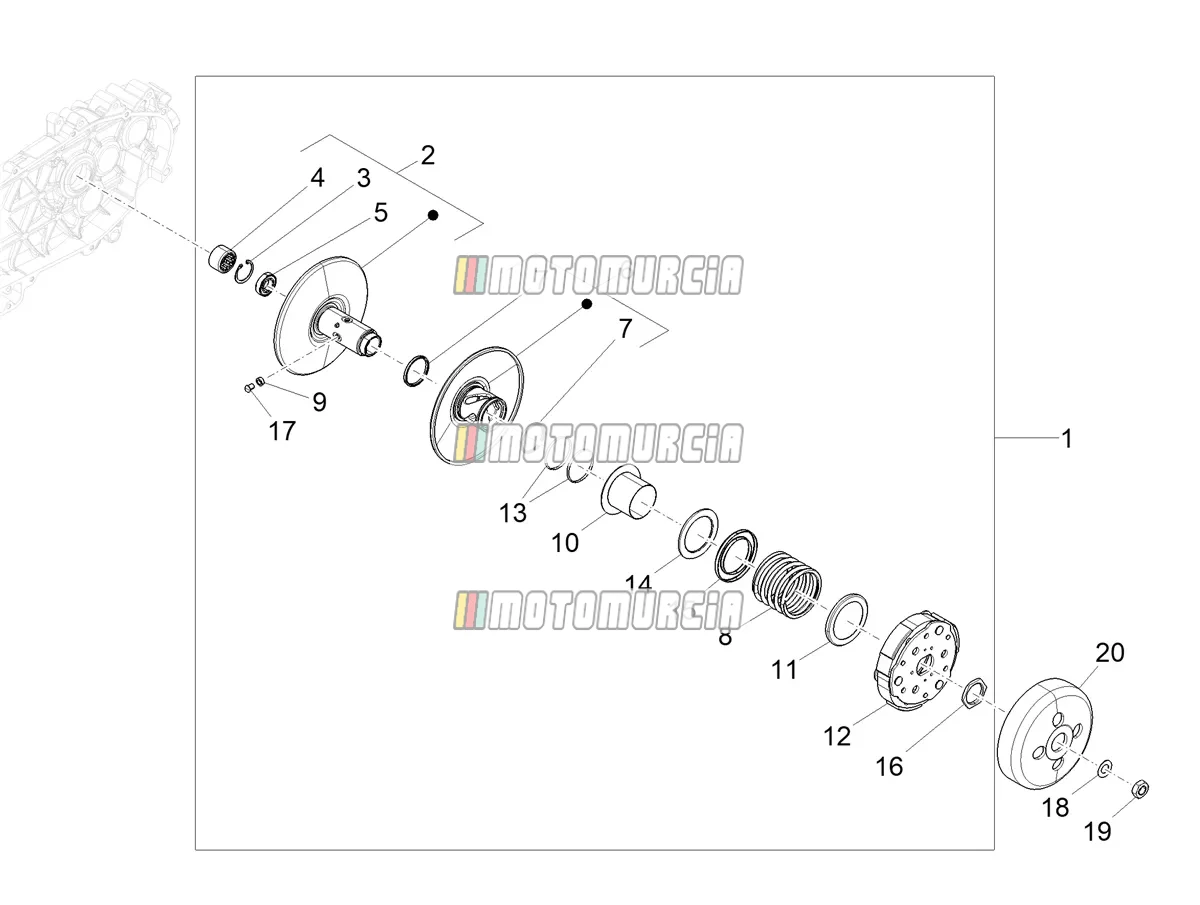

Exploded view — Driven Pulley

Products

1 Clutch complete (with driven pulley) Available CM288402

•

  Pulley Wheel Piaggio Group · CM288402 Available · Shipped in 3–5 working days

  € 266,64

  Add to cart

2 Fixed driven half pulley Available 1A007072

•

  Pulley halves Piaggio Group · 1A007072 Available · Shipped in 3–5 working days

  € 65,64

  Add to cart

3 Snap ring Available 006628

•

  Snap-in Ring Piaggio Group · 006628 Available · Shipped in 3–5 working days

  € 5,63

  Add to cart

4 Needle bearing Available 82518R

•

  Needle bearing 20x29x18 mm Piaggio Group · 82518R Available · Shipped in 3–5 working days

  € 30,29

  Add to cart

5 Radial ball bearing Available 1A002689

•

  Radial bearing Piaggio Group · 1A002689 Available · Shipped in 3–5 working days

  € 21,16

  Add to cart

6 Adjustable pulley, half Available 1A003430

•

  Pulley halves Piaggio Group · 1A003430 Available · Shipped in 3–5 working days

  € 101,04

  Add to cart

7 Gasket ring Backorder 289950

•

  Oil seal Piaggio Group · 289950 · Quantity needed: 2 Backorder · Shipped in 2–4 weeks

  € 11,47

  Add to cart

8 Spring Available 1A003435

•

  Converter spring Piaggio Group · 1A003435 Available · Shipped in 3–5 working days

  € 20,70

  Add to cart

9 Roller Available 431091

•

  Spacer Bush Piaggio Group · 431091 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 2,96

  Add to cart

10 Pulley side cap Available 1A002035

•

  Spring Mount Piaggio Group · 1A002035 Available · Shipped in 3–5 working days

  € 5,18

  Add to cart

11 Clutch side cap Available 1A002037

•

  Spring Mount Piaggio Group · 1A002037 Available · Shipped in 3–5 working days

  € 9,22

  Add to cart

12 Complete centrifugal clutch assembly Available CM288502

•

  Clutch Shoes Piaggio Group · CM288502 Available · Shipped in 3–5 working days

  € 249,20

  Add to cart

13 Gasket Available 289840

•

  Gasket Piaggio Group · 289840 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,83

  Add to cart

14 Washer (plastic) Available 1A002038

•

  Spacer disc plastic Piaggio Group · 1A002038 Available · Shipped in 3–5 working days

  € 4,56

  Add to cart

15 Spring seat Available 1A002036

•

  Spring Mount Piaggio Group · 1A002036 Available · Shipped in 3–5 working days

  € 8,68

  Add to cart

16 Clutch nut Available 289955

•

  Standard nut Piaggio Group · 289955 Available · Shipped in 3–5 working days

  € 14,90

  Add to cart

17 Pin Available B014466

•

  Bolts Piaggio Group · B014466 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 2,70

  Add to cart

18 Flat washer 22x12.1x1 Available B016005

• B016005 Flat washer 22x12.1x1


  Washer 22x12,1x1 mm Piaggio Group · 274246 ↻ Replaces B016005, which the manufacturer no longer supplies. Available · Shipped in 3–5 working days

  € 1,26

  Add to cart

19 Nut Available B016992

•

  Standard nut Piaggio Group · B016992 Available · Shipped in 3–5 working days

  € 2,57

  Add to cart

20 Clutch bell Available 1A010971

•

  Clutch Case Piaggio Group · 1A010971 Available · Shipped in 3–5 working days

  € 68,87

  Add to cart
