Aprilia Mini RX Exper NCE 50 2003 exploded views

Use the buttons below to filter drawings by group
Carburettor Aprilia Carburettor AP8350422 carburettor AP8350019 gas valve AP8350023 jet needle AP8350026 needle valve AP8350010 main jet AP8350011 idle jet AP8350020 starter jet AP8350018 float AP8350025 spring AP8350041 plate AP8350024 conical pin clip AP8350022 choke control AP8350048 screw AP8350049 screw AP8350012 jet needle AP8350021 pin AP8350017 float chamber AP8350029 screw AP8350027 gasket AP8350045 gasket envelope AP8350052 valve lever cable guide AP8350051 cover AP8350013 joint Carburettor

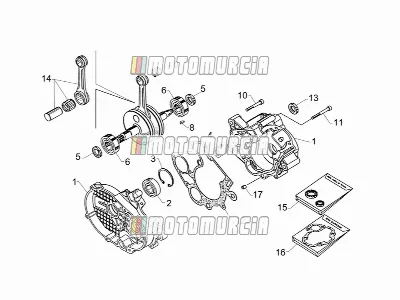

Crank-case-connect.rod Group Aprilia Crank-case-connect.rod Group AP8350089 crankcase assy AP8350095 bearing AP8350074 snap ring AP8350080 sealed bearing AP8350076 gasket AP8350094 bearing AP8350068 crankshaft AP8350096 flywheel key AP8350114 cage AP8350201 screw AP8350200 screw AP8350128 gasket AP8350077 gasket AP8350082 connecting rod AP8350174 pi seal rings, set AP8350176 gaskets set AP8350181 pin Crank-case-connect.rod Group
Exhaust Unit Aprilia Exhaust Unit AP8350469 pipe AP8350450 exhaust AP8350002 spacer (rubber) AP8350442 spring AP8350283 screw AP8350349 nut AP8350390 spacer AP8350272 spacer (rubber) AP8350280 silent-block Exhaust Unit
Fuel Supply Aprilia Fuel Supply AP8350422 carburettor AP8350113 clamp AP8350198 screw AP8350085 intake manifold AP8350129 gasket AP8350192 reed valve assy AP8350204 screw AP8350147 hose AP8350157 plate Fuel Supply
Kick-start Lev.cpl-clutch Cov. Aprilia Kick-start Lev.cpl-clutch Cov. AP8350093 clutch cover AP8350124 gasket AP8350203 screw AP8350123 gasket AP8350184 cover AP8350071 ring AP8350202 screw AP8350136 lever AP8350199 screw AP8350127 gasket AP8350164 washer AP8350078 ring AP8350067 kick starter shaft AP8350140 spring AP8350165 washer AP8350070 ring AP8350145 spring AP8350135 gear AP8350122 gasket AP8350185 cover Kick-start Lev.cpl-clutch Cov.

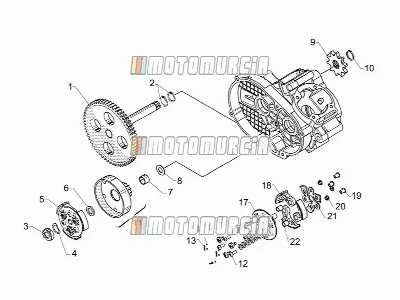

Transmission-clutch Aprilia Transmission-clutch AP8350090 chain ring AP8350075 ring AP8350105 nut AP8350143 spring AP8350112 clutch AP8350106 spacer AP8350083 bushing AP8350163 washer AP8350153 pinion AP8350072 ring AP8350134 clutch drum AP8350205 screw AP8350142 spring AP8350182 ball AP8350206 screw AP8350144 spring AP8350158 disc AP8350138 brake shoe AP8350148 pawl AP8350188 tightener AP8350141 spring AP8350084 bushing Transmission-clutch
Air Box Aprilia Air Box AP8350391 air box AP8350303 screw AP8350470 guard AP8350392 air filter AP8350384 cover AP8350350 nut AP8350300 screw AP8350001 hose AP8350322 clamp AP8350425 valve Air Box

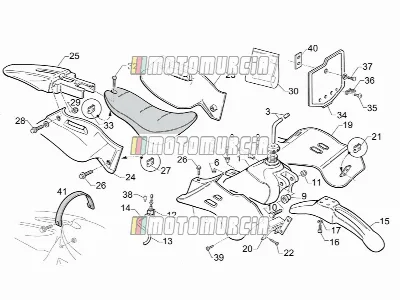

Body Aprilia Body AP8350373 tank AP8350374 cover AP8350273 breather pipe AP8350389 bush AP8350286 screw AP8350376 spacer AP8350282 screw AP8350388 spacer AP8350284 screw AP8350320 nut AP8350375 fuel tap AP8350275 pipe AP8350347 clamp AP8350364 front mudguard AP8350309 washer AP8350434 rh air duct AP8350435 lh air duct AP8350458 grid AP8350348 nut AP8350297 screw AP8350411 lh side panel AP8350410 rh side panel AP8350457 rear fairing AP8350303 screw AP8350304 screw AP8350314 nut AP8350477 sticker kit AP8350460 saddle assy AP8350302 screw AP8350349 nut AP8350365 number plate AP8350305 screw AP8350417 ring AP8350306 screw AP8350430 extension AP8350308 screw AP8350355 plate AP8350426 handle Body

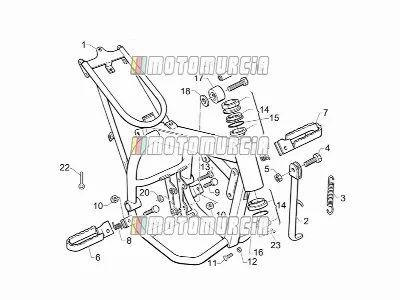

Frame Aprilia Frame AP8350473 frame AP8350395 main stand comp. AP8350385 spring AP8350294 screw AP8350313 nut AP8350057 footrest right AP8350056 footrest left AP8350055 spring AP8350054 screw AP8350312 nut AP8350295 screw AP8350400 nut AP8350288 screw AP8350387 ball ring set, complete AP8350276 o-ring AP8350278 o-ring AP8350447 chain tensioner roller AP8350310 washer AP8350321 nut AP8350353 spacer AP8350323 split pin AP8350279 ball Frame

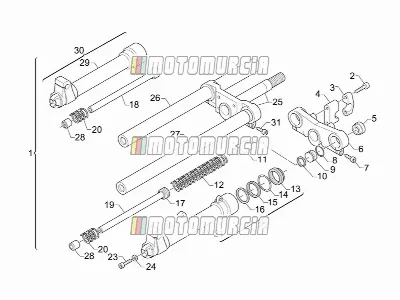

Front Fork Aprilia Front Fork AP8350465 front fork AP8350243 screw AP8350236 clump AP8350235 lower u-bolt AP8350252 cover AP8350229 cylinder head AP8350242 screw AP8350248 ring AP8350234 cover AP8350250 o-ring AP8350240 pipe AP8350239 spring AP8350253 dust cover AP8350247 ring AP8350251 ring AP8350246 washer AP8350249 ring AP8350257 rh shock absorber AP8350258 lh shock absorber AP8350238 return spring AP8350232 lh sleeve AP8350233 lh sleeve cpl. AP8350241 screw AP8350245 washer AP8350254 stem base AP8350255 pipe AP8350256 pipe AP8350237 pad AP8350230 rh sleeve AP8350231 rh sleeve cpl. AP8350244 screw Front Fork

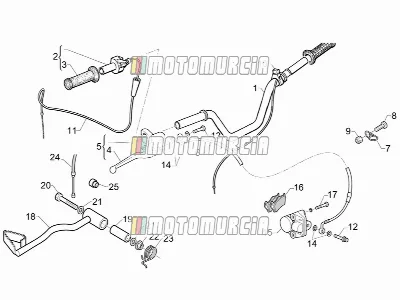

Handlebar Cpl.-rr.brake Lever Aprilia Handlebar Cpl.-rr.brake Lever AP8350421 handlebar AP8350357 throttle AP8350416 grip AP8350061 brake lever AP8350060 brake lever AP8350468 brake hose AP8350418 ring AP8350306 screw AP8350316 nut AP8350415 button AP8350378 gas lever transmission AP8350062 screw AP8350063 screw AP8350064 washer AP8350466 front brake caliper front AP8350065 brake pads AP8350304 screw AP8350451 rear brake lever AP8350414 bush AP8350291 screw AP8350310 washer AP8350313 nut AP8350452 spring AP8350379 brake cable AP8350271 pawl Handlebar Cpl.-rr.brake Lever

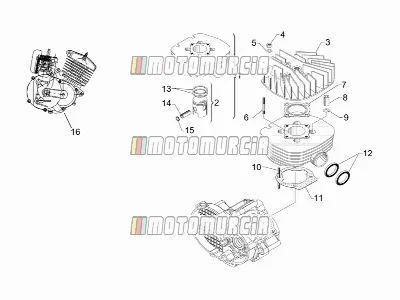

Head - Cylinder - Piston Aprilia Head - Cylinder - Piston AP8350210 cylinder kit AP8350149 piston AP8350187 cylinder head AP8350101 nut AP8350167 washer AP8350154 stud bolt AP8350132 gasket AP8350098 stud bolt AP8350162 washer AP8350155 stud bolt AP8350126 gasket AP8350079 o-ring AP8350179 ring AP8350180 piston pin d AP8350069 ring AP8350490 engine (complete) Head - Cylinder - Piston
Swing Arm Aprilia Swing Arm AP8350472 swing arm AP8350381 bushing AP8350471 spacer AP8350296 screw AP8350315 nut AP8350448 shock absorber AP8350401 spacer AP8350289 screw AP8350290 screw AP8350386 chain guide plate AP8350293 screw AP8350316 nut AP8350462 support rubber part AP8350307 screw AP8350320 nut AP8350461 plate AP8350354 spacer Swing Arm

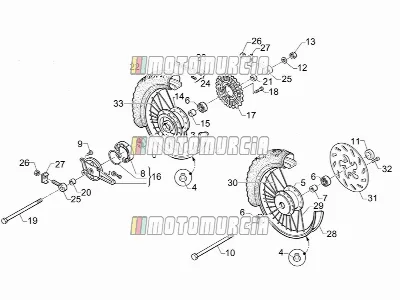

Wheels-brakes Aprilia Wheels-brakes AP8350264 front/rear tyre AP8350351 wheel AP8350332 spoke AP8350330 nipple AP8350412 hub AP8350260 bearing AP8350456 spacer AP8350440 brake shoe AP8350059 screw AP8350433 pin AP8350398 spacer AP8350311 washer AP8350317 nut AP8350463 hub AP8350423 spacer AP8350441 cover AP8350438 chain ring AP8350058 screw AP8350405 pin AP8350399 spacer AP8350402 spacer AP8350263 rear tyre AP8350267 chain AP8350270 connecting link AP8350382 chain tensioner AP8350321 nut AP8350383 plate AP8350352 wheel AP8350334 spoke AP8350335 rh spoke AP8350467 brake disc AP8350285 screw AP8350331 rh spoke Wheels-brakes

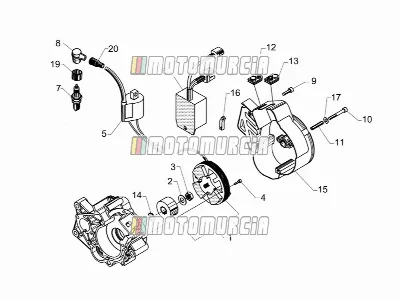

Ignition Unit Aprilia Ignition Unit AP8350189 flywheel AP8350166 washer AP8350102 nut AP8350193 screw AP8350108 coil AP8350109 ecu AP8350099 spark plug AP8350159 sparkplug cap AP8350195 screw AP8350196 screw AP8350133 dowel AP8350118 spacer (rubber) AP8350121 spacer (rubber) AP8350169 washer AP8350092 flywheel side cover AP8350120 spacer (rubber) AP8350171 washer AP8350183 bracket AP8350117 spacer (rubber) AP8350116 spacer (rubber) Ignition Unit
