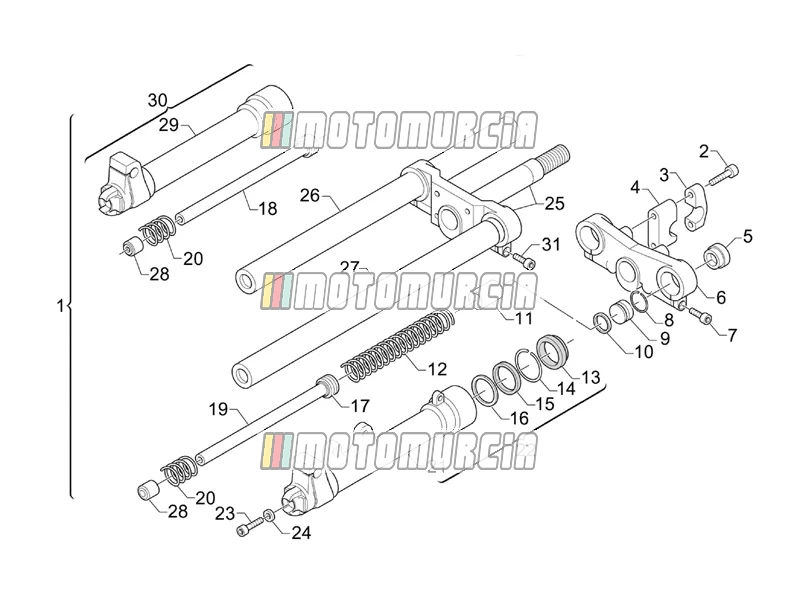

Exploded view — Front Fork

Products

1 Front fork AP8350465 No longer available

• AP8350465 Front fork
  No longer available

2 Screw AP8350243 No longer available

• AP8350243 Screw Quantity needed: 4
  No longer available

3 Clump AP8350236 No longer available

• AP8350236 Clump Quantity needed: 2
  No longer available

4 Lower U-bolt AP8350235 No longer available

• AP8350235 Lower U-bolt Quantity needed: 2
  No longer available

5 Cover AP8350252 No longer available

• AP8350252 Cover Quantity needed: 2
  No longer available

6 Cylinder head AP8350229 No longer available

• AP8350229 Cylinder head
  No longer available

7 Screw AP8350242 No longer available

• AP8350242 Screw Quantity needed: 2
  No longer available

8 Ring AP8350248 No longer available

• AP8350248 Ring Quantity needed: 2
  No longer available

9 Cover AP8350234 No longer available

• AP8350234 Cover Quantity needed: 2
  No longer available

10 O-Ring AP8350250 No longer available

• AP8350250 O-Ring Quantity needed: 2
  No longer available

11 Pipe AP8350240 No longer available

• AP8350240 Pipe Quantity needed: 2
  No longer available

12 Spring AP8350239 No longer available

• AP8350239 Spring Quantity needed: 2
  No longer available

13 Dust cover AP8350253 No longer available

• AP8350253 Dust cover Quantity needed: 2
  No longer available

14 Ring AP8350247 No longer available

• AP8350247 Ring Quantity needed: 2
  No longer available

15 Ring AP8350251 No longer available

• AP8350251 Ring Quantity needed: 2
  No longer available

16 Washer AP8350246 No longer available

• AP8350246 Washer Quantity needed: 2
  No longer available

17 Ring AP8350249 No longer available

• AP8350249 Ring
  No longer available

18 RH shock absorber AP8350257 No longer available

• AP8350257 RH shock absorber
  No longer available

19 LH shock absorber AP8350258 No longer available

• AP8350258 LH shock absorber
  No longer available

20 Return spring AP8350238 No longer available

• AP8350238 Return spring Quantity needed: 2
  No longer available

21 LH sleeve AP8350232 No longer available

• AP8350232 LH sleeve
  No longer available

22 LH sleeve cpl. AP8350233 No longer available

• AP8350233 LH sleeve cpl.
  No longer available

23 Screw AP8350241 No longer available

• AP8350241 Screw Quantity needed: 2
  No longer available

24 Washer AP8350245 No longer available

• AP8350245 Washer Quantity needed: 2
  No longer available

25 Stem base AP8350254 No longer available

• AP8350254 Stem base
  No longer available

26 Pipe AP8350255 No longer available

• AP8350255 Pipe
  No longer available

27 Pipe AP8350256 No longer available

• AP8350256 Pipe
  No longer available

28 Pad AP8350237 No longer available

• AP8350237 Pad Quantity needed: 2
  No longer available

29 RH sleeve AP8350230 No longer available

• AP8350230 RH sleeve
  No longer available

30 RH sleeve cpl. AP8350231 No longer available

• AP8350231 RH sleeve cpl.
  No longer available

31 Screw AP8350244 No longer available

• AP8350244 Screw Quantity needed: 4
