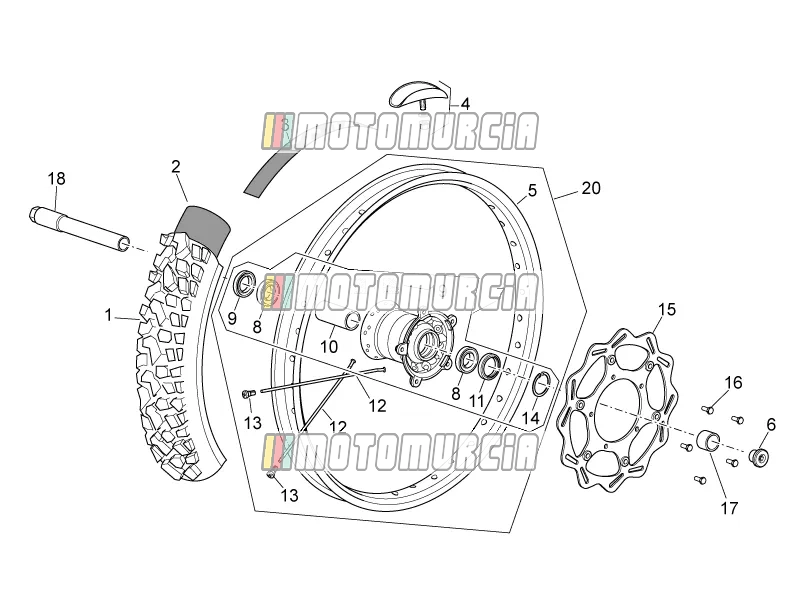

Exploded view — Front Wheel

Products

1 Front/rear tyre 90/90X21" 855743 No longer available

• 855743 Front/rear tyre 90/90X21"
  No longer available

2 Inner tube 21" 855745 No longer available

• 855745 Inner tube 21"
  No longer available

3 Front wheel flap 21" AP8109001 No longer available

• AP8109001 Front wheel flap 21"
  No longer available

4 Bracket AP9100457 No longer available

• AP9100457 Bracket
  No longer available

5 Front wheel 1,6x21" 855611 No longer available

• 855611 Front wheel 1,6x21"
  No longer available

6 Cover M22 Backorder AP9100171

•

  Screw Plug M22 Piaggio Group · AP9100171 Backorder

  € 19,57

  Add to cart

7 Front hub AP9100225 No longer available

• AP9100225 Front hub
  No longer available

8 Bearing Available 831615

•

  Radial bearing 25x42x9 mm Piaggio Group · 831615 · Quantity needed: 2 Available

  € 50,74

  Add to cart

9 Gasket ring 28x42x7 AP9100228 No longer available

• AP9100228 Gasket ring 28x42x7
  No longer available

10 Internal spacer L=69,7 Backorder AP9100226

•

  Spacer length: 69,4cm Piaggio Group · AP9100226 Backorder

  € 36,36

  Add to cart

11 Gasket ring 32x42x7 AP9100227 No longer available

• AP9100227 Gasket ring 32x42x7
  No longer available

12 Spoke d.3,5-21"-l.233 Backorder AP9100224

•

  Spoke length: 23,3cm, thickness: 3,50 mm Piaggio Group · AP9100224 · Quantity needed: 36 Backorder

  € 8,83

  Add to cart

13 Nipple Backorder AP9100057

•

  Spoke Nipples thickness: 3,50 mm Piaggio Group · AP9100057 · Quantity needed: 36 Backorder

  € 4,42

  Add to cart

14 Seeger Available AP8121334

•

  Circlip Ø 42,00 mm Piaggio Group · AP8121334 Available

  € 2,04

  Add to cart

15 Brake disc Backorder 855747

•

  Brake Disk front, Ø 270,00 mm Piaggio Group · 855747 Backorder

  € 93,17

  Add to cart

16 Screw Available 855625

•

  Flanged Screw M6x16 Piaggio Group · 855625 · Quantity needed: 5 Available

  € 2,78

  Add to cart

17 Outside spacer L=26,3 Backorder AP9100229

•

  Spacer Bush length: 26mm Piaggio Group · AP9100229 Backorder

  € 35,86

  Add to cart

18 Front wheel spindle L=221,5 Front 855203 No longer available

• 855203 Front wheel spindle L=221,5 Front
  No longer available

19 Spacer AP9100318 No longer available

• AP9100318 Spacer
  No longer available

20 Front wheel 21" 891012 No longer available

• 891012 Front wheel 21"
  No longer available
