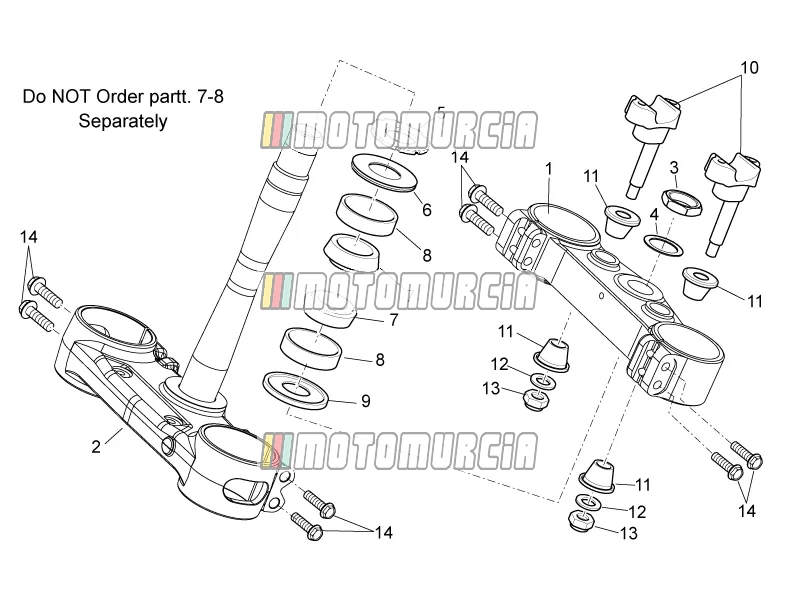

Exploded view — Steering

Products

1 Upper plate 851245 No longer available

• 851245 Upper plate
  No longer available

2 Base with pivot steering Backorder 858033

•

  Fork yoke Marzocchi Piaggio Group · 858033 Backorder

  € 235,95

  Add to cart

3 Spindle nut Available AP9100026

•

  Standard nut Piaggio Group · AP9100026 Available

  € 27,47

  Add to cart

4 Washer Available AP9100028

•

  Shim 26,5x36x1 mm Piaggio Group · AP9100028 Available

  € 1,82

  Add to cart

5 Ring nut Available AP9100021

•

  Standard nut Piaggio Group · AP9100021 Available

  € 31,48

  Add to cart

6 Upper Gasket ring Backorder AP9100204

•

  Oil seal Piaggio Group · AP9100204 Backorder

  € 25,18

  Add to cart

7 Steering bearing 851030 No longer available

• 851030 Steering bearing Quantity needed: 2
  No longer available

8 Steering bearing cup 851029 No longer available

• 851029 Steering bearing cup Quantity needed: 2
  No longer available

9 Lower Gasket ring Available AP9100205

•

  Oil seal Piaggio Group · AP9100205 Available

  € 17,81

  Add to cart

10 Lower U-bolt AP9100293 No longer available

• AP9100293 Lower U-bolt Quantity needed: 2
  No longer available

11 Silent-block Backorder AP9100412

•

  Silentblock Piaggio Group · AP9100412 · Quantity needed: 4 Backorder

  € 11,18

  Add to cart

12 Washer Backorder AP9100776

•

  Shim 10,1x23x2,5 mm Piaggio Group · AP9100776 · Quantity needed: 2 Backorder

  € 1,82

  Add to cart

13 Low self-locking nut M10x1,25 Available AP9100439

•

  Standard nut Piaggio Group · AP9100439 · Quantity needed: 2 Available

  € 7,70

  Add to cart

14 Screw Available AP8152290

•

  Flanged Screw M8x40 Piaggio Group · AP8152290 · Quantity needed: 8 Available

  € 2,93

  Add to cart
