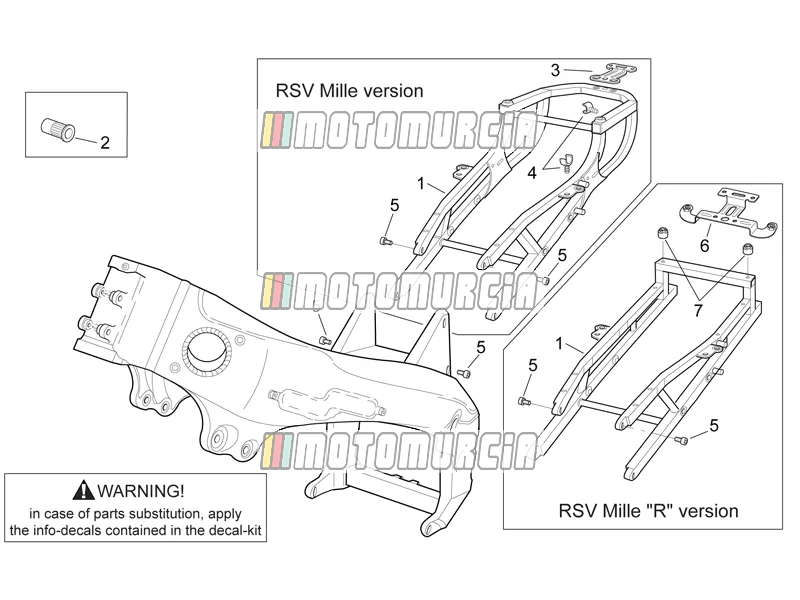

Exploded view — Frame I

‹ Back to model

Aprilia RSV 1000 2000

Products

1 Saddle support AP8146299 No longer available

AP8146299 Saddle support
- RSV Mille "R"acing version
No longer available
AP8146457 Saddle support
- Year of manufacture: 2002
No longer available

2 Threaded rivet M6 Available AP8102544

- Challenge version United States
- Factory version
- Country: United States of America
Rivet plastic Piaggio Group · AP8102544 · Quantity needed: 13 Available · Shipped in 3–5 working days

€ 4,51

3 Rear fairing support AP8134452 No longer available

AP8134452 Rear fairing support
- RSV Mille version
- Two-seater version
No longer available

4 Cable-guide Available AP8121882

- ABS version
- Version without ABS
Cable Guide Piaggio Group · AP8121882 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 6,98

5 2 - Screw (M10x30) Available AP8150469

Screw M10x30 Piaggio Group · AP8150469 · Quantity needed: 4 Available · Shipped in 3–5 working days

€ 6,00

6 Saddle lock support AP8134608 No longer available

AP8134608 Saddle lock support
- "R"acing GP1 Limited Ed. version
- RSV Mille "R"acing version
- Single-saddle version
- Year of manufacture: 2001
- Year of manufacture: 2002
- Country: United States of America
No longer available

7 Spacer Available AP8152386

- RSV Mille "R"acing version
- Single-saddle version
Spacer Piaggio Group · AP8152386 · Quantity needed: 2 Available · Shipped in 3–5 working days

€ 7,91
