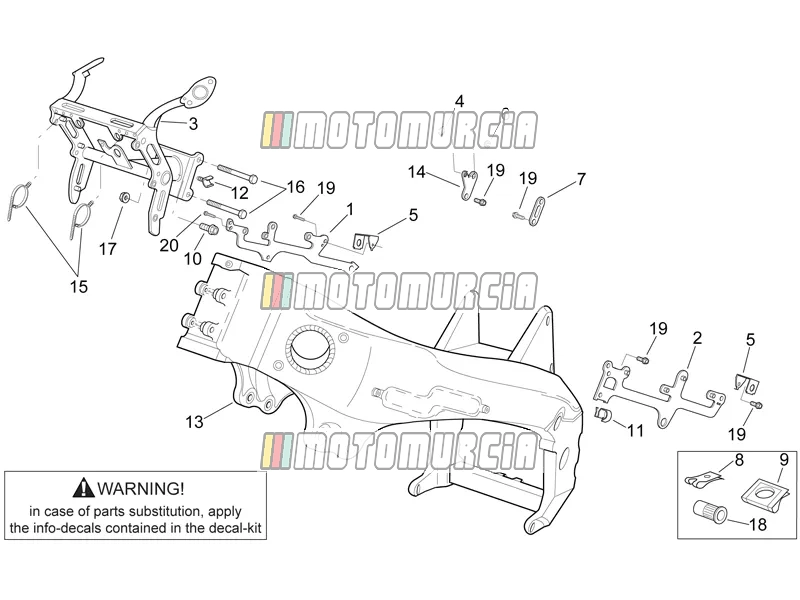

Exploded view — Frame Ii

Products

1 Coil support, RH Backorder AP8134389

•

  Bracket right Piaggio Group · AP8134389 Backorder

  € 49,43

  Add to cart

2 Coil support, LH AP8134390 No longer available

• AP8134390 Coil support, LH
  No longer available

3 Instrum.holder frame AP8135905 No longer available

• AP8135905 Instrum.holder frame
  No longer available

4 Seeger Available AP8121428

•

  Circlip Piaggio Group · AP8121428 Available

  € 2,93

  Add to cart

5 Fairing connecting plate Backorder AP8134436

•

  Bracket Piaggio Group · AP8134436 · Quantity needed: 2 Backorder

  € 8,83

  Add to cart

6 Snap ring AP8102498 No longer available

• AP8102498 Snap ring
  No longer available

7 Fairing fixing plate Available AP8134541

•

  Bracket Piaggio Group · AP8134541 Available

  € 13,13

  Add to cart

8 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 2 Available

  € 2,47

  Add to cart

9 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 · Quantity needed: 2 Available

  € 2,04

  Add to cart

10 Screw Available AP8152272

•

  Flanged Screw M5x12 Piaggio Group · AP8152272 Available

  € 2,18

  Add to cart

11 Black cable guide Available AP8201727

•

  Cable Guide Piaggio Group · AP8201727 Available

  € 1,65

  Add to cart

12 Cable-guide Available AP8220269

•

  Cable Guide Piaggio Group · AP8220269 Available

  € 3,04

  Add to cart

13 Frame AP8146355 No longer available

• AP8146355 Frame
  No longer available
• AP8135897 Frame
  No longer available

14 Min.eng.spd.cable plate AP8134619 No longer available

• AP8134619 Min.eng.spd.cable plate
  No longer available

15 Clamp AP8201539 No longer available

• AP8201539 Clamp Quantity needed: 2
  No longer available

16 Screw AP8150314 No longer available

• AP8150314 Screw Quantity needed: 2
  No longer available

17 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available

  € 2,18

  Add to cart

18 Threaded rivet M6 Available AP8102544

•

  Rivet plastic Piaggio Group · AP8102544 · Quantity needed: 12 Available

  € 4,51

  Add to cart

19 Screw Available 598839

•

  Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 20 Available

  € 1,48

  Add to cart

20 Screw Available AP8152279

•

  Flanged Screw M6x20 Piaggio Group · AP8152279 Available

  € 2,18

  Add to cart
