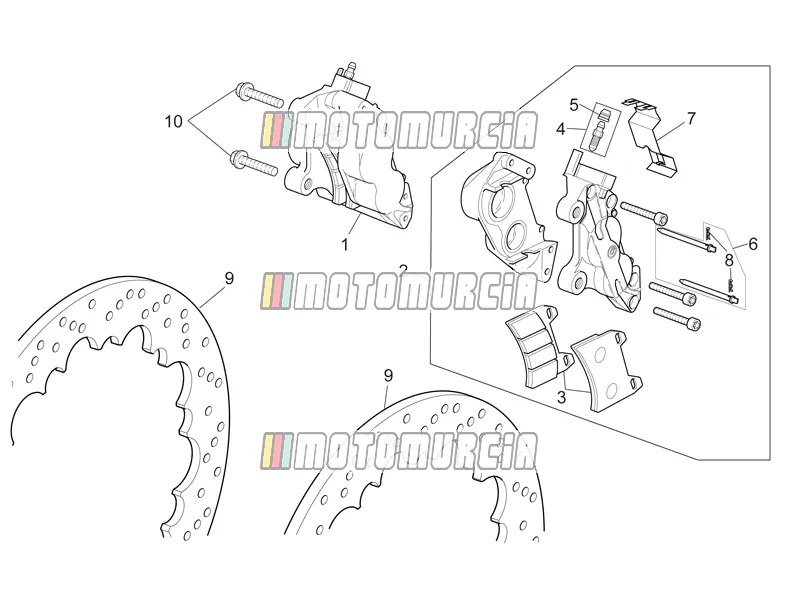

Exploded view — Front Brake Caliper

Products

1 RH Front brake caliper, gold AP8113892 No longer available

• AP8113892 RH Front brake caliper, gold
  No longer available

2 LH Front brake caliper, gold AP8113893 No longer available

• AP8113893 LH Front brake caliper, gold
  No longer available

3 Brake pads Available AP8113754

•

  Brake pad set Piaggio Group · AP8113754 · Quantity needed: 2 Available

  € 81,66

  Add to cart

4 Air bleed valve AP8213193 No longer available

• AP8213193 Air bleed valve Quantity needed: 2
  No longer available

5 Bleed valve cap Available AP8113070

•

  Covering Cap Piaggio Group · AP8113070 · Quantity needed: 2 Available

  € 15,62

  Add to cart

6 Pin+split pin AP8113721 No longer available

• AP8113721 Pin+split pin Quantity needed: 2
  No longer available

7 Spring AP8113722 No longer available

• AP8113722 Spring Quantity needed: 2
  No longer available

8 Split pin Available AP8113723

•

  Split Pin Piaggio Group · AP8113723 · Quantity needed: 2 Available

  € 8,24

  Add to cart

9 Brake disc B044207 No longer available

• B044207 Brake disc Quantity needed: 2
  No longer available
• GU05613335 Brake disc Quantity needed: 2
  No longer available

10 Screw (M10x1,25) Available AP8152385

•

  Screw M10x1.25 Piaggio Group · AP8152385 · Quantity needed: 4 Available

  € 7,64

  Add to cart
• AP8152336 Screw w/ flange M10x1,25 Quantity needed: 4
  No longer available
