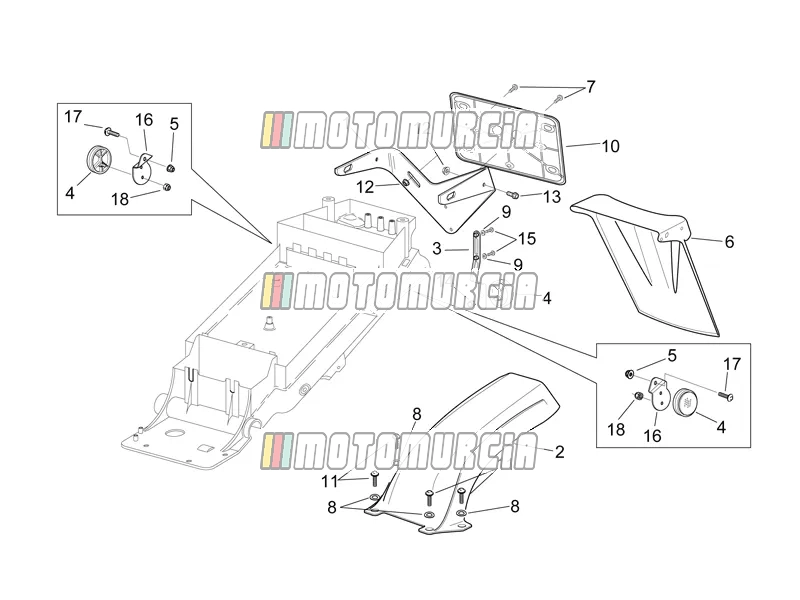

Exploded view — Rear Mudguard

Products

1 Number plate support Backorder AP8126775

•

  License Plate Holder Piaggio Group · AP8126775 Backorder

  € 110,28

  Add to cart

2 Rear mudguard, carb. AP8126650 No longer available

• AP8126650 Rear mudguard, carb.
  No longer available
•

  Mudguard rear Piaggio Group · AP8126579 Backorder

  € 62,52

  Add to cart

3 Reflector support Available AP8134448

•

  Bracket Piaggio Group · AP8134448 Available

  € 32,77

  Add to cart

4 Rear reflector, red Available AP8224164

•

  Reflector red Piaggio Group · AP8224164 Available

  € 11,85

  Add to cart

5 Nut AP8152306 No longer available

• AP8152306 Nut Quantity needed: 2
  No longer available

6 Number-plate extension AP8126591 No longer available

• AP8126591 Number-plate extension
  No longer available

7 Screw Available AP8150340

•

  Screw M6x12 Piaggio Group · AP8150340 · Quantity needed: 2 Available

  € 1,51

  Add to cart

8 Curved spring washer 5,3x10x0,5 Available AP8150272

•

  Snap Ring 5,3x10x0,5 mm Piaggio Group · AP8150272 · Quantity needed: 4 Available

  € 4,09

  Add to cart

9 Washer Available AP8150177

•

  Shim Piaggio Group · AP8150177 · Quantity needed: 2 Available

  € 0,99

  Add to cart

10 Number plate support Backorder AP8149034

•

  License Plate Holder (USA) Piaggio Group · AP8149034 Backorder

  € 28,71

  Add to cart

11 Screw Available AP8152298

•

  Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 4 Available

  € 3,80

  Add to cart

12 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 4 Available

  € 2,18

  Add to cart

13 Screw Available 598839

•

  Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 2 Available

  € 1,48

  Add to cart

15 Screw Available AP8152267

•

  Screw M5x12 Piaggio Group · AP8152267 · Quantity needed: 2 Available

  € 2,54

  Add to cart

16 Reflector support Backorder AP8148587

•

  Bracket Piaggio Group · AP8148587 · Quantity needed: 2 Backorder

  € 28,69

  Add to cart

17 Screw Available AP8152268

•

  Screw M5x16 Piaggio Group · AP8152268 · Quantity needed: 2 Available

  € 2,18

  Add to cart

18 Nut Available AP8150204

•

  Standard nut M4 Piaggio Group · AP8150204 · Quantity needed: 4 Available

  € 2,18

  Add to cart
