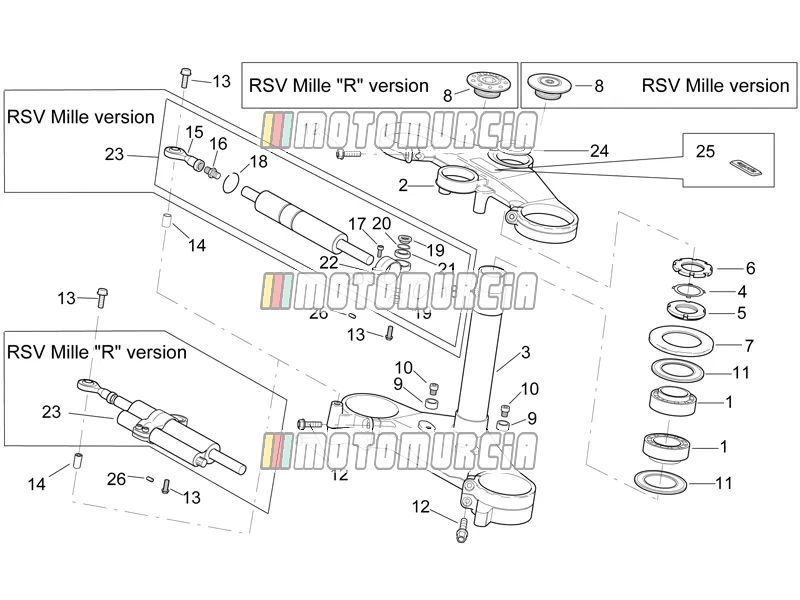

Exploded view — Steering

Products

1 Steering bearing Available 2B011121

•

  Steering head bearing X0803-09, 35x55x14 mm Piaggio Group · 2B011121 · Quantity needed: 2 Available

  € 81,65

  Add to cart

2 Fork upper plate AP8123927 No longer available

• AP8123927 Fork upper plate
  No longer available
• AP8123932 Fork upper plate
  No longer available

3 Stem base AP8123640 No longer available

• AP8123640 Stem base
  No longer available
• AP8123928 Stem base
  No longer available

4 Steering security plate Available AP8121207

•

  Locking Ring Piaggio Group · AP8121207 Available

  € 31,62

  Add to cart

5 Ring nut Available AP8123642

•

  Standard nut Piaggio Group · AP8123642 Available

  € 27,98

  Add to cart

6 Return ring nut Available AP8123643

•

  Threaded ring Piaggio Group · AP8123643 Available

  € 30,27

  Add to cart

7 Dust cover ring Available AP8123644

•

  Dust guard Piaggio Group · AP8123644 Available

  € 7,10

  Add to cart

8 Upper plate fixing bush Available AP8121205

•

  Lock Piaggio Group · AP8121205 Available

  € 43,90

  Add to cart
•

  Sleeve Piaggio Group · AP8121346 Available

  € 59,22

  Add to cart

9 Steering lock bush Available AP8121302

•

  Sleeve Piaggio Group · AP8121302 · Quantity needed: 2 Available

  € 4,59

  Add to cart

10 Screw Available 319165

•

  Screw M8x16 Piaggio Group · 319165 · Quantity needed: 2 Available

  € 1,48

  Add to cart

11 Dust cover ring Available AP8123641

•

  Dust guard Piaggio Group · AP8123641 · Quantity needed: 2 Available

  € 15,48

  Add to cart

12 Screw Available AP8152289

•

  Flanged Screw M8x35 Piaggio Group · AP8152289 · Quantity needed: 6 Available

  € 1,48

  Add to cart

13 Screw Available AP8152281

•

  Flanged Screw M6x30 Piaggio Group · AP8152281 · Quantity needed: 2 Available

  € 2,18

  Add to cart

14 Spacer Available AP8121041

•

  Spacer Piaggio Group · AP8121041 Available

  € 2,54

  Add to cart

15 Articulated head AP8123865 No longer available

• AP8123865 Articulated head
  No longer available

16 Steering shockabs.union AP8121236 No longer available

• AP8121236 Steering shockabs.union
  No longer available

17 Screw Available AP8152040

•

  Screw Piaggio Group · AP8152040 Available

  € 1,44

  Add to cart

18 Circlip AP8123864 No longer available

• AP8123864 Circlip Quantity needed: 2
  No longer available

19 Spacer Available AP8121233

•

  Sleeve Piaggio Group · AP8121233 · Quantity needed: 2 Available

  € 13,62

  Add to cart

20 O-ring 119 Available AP8220149

•

  O-Ring Piaggio Group · AP8220149 · Quantity needed: 2 Available

  € 2,53

  Add to cart

21 Ball joint AP8123866 No longer available

• AP8123866 Ball joint
  No longer available

22 Steering shockabs. collar AP8121235 No longer available

• AP8121235 Steering shockabs. collar
  No longer available

23 Steering shock absorber AP8123925 No longer available

• AP8123925 Steering shock absorber
  No longer available
• AP8123645 Steering shock absorber Sachs
  No longer available

24 Stem plug washer Available AP8152384

•

  Sealing Disk Piaggio Group · AP8152384 Available

  € 2,47

  Add to cart

25 "Aprilia" dataplate Available AP8157770

•

  Decal, motive: Aprilia Piaggio Group · AP8157770 Available

  € 20,45

  Add to cart

26 Dowel Available AP8150490

•

  Adjustment Screw Piaggio Group · AP8150490 Available

  € 1,37

  Add to cart
