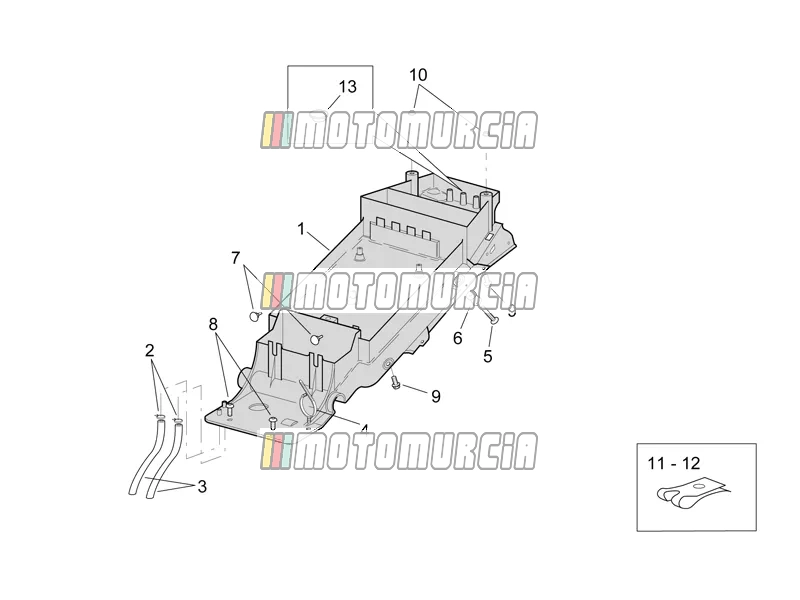

Exploded view — Undersaddle

Products

1 Saddle supp.lower lockup AP8138591 No longer available

• AP8138591 Saddle supp.lower lockup
  No longer available
• AP8149064 Saddle supp.low. lockup, red
  • Colour: "R"acing Aprilia Black 2000
  • Colour: "R"acing Diablo Black 2001-2002
  • Colour: Diablo Black 2001-2002
  • Year of manufacture: 2000
  • Year of manufacture: 2001
  • Country: United States of America
  No longer available
• AP8148356 Saddle supp.low. lockup, red
  • Colour: "R"acing Aprilia Black 2000
  • Colour: "R"acing Diablo Black 2001-2002
  • Colour: Diablo Black 2001-2002
  • Year of manufacture: 2000
  • Year of manufacture: 2001
  No longer available

2 Clamp Available AP8101595

•

  Clamp Ø 10,10 mm Piaggio Group · AP8101595 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,71

  Add to cart

3 Fuel pipe 5,5x10 (5,5x10) Available 896544

• • Carburettor version (C364M)


  Petrol Hose 5,5x10 mm Piaggio Group · 896544 Available · Shipped in 3–5 working days

  € 32,88

  Add to cart

4 Clamp AP8201539 No longer available

• AP8201539 Clamp
  No longer available

5 Screw Available AP8150468

• • RSV Mille version
  • Trofeo Racing version


  Screw M6x40 Piaggio Group · AP8150468 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

6 Washer Available AP8150015

• • Colour: """GARDA"" Bluevert 2001"
  • Colour: Tuscany Tibet 2003


  Shim Piaggio Group · AP8150015 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart
• • Year of manufacture: 1998
  • Year of manufacture: 2003
  • Country: United States of America


  Sleeve Piaggio Group · AP8121890 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 4,51

  Add to cart

7 Rubber spacer Available AP8120001

• • Year of manufacture: 2003
  • Year of manufacture: 2004
  • Country: United States of America


  Plug Piaggio Group · AP8120001 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 6,27

  Add to cart

8 Screw Available AP8152246

• • Colour: Public Authorities China
  • Business
  • Business version


  Screw M6x16 Piaggio Group · AP8152246 · Quantity needed: 4 Available · Shipped in 3–5 working days

  € 4,37

  Add to cart

9 Screw Available 598839

• • Colour: Off Black 2009 (s.t.890773)
  • Colour: Off Black 2010 (s.t.895847)
  • Country: China
  • Country: Japan
  • Country: United States of America


  Flanged Screw M6x16 Piaggio Group · 598839 · Quantity needed: 6 Available · Shipped in 3–5 working days

  € 1,48

  Add to cart

10 Nut Available AP8152299

• • Colour: Limited Edition green 2013
  • Colour: Public Authorities China
  • Colour: Tuscany Tibet 2003


  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available · Shipped in 3–5 working days

  € 2,18

  Add to cart

11 Clip nuts (M5) Available AP8102375

•

  Sheet nut M5 Piaggio Group · AP8102375 · Quantity needed: 8 Available · Shipped in 3–5 working days

  € 2,47

  Add to cart

12 Clip nuts (M6) Available 254485

• • Year of manufacture: 2012
  • Year of manufacture: 2013


  Sheet nut Piaggio Group · 254485 Available · Shipped in 3–5 working days

  € 2,04

  Add to cart

13 Cover Available AP8102600

• • 49 States approval
  • Municipal police
  • Strada version


  Plug Piaggio Group · AP8102600 · Quantity needed: 3 Available · Shipped in 3–5 working days

  € 0,99

  Add to cart
