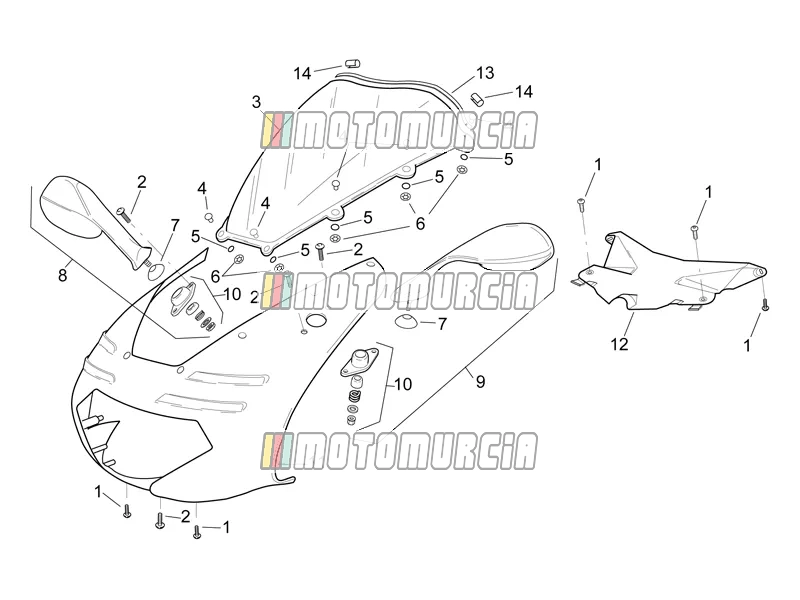

Exploded view — Front Body - Front Fairing

Products

1 Screw Available AP8152298

•

  Flanged Screw M5x16 Piaggio Group · AP8152298 · Quantity needed: 6 Available

  € 3,80

  Add to cart

2 Screw Available AP8152246

•

  Screw M6x16 Piaggio Group · AP8152246 · Quantity needed: 5 Available

  € 4,37

  Add to cart

3 Windshield AP8139517 No longer available

• AP8139517 Windshield
  No longer available

4 Fixing pin Available AP8144109

•

  Pin Piaggio Group · AP8144109 · Quantity needed: 8 Available

  € 10,48

  Add to cart

5 Rubber spacer Available AP8102504

•

  Gasket Piaggio Group · AP8102504 · Quantity needed: 8 Available

  € 3,18

  Add to cart

6 Washer for shafts D5 (D5) Available AP8150450

•

  Waved Washer Ø 5,00 mm Piaggio Group · AP8150450 · Quantity needed: 8 Available

  € 2,47

  Add to cart

7 Mirror joint cup Available AP8102341

•

  Sleeve Piaggio Group · AP8102341 · Quantity needed: 2 Available

  € 2,78

  Add to cart

8 RH rearview mirror, black AP8102883 No longer available

• AP8102883 RH rearview mirror, black
  No longer available

9 LH rearview mirror, black AP8102884 No longer available

• AP8102884 LH rearview mirror, black
  No longer available

10 Mirror insertion kit Available AP8102909

•

  Mirror mount Piaggio Group · AP8102909 · Quantity needed: 2 Available

  € 18,84

  Add to cart

11 Front fairing, black/white AP8148658 No longer available

• AP8148658 Front fairing, black/white
  No longer available

12 Front fairing-dashboard lockup AP8148548 No longer available

• AP8148548 Front fairing-dashboard lockup
  No longer available

13 Front fairing gasket AP8144305 No longer available

• AP8144305 Front fairing gasket
  No longer available

14 Staple Available AP8106712

•

  Clamp Piaggio Group · AP8106712 Available

  € 6,59

  Add to cart
