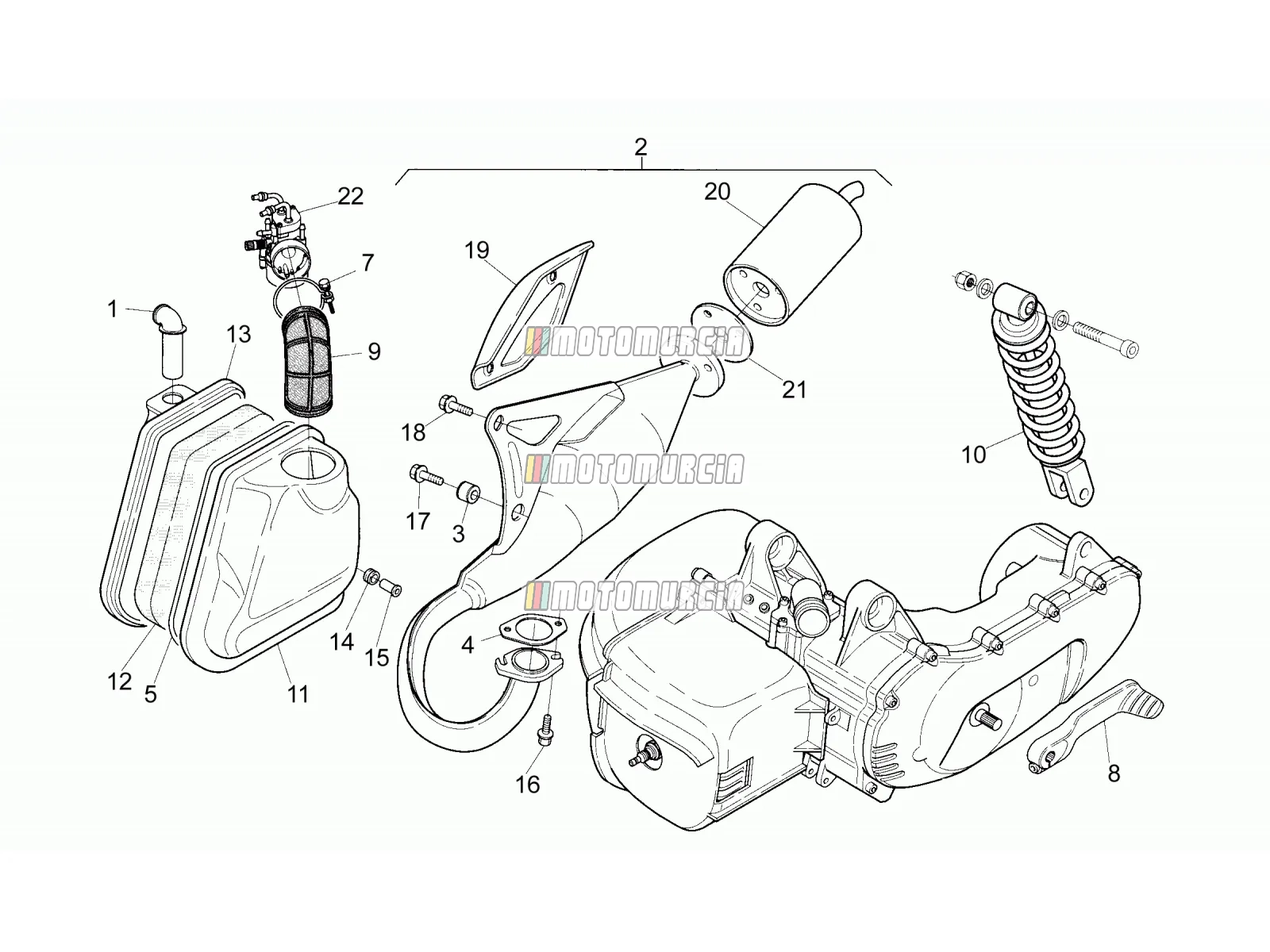

Exploded view — Exhaust Unit

Products

1 Intake hose AP8220334 No longer available

• AP8220334 Intake hose
  No longer available

2 Exhaust AP8219189 No longer available

• AP8219189 Exhaust
  No longer available

3 Silent block, exhaust pipe Backorder AP8220357

•

  Silentblock Piaggio Group · AP8220357 Backorder

  € 11,11

  Add to cart

4 Exhaust gasket Available AP8219212

•

  Exhaust Gasket Piaggio Group · AP8219212 Available

  € 10,56

  Add to cart

5 Seal air filter box Available 890506

•

  Cover Gasket Piaggio Group · 890506 Available

  € 10,87

  Add to cart

7 Clamp Available AP8201799

•

  Clamp Piaggio Group · AP8201799 Available

  € 19,94

  Add to cart

8 Kick starter lever Available AP8232820

•

  Kickstarter lever Piaggio Group · AP8232820 Available

  € 61,61

  Add to cart

9 Air bellow Available AP8220364

•

  Intake Boot Piaggio Group · AP8220364 Available

  € 17,52

  Add to cart

10 Shock absorber, black D10 AP8203631 No longer available

• AP8203631 Shock absorber, black D10
  No longer available

11 Filter housing cover Available AP8231549

•

  Air Filter Cover Piaggio Group · AP8231549 Available

  € 10,44

  Add to cart

12 Air filter Available AP82016830P

•

  Air filter Piaggio Group · AP82016830P Available

  € 8,85

  Add to cart

13 Filter housing body Available AP8231548

•

  Air Filter Box Piaggio Group · AP8231548 Available

  € 26,04

  Add to cart

14 Damper Available AP8220370

•

  Rubber Piaggio Group · AP8220370 Available

  € 3,84

  Add to cart

15 Spacer Available AP8121725

•

  Sleeve Piaggio Group · AP8121725 Available

  € 2,18

  Add to cart

16 Hex socket screw Available AP8150521

•

  Screw Piaggio Group · AP8150521 · Quantity needed: 2 Available

  € 2,18

  Add to cart

17 Screw Available AP8152289

•

  Flanged Screw M8x35 Piaggio Group · AP8152289 Available

  € 1,48

  Add to cart

18 Screw Available AP8152288

•

  Flanged Screw M8x30 Piaggio Group · AP8152288 Available

  € 2,47

  Add to cart

19 Silencer protector AP8219237 No longer available

• AP8219237 Silencer protector
  No longer available

20 Silencer AP8219236 No longer available

• AP8219236 Silencer
  No longer available

21 Exhaust gasket Backorder AP8201574

•

  Exhaust Gasket Piaggio Group · AP8201574 Backorder

  € 14,45

  Add to cart

22 Carburettor phbn 12-Ds AP8206751 No longer available

• AP8206751 Carburettor phbn 12-Ds
  No longer available
