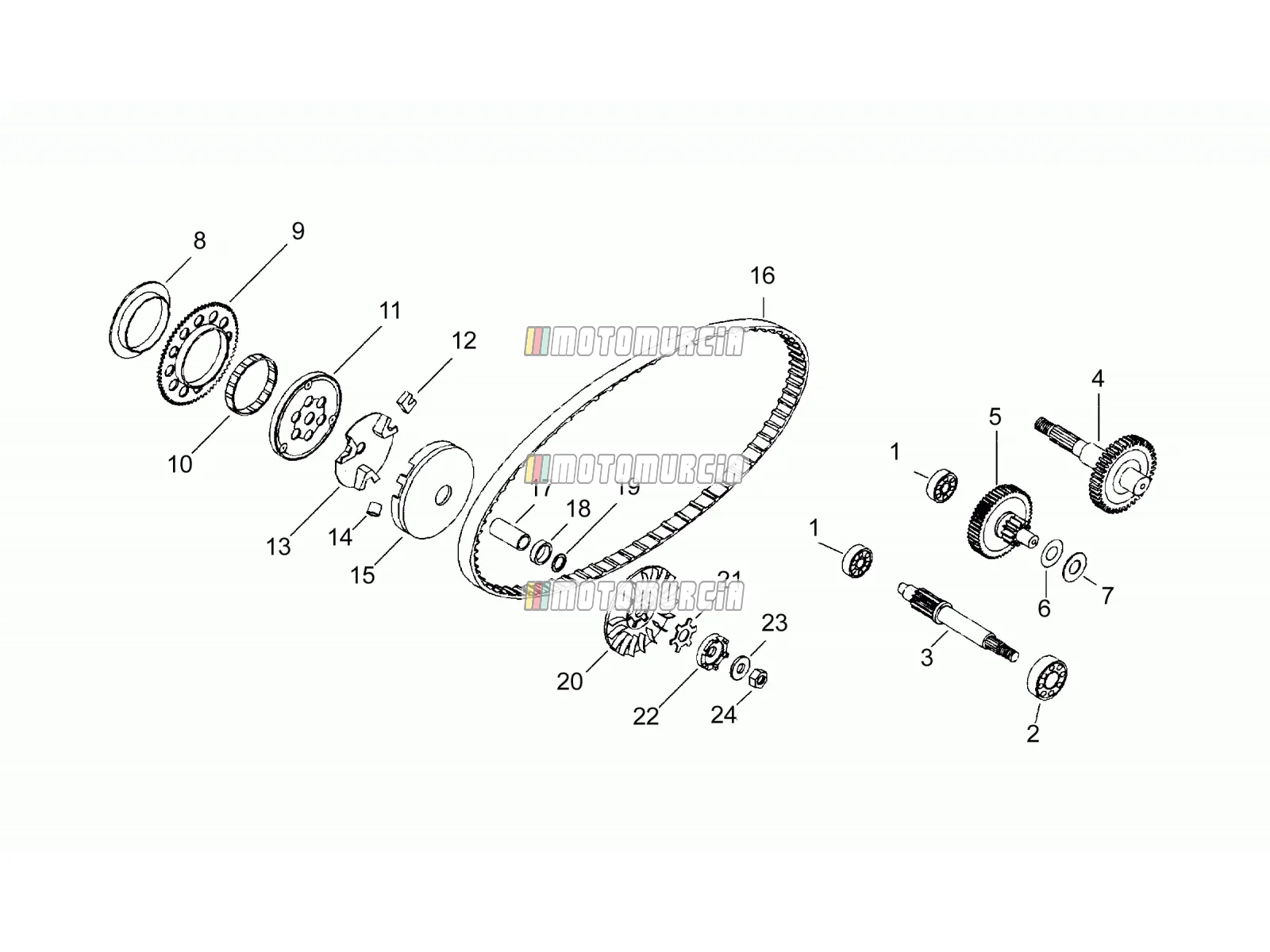

Exploded view — Half-pulley Assy., Driving

Products

1 Bearing Available AP8206159

•

  Ball bearing 10x30x9 mm Piaggio Group · AP8206159 · Quantity needed: 2 Available

  € 23,35

  Add to cart

2 Bearing AP8276046 No longer available

• AP8276046 Bearing
  No longer available

3 Drive shaft Z=13 Available AP8206425

•

  Crankshaft Piaggio Group · AP8206425 Available

  € 89,99

  Add to cart

4 Drive shaft assy Z=44 Backorder AP8206423

•

  Drive Shaft Number of Teeth: 44 Piaggio Group · AP8206423 Backorder

  € 59,29

  Add to cart
• AP8206531 Drive shaft assy Z=42
  No longer available

5 Idle gear assy Z=13/52 AP8206530 No longer available

• AP8206530 Idle gear assy Z=13/52
  No longer available
• AP8206424 Idle gear assy Z=12/52
  No longer available

6 Washer (spring) Available AP8206150

•

  Cup Spring Piaggio Group · AP8206150 Available

  € 6,32

  Add to cart

7 Washer AP8206195 No longer available

• AP8206195 Washer
  No longer available

8 Spacer AP8206479 No longer available

• AP8206479 Spacer
  No longer available

9 Starter motor gear Z=71 AP8206144 No longer available

• AP8206144 Starter motor gear Z=71
  No longer available

10 Cage D57x61x10 AP8206210 No longer available

• AP8206210 Cage D57x61x10
  No longer available

11 Clutch, one way AP8206147 No longer available

• AP8206147 Clutch, one way
  No longer available

12 Variator slider AP8206698 No longer available

• AP8206698 Variator slider Quantity needed: 3
  No longer available

13 Ramp plate Available AP8206136

•

  Calotte Piaggio Group · AP8206136 Available

  € 22,19

  Add to cart

14 Pin roller D8,5 Available AP8206455

•

  Variator roller 15x12 mm, 8,5 g, Content: 1 Stk Piaggio Group · AP8206455 · Quantity needed: 6 Available

  € 5,29

  Add to cart
• AP8206701 Pin roller D8,8 Quantity needed: 6
  No longer available

15 Pulley assy., driving AP8222335 No longer available

• AP8222335 Pulley assy., driving
  No longer available

16 V-Belt Available AP8206109

•

  V-Belt Piaggio Group · AP8206109 Available

  € 70,74

  Add to cart

17 Bush 13x18x38,2 AP8222336 No longer available

• AP8222336 Bush 13x18x38,2
  No longer available

18 Spacer D18x23x4 AP8206597 No longer available

• AP8206597 Spacer D18x23x4
  No longer available
•

  Spacer Ring Piaggio Group · AP8221327 Backorder

  € 10,47

  Add to cart
• AP8206566 Spacer D18x23x2,5
  No longer available

19 Washer (13x18,5x1) AP8206702 No longer available

• AP8206702 Washer (13x18,5x1)
  No longer available

20 V-Belt Pulley AP8206116 No longer available

• AP8206116 V-Belt Pulley
  No longer available

21 Front pulley drive plate AP8206140 No longer available

• AP8206140 Front pulley drive plate
  No longer available

22 Teethed bush Available AP8206141

•

  TOOTHED START CLUTCH CUP Piaggio Group · AP8206141 Available

  € 25,00

  Add to cart

23 Washer AP8206204 No longer available

• AP8206204 Washer
  No longer available

24 Nut AP8206183 No longer available

• AP8206183 Nut
  No longer available
