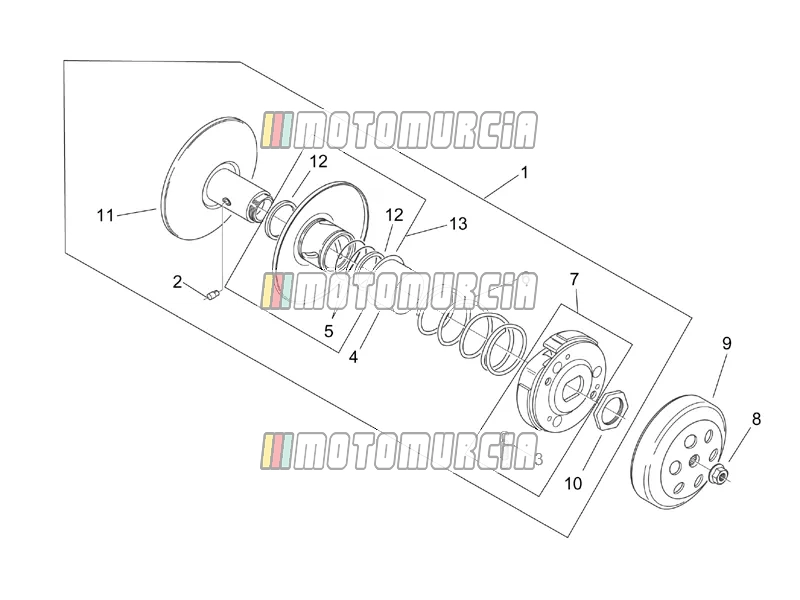

Exploded view — Adler Clutch

Products

1 Speed variator w/ clutch AP2MDA000427 No longer available

• AP2MDA000427 Speed variator w/ clutch
  No longer available

2 Guide roller for variator AP5RMR000092 No longer available

• AP5RMR000092 Guide roller for variator Quantity needed: 3
  No longer available

3 Brake shoes return spring AP5RMR000207 No longer available

• AP5RMR000207 Brake shoes return spring
  No longer available

4 Variator spring cup AP5RMR000088 No longer available

• AP5RMR000088 Variator spring cup
  No longer available

5 O-Ring AP5RMR000097 No longer available

• AP5RMR000097 O-Ring Quantity needed: 2
  No longer available

6 Spring Available AP5RMR000087

•

  Converter spring Piaggio Group · AP5RMR000087 Available

  € 15,71

  Add to cart

7 Clutch Backorder AP5RMR000208

•

  Clutch Shoes Piaggio Group · AP5RMR000208 Backorder

  € 96,80

  Add to cart

8 Nut Available AP4BDN000039

•

  Standard nut M10x1.5 Piaggio Group · AP4BDN000039 Available

  € 2,95

  Add to cart

9 Clutch bell Backorder AP2MDA000426

•

  Clutch Case Piaggio Group · AP2MDA000426 Backorder

  € 164,86

  Add to cart

10 Clutch nut Backorder AP5RMR000085

•

  Standard nut Piaggio Group · AP5RMR000085 Backorder

  € 14,29

  Add to cart

11 Sec. fixed sheave, complete AP5RMR000090 No longer available

• AP5RMR000090 Sec. fixed sheave, complete
  No longer available

12 Oil seal Available AP5RMR000096

•

  Shaft Seal Piaggio Group · AP5RMR000096 · Quantity needed: 2 Available

  € 25,03

  Add to cart

13 Sec. sliding sheave, complete AP5RMR000089 No longer available

• AP5RMR000089 Sec. sliding sheave, complete
  No longer available
