Original spare parts catalog for the Aprilia Tuono 125 (2021) - find OEM parts for Aprilia Tuono 125

Version: Tuono 125

Year: 2021

Select other model

Original spare parts catalog for the Aprilia Tuono 125 (2021) - find OEM parts for Aprilia Tuono 125

Looking for an other year or version of the Aprilia Tuono 125?

Select other model

Aprilia Tuono 125 2021 exploded views

Use the buttons below to filter drawings by group
Clutch Aprilia Clutch B045087 clutch gearing 847045 boss, clutch 871341 driving clutch disc 1A007879 driven clutch disc 847046 clutch collar 879285 clutch spring 847048 screw 876418 washer (lock) 1A013612 nut (special) 847223 pin B016310 spacer B016659 flat washer B015804 flanged nut m12 1A008738 pinion z 29 000097 transmission key 006410 seeger 847224 washer 8472226 bearing 1A009075 spacer 1A008739 water pump pinion 847043 driven clutch disc 8713165 needle bearing Clutch
Clutch Control Aprilia Clutch Control 2B004137 clutch lever cpl. 2B004729 clutch lever 00H00903351 bolt - cable adjuster 2R000321 clutch switch 2B003775 clutch cable AP8220135 rubber spacer 873566 plate Clutch Control
Clutch Cover Aprilia Clutch Cover 1A008734 clutch cover 414838 screw 873566 plate 878241 gasket - clutch cover B015956 dowel pin 847075 oil seal 005420 dowel Clutch Cover
Cooling System Aprilia Cooling System 864510 breather pipe 864572 exp.tnk-rad. hose 866136 coolant tank 863943 cover 00A00410501 clamp CM269606 clamp 898060 clamp 8673345 radiator - water cooler 861299 cover AP8150044 screw AP8150015 washer AP8121679 spacer AP8150220 screw 254485 clip nuts (m6) 00008915020 damper 865655 water cooler-pump tube 865654 water cooler-head tube 864049 electric fan 00H03800722 washer AP8161118 fixing pin 00003515370 washer 864164 screw 00011142500 screw AP8152298 screw 893224 clamp CM226909 spring clamp 29/12 Cooling System
Crankcases I Aprilia Crankcases I 1A01909901 complete crankcase 1st cat. 1A01909902 2nd cat. complete crankcase 177442 needle bearing B015956 dowel pin 8580170R cat.b red bushing half-shells 8580170B cat.a blue bushing half-shells 8580180B cat.b blue bushing half-shells 8580180R cat.a red bushing half-shells 847075 oil seal 847019 oil seal 82668R bearing 182015 needle bearing 898628 needle bearing 484993 dowel pin 898627 bearing 83018R bearing 224664 washer 031057 screw m5x14 006125 washer 274369 screw 847076 shaft pin 873086 gasket - crankcase 873735 clamp 828922 screw B016425 screw Crankcases I
Cylinder Head - Valves Aprilia Cylinder Head - Valves 1A020310 cylinder head 1A017499 lower cap 1A013679 valve stem seal 1A020414 valve return spring 1A017500 upper cap 843338 valve half-cone AP3CAA000412 ball 1A017492 valve (in) 1A017493 valve (ex) 1A017389 exhaust camshaft 1A017388 intake camshaft CM314111 valve lifter bucket sp.2,7 CM314112 valve bucket tappet thk.2.75 CM314102 valve lifter bucket sp.2,25 CM314110 valve lifter bucket sp.2,65 CM314109 valve lifter bucket sp.2,6 CM314101 valve lifter bucket sp.2,2 CM314108 valve lifter bucket sp.2,55 CM314103 valve lifter bucket sp.2,3 CM314107 valve lifter bucket sp.2,5 CM314106 valve lifter bucket sp.2,45 CM314105 valve lifter bucket sp.2,4 CM314104 valve lifter bucket sp.2,35 AP3FCN000127 dowel pin 574260 screw AP3EEN000234 washer AP3ADN000115 5 - screw (m8x166) AP4ABN000117 screw m6x130 1A003117 stud bolt 274369 screw 1A020313 cover 1A021035 thermostat 1A021287R water temperature switch 709674 screw AP3FCN000250 spacer 6x8x6,8 898431 thermostat cover Cylinder Head - Valves
Cylinder - Piston Aprilia Cylinder - Piston 1L005212C cylinder-piston, assy. 1A0175050O piston assy 3°select.o 1A0175050P piston assy 4°select.p 1A0175050N piston assy 2°select.n 1A0175050M piston assy 1°select.m 872692 ring 872693 ring 872694 oil scraper ring 1A007518 piston pin 873173 piston pin 1A007851 cylinder head gasket AP3FCN000128 bush CM278202 gasket - cylinder base (0,4 mm) CM278203 gasket - cylinder base (0,5 mm) 484993 dowel pin Cylinder - Piston
Drive Shaft Aprilia Drive Shaft 8999175002 crankshaft (cat.2) 8999175001 crankshaft (cat.1) 871342 balance shaft 287959 guide roller 8714465002 gear "t" 8714465001 gear "s" 8711565001 gear "s" 8711565002 gear "t" 847217 nut 1A000427 flat washer Drive Shaft
Engine-completing Part-lever Aprilia Engine-completing Part-lever 1U0005985 complete engine B044264 sprocket front (z=13) 00H02810421 plate, drive sprocket fixing AP8150284 washer 2B004810 hex socket screw m5x10 B043826 gearshift lever AP8150137 screw 898059 sprocket cover 00H01600911 spacer AP8152273 screw AP8210007 rh ball joint m6 AP8150026 nut AP8152138 nut AP8110053 left ball joint m6 2B001941 gear control tie rod AP81216976 washer (spring) AP8235011 gear change pedal 866514 bush AP8150468 screw AP8120912 lever rubber AP8150430 nut AP8152299 nut 658830 washer (spring) Engine-completing Part-lever
Exhaust Pipe Aprilia Exhaust Pipe 2B008067 silencer complete 00H02201731 silent-block AP8152292 screw AP8152300 nut 862560 nut (special) 863506 exhaust gasket 1A014335 lambda sensor AP8121736 10 - spacer 487665 damper AP8150382 washer 895915 screw 2B008310 silencer cover 231590 elastic spring Exhaust Pipe
Front Cylinder Timing System Aprilia Front Cylinder Timing System AP3DDA000379 timing chain tensioner AP3DDA000380 timing chain guide 1A003113 chain tensioner screw 871445 pinion AP2DCA000254 timing chain AP3DBA000640 timing gear AP4ABN000132 screw m8x40 AP3DVN000235 washer B016777 screw 1A019253 chain tensioner 847928 gasket - chain tensioner Front Cylinder Timing System
Gear Box / Selector / Shift Cam Aprilia Gear Box / Selector / Shift Cam 1A007531 selector drum 898627 bearing 898628 needle bearing 847083 clutch lever B043224 clutch relese shaft 623920 screw 1A006754 shift shaft assy 274369 screw 005970 ring 006125 washer 1A007910 special screw 871554 lever 1A010665 spring 1A006444 te flanged screw m6x20 B018064 gear selector pin 899154 shift cam plate Gear Box / Selector / Shift Cam
Gear Box - Gear Assembly Aprilia Gear Box - Gear Assembly 871442 pin 83072R fork shift 871443 pin 83073R fork shift 2A000090 driven shaft 872958 gear 1a 899434 fifth speed gear 899432 3rd-4th gear 2A000089 4th gear 899435 gear 6a 872959 gear 2a CM157104 thrust washer 1.8 CM157106 thrust washer 1.6 CM157105 thrust washer 1.7 CM157102 thrust washer 2 CM157103 thrust washer 1.9 CM157101 thrust washer 2.2 872954 needle bearing 872962 washer 871428 seeger 871427 washer 847546 washer 847547 spacer 847541 washer 847545 washer 1A013600 primary shaft assy 2A000088 secondary shaft cpl. B046328 lubrication pipe 873097 o-ring 1A006087 swich neutral light 1A006094 washer Gear Box - Gear Assembly
Lubrication Aprilia Lubrication 1A019107 oil filter cover 855706 o-ring AP9150167 spring 874081 oil filter 1A024308R minimum oil pressure sensor AP9150472 washer 006408 seeger 847183 washer 871501 idle gear 006409 ring 871454 oil pump gear 1A002999 screw w/ flange 871451 oil pump 288474 o-ring 431242 oil filter 285536 gasket - oil drain plug 826165 oil drain plug 847076 shaft pin 485655 spring 829661 oil pressure valve 1A007520 gasket Lubrication
Throttle Body Aprilia Throttle Body CM3162084 throttle body + ecu 1A017577 throttle body hose AP8150521 hex socket screw 1A000833 clamp 890225 injector kit complete iwp198 849898 spring 1A011529 injector support 003056 washer 932108 cap Throttle Body
Water Pump Aprilia Water Pump 1A008734 clutch cover 871358 impeller 1A005891 water pump mechanical seal 1A008740 water pump rod with u.p. 82897R oil seal (20x30x6) 1A008736 water pump gear CM226909 spring clamp 29/12 865655 water cooler-pump tube 871450 pump-cylinder hose CM001907 clamp B016808 screw 1A017960 water pump cover 1A017976 gasket - water pump CM001906 clamp CM269606 clamp Water Pump
Abs Brake System Aprilia Abs Brake System AP8133945 bleeder kit AP8113004 washer gasket 2B008320 abs hecu pipe - front pump 2B008319 abs hecu pipe - front clamp 1C002059R screw (spec) 865493 brake light switch 2B007730 abs hecu pipe - rear pump 2B007727 abs hecu pipe - rear clamp 2B007564 plate 2D000584 abs electrohydraulic unit, prefilled AP8152281 screw 297029 washer AP8144328 spacer (rubber) AP8121718 spacer 2B007562 abs control unit support 254485 clip nuts (m6) 2B007768 connector protection AP9100053 spacer AP8152277 screw (6x12) 270793 screw Abs Brake System
Air Box Aprilia Air Box 2B007500 air filter box 2B007499 air filter fixing frame 861130 air filter 896174 screw 2B007548 cover AP8161054 cap 863320 pipe 2B007389 hose CM226902 spring clamp 19/12 AP8102786 clamp AP8102375 clip nuts (m5) AP8152272 screw AP8102520 clamp AP8102401 clamp 00H03200271 clamp 2B004229 acoustic insulation panel Air Box
Central Body Aprilia Central Body 897691 rh side panel 897692 lh side panel AP8150500 screw AP8102375 clip nuts (m5) 00G04401462 clip nuts (m5) AP8120030 rubber spacer AP8150538 screw (m5x10) AP8150158 washer (4,3x9x0,8) 2B014101 screw Central Body

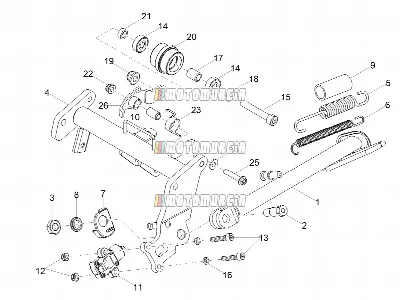

Central Stand Aprilia Central Stand 2B003783 lateral stand AP8121999 stand pin AP8152001 nut 2B008199 stand support AP8221204 lateral stand spring AP8221211 inner spring AP8145056 central stand cam AP8121080 spacer AP8102524 stand spring protection B044392 bush AP81278565 switch, side stand AP8150451 nut 855799 screw AP9100175 bearing AP8150277 screw AP8134640 air box spacer AP8161076 2 - spacer AP8150017 washer AP8152300 nut 2B003455 black chain guide roller AP9100174 spacer AP8152299 nut AP8121939 rh front footrest spring AP8152181 washer AP8152281 screw B044395 chain tens. plate Central Stand

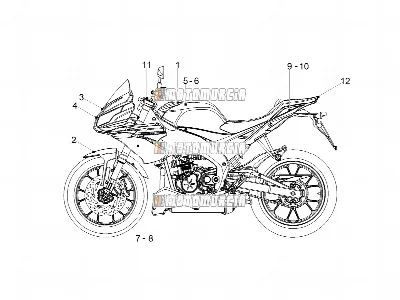

Decal Aprilia Decal 2H000874 emblem - decal (54 world titles) 2H003453 sticker - decal 2H004476 front fairing number board decal, red 2H004472 number plate holder decal 2H004499 number plate holder decal 2H004500 fairing front decal "italia" 2H004473 fairing front decal "italia" 2H003539 sticker - decal 2H004501 rh tank cover decal "aprilia racing" 2H004477 rh tank cover decal, grey "aprilia racing" 2H003540 sticker - decal 2H004502 lh tank cover decal "aprilia racing" 2H004478 lh tank cover decal, grey "aprilia racing" 2H004503 rh side fairing decal 2H003541 sticker - decal 2H004479 rh side fairing decal 2H004504 lh side fairing stripe decal 2H004480 lh side fairing stripe decal 2H003542 sticker - decal 2H004481 rh rear fairing decal "125" 2H004505 rh rear fairing decal "125" 2H004474 rh rear fairing decal "125" 2H004482 lh rear fairing decal "125" 2H004506 lh rear fairing decal "125" 2H004475 lh rear fairing decal "125" 2H001957 upper fork yoke decal "be a racer" AP8157770 "aprilia" dataplate Decal
Duct Aprilia Duct 2B003668 rh lower air duct 2B003669 lh lower air duct 2B003666 rh upper air duct 2B003667 lh upper air duct 2B003670 expansion tank cover 270793 screw AP8220186 spacer (rubber) AP8144563 rivet, male AP8152137 screw AP8152181 washer AP8121032 spacer 896174 screw 00G04401462 clip nuts (m5) AP8144616 rivet, female Duct

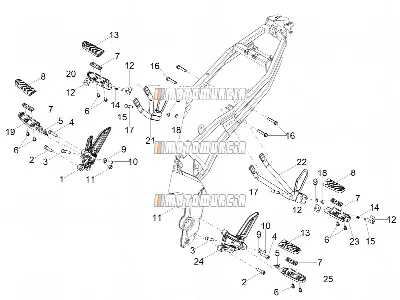

Foot Rests Aprilia Foot Rests 2B008498 rh front footrest bracket B043044 pre-coated m8x30 shc screw AP8121567 pin AP8150107 screw (right thread) AP8221277 footrest return spring AP8152277 screw (6x12) GU32441210 plate GU32443210 footrest rubber AP8144065 rubber spacer AP8152409 stop ring AP8150431 nut AP8134451 footrest plate GU32443211 footrest rubber AP8121133 spring AP8101861 ball 2B002574 hex screw m8x40 (m8x40) CM228401 footrest pin AP8120573 seeger 2B006170 footrest right 2B010340 footrest rear right 2B003991 rh footrest support 2B003990 lh footrest support AP8145009 footrest rear left 2B008497 lh front footrest bracket 2B006169 footrest left Foot Rests

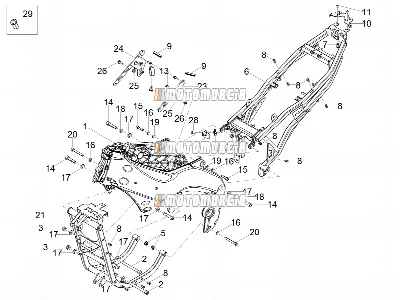

Frame Aprilia Frame 2B004654000XNL frame, painted, ossido black 00H03000272 screw 002440 nut AP8120582 cable-guide AP8152300 nut 2B007769 saddle support AP8102902 hex threaded insert AP8201755 threaded rivet AP8144707 gasket 2B003580 headlight support clamp AP8150538 screw (m5x10) 2B007945 relay support bracket 2B002418 screw w/ flange m6x16 2B005197 precoated shc screw m10x45 2B005999 pre-coated m8x30 shc screw AP8150017 washer AP8150020 washer AP8150292 washer AP8150376 washer (spring) 478761 screw 2B003605 frame cradle 254485 clip nuts (m6) 2B008091 lh engine supoprt 898908 rh engine support 00402100001 washer 2B006418 hex screw m10x16 (m10x16) 2B004511 nut 598839 screw AP8102544 threaded rivet m6 Frame
Front Brake Caliper Aprilia Front Brake Caliper 2B003497 front brake caliper 2B003958 brake pads (sbs si 100 hh) B044201 brake pads (sbs si 90 hh) 2B003959 pins+spring+cotter pin kit AP8150049 screw 2B003957 bleeder kit Front Brake Caliper
Front Fairing Aprilia Front Fairing 2B008239000EQ front fairing 2B008239 front fairing, blank 2B008239000XN5 front fairing 2B008239000XR4 front fairing 2B004091 steering yoke lower closing 2B008241 rh light side panel 2B008240 lh light side panel AP8144563 rivet, male 2B008242 front lower lock 2B001707 windshield 259349 screw 199190 expansion plug AP8102375 clip nuts (m5) AP8150500 screw 2B008243 dashboard panel AP8144616 rivet, female 2B008252 headlight closing AP8121032 spacer AP8152277 screw (6x12) Front Fairing
Front Fork Ming Xing Aprilia Front Fork Ming Xing 2B008178 front fork 2B008196 lower plate B044048 limit stop AP8150236 screw B044049 fork tube cap B044050 o-ring B044051 half ring B044052 ring spring B044053 sleeve B044054 4 - washer B044055 fork oil seal B044056 snap ring B044057 fork dust seal 2B008442 left stem left 2B008443 right stem B044060 washer AP8150196 screw AP8150107 screw (right thread) 2B008181 rh hub cpl. right 2B008182 lh hub cpl. AP8150277 screw AP8150376 washer (spring) 2B004075 clamp AP8221171 spacer Front Fork Ming Xing
Front Master Cilinder Aprilia Front Master Cilinder 2B003614 front master cilinder 2B003961 brake lever 2B003960 brake light switch 2B003963 cover kit 2B004277 pump support u-bolt Front Master Cilinder
Front Mudguard-pillar Aprilia Front Mudguard-pillar 2B008327 right pillar 897700 front mudguard, black AP8102375 clip nuts (m5) AP8224623 reflector, amber AP8150430 nut AP8152137 screw AP8121032 spacer 00H01501701 screw 231590 elastic spring 00H01503701 screw 2B008326 left pillar 867258 front mudguard support AP8150500 screw Front Mudguard-pillar
Front Wheel Aprilia Front Wheel 00H01212841 front wheel, black 00H01205031 internal spacer 601345 wheel bearing AP8201546 tubeless tyre valve 866090 brake disc 2B004560 m6x20 pre-coated hex head screw 2B005544 front/rear tyre 100/80 - 17 m/c 52s f tl/tt michelin 86190R front wheel spindle front 00H01203291 spacer 00032015000 washer 00H00300672 nut 2B003229 spacer 2B002059 phonic wheel 2B003160 wheel hub cap Front Wheel
Fuel Tank Aprilia Fuel Tank 2B008201 fuel tank 2D000605 fuel pump 2B008232 tubo carburante completo 656003 gasket 576546 ring nut AP8150285 10 - screw AP8150536 washer AP8121032 spacer AP8144713 spacer (rubber) 254485 clip nuts (m6) 898715 spacer 2B000909 gasket Fuel Tank
Fuel Vapour Recover System Aprilia Fuel Vapour Recover System 896570 breather pipe 4x8 (4x8) AP8127601 ventilation plug AP8102377 clamp 2B002632 canister CM0019126 clamp CM001914 clamp AP8150050 screw (m5x16) AP8102375 clip nuts (m5) 2B014101 screw 2B007506 canister support 2B008188 canister-valve pipe 2B007991 canister-valve pipe CM001913 clamp CM179008 safety valve 2B000219 joint 2B008189 valve pipe 2B007638 valve support clamp 873653 screw m5x15 B018242 valve assy B018241 valve support 2B008248 pipe 2B008716 valve-engine head pipe 642044 metallic clamp Fuel Vapour Recover System

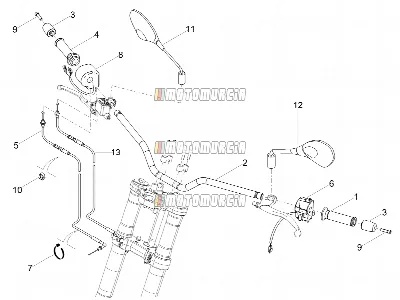

Handlebar - Controls Aprilia Handlebar - Controls 00G00909071 grip left 2B003582 handlebar 866233 handlebar weight (black) 866266 throttle grip 2B008324 gas trasmission delivery AP8124918 handlebar switch left AP8120657 hose clamp 4.5x280 2B008489 rh lights sel. w/wiring 2B002580 screw (m5x50) AP8201727 black cable guide 896663 mirror right 858539 mirror left 2B008325 gas trasmission return Handlebar - Controls
Head Cover Aprilia Head Cover 1A015311 spark plug AP3ATN000118 screw (spec) AP3CAA000399 elastic drift 1A019105 head cover 873651 gasket - head cover 874617 gasket Head Cover
Locks Aprilia Locks 2B008347 lock kit AP8140710 key blank 899542 key switch AP8150349 screw 899106 gasket 899107 fuel chamber 2B003729 seat lock with key 978415 cable fixing plate 2B003727 lock spring 2B003726 saddle release cable 899543 lock attachment plate 874037 screw 2B009073 fuel filler cap and lock AP8150453 screw (m5x30) AP8150454 screw (m5x16) 899105 fuel filler cap gasket AP8220402 fuel hose AP8102764 clamp AP8144298 breather plug 2B004211 be a racer keyring Locks
Plate Set / Various Aprilia Plate Set / Various Plate Set / Various
Rear Body Aprilia Rear Body 2B003059 undersaddle 2B003719 lh rear fairing, blank 2B003719000XBC left tail fairing 2B003719000XN5 lh tail fairing, painted, aprilia black 89887400XN5 rh tail fairing, painted, aprilia black 898874 right tail fairing 89887400XBC right tail fairing 89887900ET lower grab handle 2B0036085 lower grab handle 898878 upper grab handle 2B008614 number plate support 858840 upper number plate holder 258249 screw (4,2x19) 575249 screw (m6x16) AP8150420 screw AP8112600 rubber spacer AP8152329 screw AP8150500 screw AP9100594 spacer (10x7) AP8224470 screw AP8150444 screw 894657 cover AP8150509 screw AP8112916 rear reflector AP8150158 washer (4,3x9x0,8) AP8150204 nut Rear Body
Rear Brake Caliper Aprilia Rear Brake Caliper 2B003686 rear brake caliper 2B003957 bleeder kit 2B003956 pad retainer clip 2B003955 brake pads 2B003055 bush Rear Brake Caliper
Rear Master Cylinder Aprilia Rear Master Cylinder 2B008146 rear master cylinder 858785 brake pedal AP8120912 lever rubber AP8121221 lever pin AP8150462 seeger AP8224470 screw AP8144007 o-ring (11,11x1,78) 884033 screw (lever / brake) 296282 8 - spring 2B004785 springs fixing pin 2B005021 shc screw m6x20 AP8150182 washer (spring) AP8113004 washer gasket 865493 brake light switch 2B007730 abs hecu pipe - rear pump 1C002059R screw (spec) AP8113081 fork AP8150026 nut AP8120178 o-ring 2B004355 missing description 00D01100201 oil tank AP8113082 gear selector fork clips Rear Master Cylinder
Rear Mudguard Aprilia Rear Mudguard B043209 mudguard rear 00011141300 screw AP8150248 washer 00016041301 screw Rear Mudguard
Rear Wheel Aprilia Rear Wheel 867339 rear wheel(complete) 00H01308091 internal spacer 601345 wheel bearing AP8201546 tubeless tyre valve 866115 brake disc (218 mm) 2B004560 m6x20 pre-coated hex head screw 2B007258 rear tyre 140/70 - 17 m/c 66s tl/tt r 865681 wheel pin 00H00300672 nut 866536 spacer 2B008685 chain ring z=58 2B005574R chain 136 passi 2B008515 spacer 00H01303171 chain tensioner 00H01301471 plate 00H01301491 screw (m8x50) 2B002571 pre-coated m8x25 hex flange screw 2B005676 connecting link 2B002074 phonic wheel 2B008516 tickness Rear Wheel
Saddle Aprilia Saddle AP8126702 spacer (rubber) B043933 pad 620350 pad 2B003592000C1 saddle assy (driver) Saddle
Shock Absorber Aprilia Shock Absorber 8656670001 rear shock absorber 00H00303892 screw 00001213190 clearance bush AP8150432 nut Shock Absorber
Side Fairing Aprilia Side Fairing 2B003678 rh lateral fairing, blank 2B003678000XBC rh lat.fairing 2B003678000XN5 rh lat.fairing 2B003678000ET rh lat.fairing 2B003679000XBC lh lat.fairing 2B003679000XN5 lh lat.fairing 2B003679000ET lh lat.fairing 2B003679 lh lateral fairing, blank 2B003664 griglia dx 2B003665 griglia sx AP8144563 rivet, male 294839 screw AP8121167 bush AP8152181 washer AP8220186 spacer (rubber) AP8150500 screw AP8144616 rivet, female 2B003687 threaded pin 259349 screw 2B008344 tappo freccia 2B008343 tappo freccia Side Fairing
Steering Aprilia Steering 2B008817 fork upper plate AP8150170 screw (m8x25) 865482 nut AP8104597 gasket AP8203550 washer AP8110093 bearing 6205-2rs1 25x52x15 865666 tube AP8150349 screw 2B003824 commutator support AP8104390 threaded rivet m5 AP8221036 spacer (5,3x8x7,1) 2B008816 handlebar u-bolt B043044 pre-coated m8x30 shc screw AP8152269 screw 2B003760 switch cover AP8150182 washer (spring) Steering
Swing Arm Aprilia Swing Arm 89947400XNL swing arm, black 600161 needle bearing 00H00305411 pin 865615 nut 866753 spacer 00H00300672 nut 00032015000 washer 00H01509181 guard chain sliding shoe 00016041301 screw 00011141300 screw 826118 spacer 2B003049 guard chain sliding shoe 866754 lh spacer Swing Arm
Tank Cover Aprilia Tank Cover B04347600EQ tank cover B04347600XR4 front tank cover, painted, fluo red B04347600XN5 tank cover B043476 tank cover AP8150285 10 - screw AP8150536 washer AP8121032 spacer 898715 spacer AP8144713 spacer (rubber) AP8102375 clip nuts (m5) 89769600XBC fuel tank cover, white 897696 tank cover 89769600XN5 tank cover 89769600ET tank cover AP8152300 nut AP8121716 spacer AP8120947 rubber exhaust AP8121804 spacer AP8152290 screw AP8152339 screw 254485 clip nuts (m6) AP8234153 u-bolt AP8152281 screw AP8152299 nut Tank Cover
Cdi Magneto Assy / Ignition Unit Aprilia Cdi Magneto Assy / Ignition Unit 640043 stator 1A003109 screw 1A009076 special nut m14x1,5-6h 1A009218 flat washer 1A003115 screw 641009 rotor cpl. 871369 ring 871521 clutch, one way 841613 screw 479515 washer Cdi Magneto Assy / Ignition Unit
Flywheel Cover Aprilia Flywheel Cover 1A009173 ignition cover 874676 complete oil level dipstick 874678 o-ring B015956 dowel pin 414838 screw 8290405 timing plug assembly 1A009397 o-ring 1A007898 gasket - generator cover Flywheel Cover

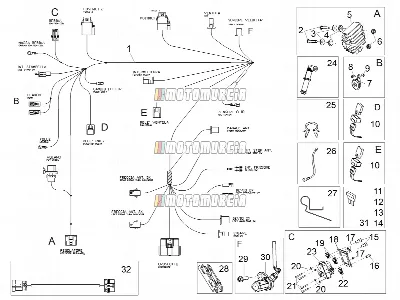

Front Electrical System Aprilia Front Electrical System 2D000659 main wiring harness AP8152128 screw (m6x30) AP8150179 washer AP8121075 spacer 58090R5 voltage regulator AP8152299 nut 863339 horn AP8152285 screw AP8152300 nut AP8224462 relay - starter CM225707 fuse 7,5a CM225715 fuse (15a) CM225720 fuse (20a) CM225730 fuse 30a 319165 screw AP8152277 screw (6x12) 020003 nut B043230 coil holder 575268 clip nuts (m8) 012554 washer 583236 screw 254485 clip nuts (m6) 58120R ignition coil 1A009455 spark plug cap 231590 elastic spring 898067 ht wire B043850 clamp 896944 fairlead 2B002567 screw tefl m5x16 1D003747 abs front sensor CM225705 fuse 5a 2D000661 fuel pump wiring Front Electrical System
Front Lights Aprilia Front Lights 1D003348 headlight 259349 screw AP8150165 screw 013880 washer AP8120030 rubber spacer AP8221023 spacer 254485 clip nuts (m6) Front Lights
Instruments Aprilia Instruments 2D000750 dashboard 2B007818 socket support AP8121736 10 - spacer 487665 damper 097733 washer (spring) 895915 screw AP8102375 clip nuts (m5) AP8152299 nut 013880 washer AP8121728 spacer AP8150508 screw (m6x45) AP8150165 screw 254485 clip nuts (m6) AP8120030 rubber spacer AP8221023 spacer AP8150500 screw Instruments
Rear Electrical System Aprilia Rear Electrical System 2D000659 main wiring harness 1R000317 battery 584662 battery 58115R relay - starter AP8120581 wiring clip AP8112458 battery negative leads AP8120582 cable-guide AP8134186 cable-guide AP8201727 black cable guide AP8102386 clamp 1D003747 abs front sensor 2D000667 intermittent 218812 belt AP8117033 damper AP8152279 screw AP8121728 spacer 898363 battery holder 254485 clip nuts (m6) 1D000680 plugs spring 890760 instrument support 2B003229 spacer 896944 fairlead 669282 washer 894704 fairlead 2B002567 screw tefl m5x16 AP9100765 spring Rear Electrical System

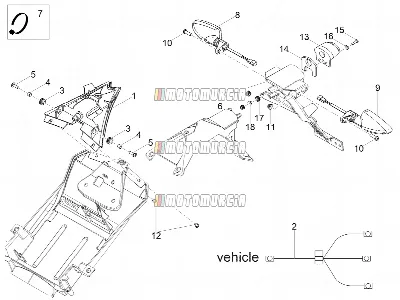

Rear Lights Aprilia Rear Lights 2D000238R taillight assy. 2D000660 taillight wiring harn. AP8220186 spacer (rubber) AP8221036 spacer (5,3x8x7,1) AP8152298 screw AP8150204 nut AP8120657 hose clamp 4.5x280 2D000137 turn indicator right 2D000138 turn indicator left AP8152137 screw AP8152299 nut AP8150538 screw (m5x10) 1D002474 number-plate light AP8117258 vibration-damping rubber AP8150522 screw AP8150158 washer (4,3x9x0,8) AP8112600 rubber spacer 894566 spacer Rear Lights
Starter / Electric Starter Aprilia Starter / Electric Starter 871486 chain ring 8714915 intermediate gear 1A005897 starter motor 018639 screw 000097 transmission key 871515 plate 008375 screw Starter / Electric Starter
