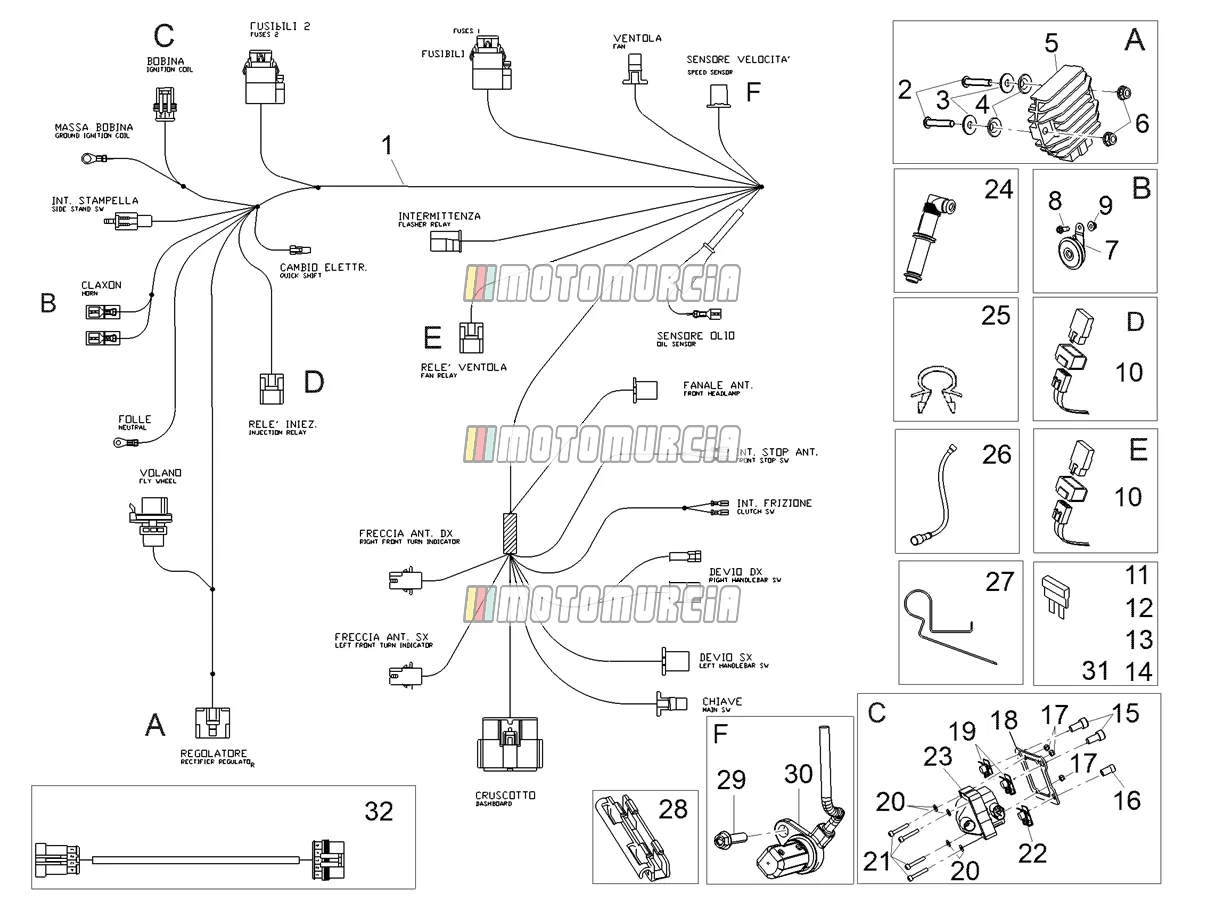

Exploded view — Front Electrical System

Products

1 Main wiring harness Backorder 2D000659

•

  Wiring harness Piaggio Group · 2D000659 Backorder

  € 942,11

  Add to cart

2 Screw (M6x30) Available AP8152128

•

  Screw M6x30 Piaggio Group · AP8152128 · Quantity needed: 2 Available

  € 2,18

  Add to cart

3 Washer Available AP8150179

•

  Shim 6,6x18 mm Piaggio Group · AP8150179 · Quantity needed: 2 Available

  € 1,48

  Add to cart

4 Spacer Available AP8121075

•

  Sleeve Piaggio Group · AP8121075 · Quantity needed: 2 Available

  € 2,35

  Add to cart

5 Voltage regulator 58090R5 No longer available

• 58090R5 Voltage regulator
  No longer available

6 Nut Available AP8152299

•

  Collar nut M6, self-locking Piaggio Group · AP8152299 · Quantity needed: 2 Available

  € 2,18

  Add to cart

7 Horn Available 863339

•

  Horn Piaggio Group · 863339 Available

  € 34,94

  Add to cart

8 Screw Available AP8152285

•

  Flanged Screw M8x16 Piaggio Group · AP8152285 Available

  € 2,18

  Add to cart

9 Nut Available AP8152300

•

  Standard nut M8 Piaggio Group · AP8152300 Available

  € 2,35

  Add to cart

10 Relay - starter Available AP8224462

•

  Starting Relay 12 V, 30 A Piaggio Group · AP8224462 · Quantity needed: 2 Available

  € 25,36

  Add to cart

11 Fuse 7,5A Available CM225707

•

  Fuse 7,5 A Piaggio Group · CM225707 Available

  € 7,51

  Add to cart

12 Fuse (15A) Backorder CM225715

•

  Fuse 15 A Piaggio Group · CM225715 Backorder

  € 7,51

  Add to cart

13 Fuse (20A) Available CM225720

•

  Fuse 20 A Piaggio Group · CM225720 Available

  € 5,03

  Add to cart

14 Fuse 30A Available CM225730

•

  Fuse 30 A Piaggio Group · CM225730 Available

  € 5,11

  Add to cart

15 Screw Available 319165

•

  Screw M8x16 Piaggio Group · 319165 · Quantity needed: 2 Available

  € 1,48

  Add to cart

16 Screw (6x12) Available AP8152277

•

  Flanged Screw M6x12 Piaggio Group · AP8152277 Available

  € 2,18

  Add to cart

17 Nut Available 020003

•

  Standard nut M3 Piaggio Group · 020003 · Quantity needed: 4 Available

  € 0,99

  Add to cart

18 Coil holder Available B043230

•

  Bracket Piaggio Group · B043230 Available

  € 8,11

  Add to cart

19 Clip nuts (M8) Available 575268

•

  Sheet nut Piaggio Group · 575268 · Quantity needed: 2 Available

  € 2,47

  Add to cart

20 Washer Available 012554

•

  Washer Piaggio Group · 012554 · Quantity needed: 4 Available

  € 0,99

  Add to cart

21 Screw Available 583236

•

  Screw M3x20 Piaggio Group · 583236 · Quantity needed: 4 Available

  € 1,48

  Add to cart

22 Clip nuts (M6) Available 254485

•

  Sheet nut Piaggio Group · 254485 Available

  € 2,04

  Add to cart

23 Ignition coil Available 58120R

•

  Ignition Coil Piaggio Group · 58120R Available

  € 59,25

  Add to cart

24 Spark plug cap Available 1A009455

•

  Spark Plug Connector Piaggio Group · 1A009455 Available

  € 59,18

  Add to cart

25 Elastic spring Available 231590

•

  Clip Piaggio Group · 231590 Available

  € 0,99

  Add to cart

26 HT wire Available 898067

•

  Ignition Lead Piaggio Group · 898067 Available

  € 16,01

  Add to cart

27 Clamp Backorder B043850

•

  Clamp Piaggio Group · B043850 Backorder

  € 16,36

  Add to cart

28 Fairlead Available 896944

•

  Cable Guide Piaggio Group · 896944 Available

  € 8,48

  Add to cart

29 Screw TEFL M5X16 Available 2B002567

•

  Screw Piaggio Group · 2B002567 Available

  € 0,99

  Add to cart

30 ABS front sensor Available 1D003747

•

  ABS sensor Piaggio Group · 1D003747 Available

  € 106,31

  Add to cart

31 Fuse 5A Backorder CM225705

•

  Fuse 5 A Piaggio Group · CM225705 · Quantity needed: 2 Backorder

  € 8,47

  Add to cart

32 Fuel pump wiring Backorder 2D000661

•

  Cable for fuel pump Piaggio Group · 2D000661 Backorder

  € 29,19

  Add to cart
