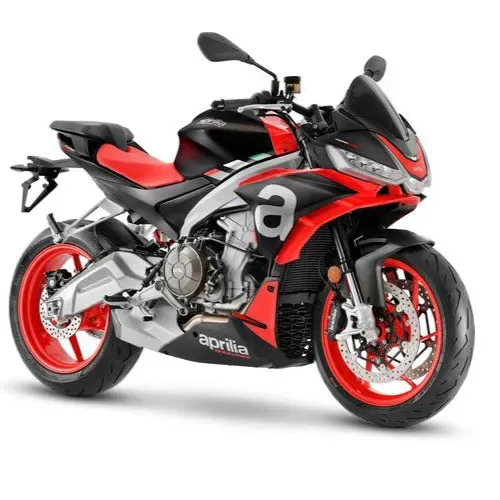

Original spare parts catalog for the Aprilia Tuono 660 (2021) - find OEM parts for Aprilia Tuono 660

Version: Tuono 660

Year: 2021

Select other model

Original spare parts catalog for the Aprilia Tuono 660 (2021) - find OEM parts for Aprilia Tuono 660

Looking for an other year or version of the Aprilia Tuono 660?

Select other model

Aprilia Tuono 660 2021 exploded views

Use the buttons below to filter drawings by group
Clutch Aprilia Clutch 1A018690 clutch drum 974320 washer 1A018699 clutch hub 1A018702 driving clutch disc 1A018701 washer 879315 belleville spring 1A018693 spring retainer 2A000929 driven clutch disc 2A000927 driving clutch disc 1A018696 pressure plate 1A018698 spring 1A018700 screw m6 2A001091 pawl clutch 873543 spacer 974361 roller cage 35x40x35,8 1A018089 stop washer 876790 nut 1A018694 driving clutch disc 1A018695 driving clutch disc 1A010613 nitrurated driven clutch disc 1A010611 lathed driving clutch disc 1A018703 thrust plate Clutch
Clutch Control Aprilia Clutch Control 893926 clutch lever 2D000325 switch - clutch/rear brake 2B005348 clutch cable 667156 clamp 893897 dual cable grommet Ø 6 2B008238 switch support Clutch Control
Clutch Cover Aprilia Clutch Cover 1A019260 clutch cover 1A018062 lever AP8152279 screw 857461 clutch lever return spring 857460 spacer 1A017552 gasket ring B045224 needle bearing 1A017986R clutch control spindle B045225 roller cage 10x14x10 1A015338 oil plug assembly AP9150356 o-ring (18,72x2,62) 411209 2 - pin 1A013509 gasket - clutch cover 874549 screw 880701 seeger 879320 spacer 1A019621 oil seal d12x22x6 1A019262 gasket 1A019261 oil bleed cover 857048 screw (m5x16) 1A019163 special screw 1A019359 special screw (new version from eng m581m0001305) Clutch Cover
Cooling System Aprilia Cooling System 2B006694 radiator - water cooler 2D000572 electric fan 2B005285 water hose (radiator-pump) 2B005286 engine cooling circuit-radiator pipe 2B008021 expansion tank 899642 expansion tank plug 2B007124 pipe AP8102764 clamp 2B007482 bracket 2B005580 water cooler support 890760 instrument support AP8150413 screw AP8221129 spacer AP8152279 screw 2B008123 t bushing AP8120030 rubber spacer 2B004560 m6x20 pre-coated hex head screw 254485 clip nuts (m6) AP8102375 clip nuts (m5) AP8150500 screw AP8152280 screw 896544 fuel pipe 5,5x10 (5,5x10) 2B005581 rod AP8102378 clamp 2B007772 water cooler filler cap AP8152299 nut AP8152286 screw CM013203 4 - sheet edge spring AP8102520 clamp CM269609 clamp 2B008121 water tubes holder AP8121096 spacer AP8152058 screw AP8150509 screw 2B008511 fuel tube 845978 clamp AP8101595 clamp 890505 fuel pipe 5,5x10 2B008778 blinker l 2B009087 tube guide plate AP8221349 spacer Cooling System
Crankcases I Aprilia Crankcases I 1A0204005 crank-case 1A0166824 crank-case 1A0168435 piston cooling jet B018718 screw (m5x14) 1A005178 o-ring 1A011875 ball bearing 30.62.16 1A013139 gasket ring 40.62.7 1A011257 stud bolt m10x1,5 B013608 screw 1A001623 screw 873905 washer 1A020330 countersunk washer 848651 bearing 1A015642 ball bearing 1A020393 ball bearing B045224 needle bearing 1A017552 gasket ring 1A011892 ball bearing 25.47.12 1A018647 roller cage 1A0162430V semicuscinetto di banco verde 1A0162430M semicuscinetto di banco marrone 1A0162430B semicuscinetto di banco blu 1A0162430R semicuscinetto di banco rosso 1A0162430G semicuscinetto di banco giallo 1A0162440B semicuscinetto di banco blu 1A0162440R semicuscinetto di banco rosso 1A0162440V semicuscinetto di banco verde 1A0162440G semicuscinetto di banco giallo 1A0162440M semicuscinetto di banco marrone 1A012005 ball bearing 25.52.15 857427 pin m8x12 1A019559G countershaft bushing yellow 1A019559R countershaft bushing red 1A019559B countershaft bushing blue 1A019559N countershaft bushing black 874551 screw 434429 screw 1A015658 screw w/ flange m10x65 B016805 5 - screw 874747 screw w/ flange m8x60 1A011120 screw 1A017040 tbei flanged screw m5x12 485703 washer Crankcases I
Cylinder Head - Valves Aprilia Cylinder Head - Valves 1A020163 cylinder head assy. 1A020955 discharge upper valve flange 1A016663 half-cone 857030 exhaust valve spring 1A016664 valve stem seal 1A016658 discharge lower valve flange 1A016656 intake upper valve flange 1A008432 intake spring kit (in) 1A013954 calibrated dowel 1A016657 intake lower valve flange 1A016762 screw 1A016659 valve (ex) 1A013958 valve (in) 857035 stud bolt 857044 cover reed valve 857048 screw (m5x16) 857045 reed valve 1A021287R water temperature switch 888775 thermostat 1A012325 thermostat cover 855799 screw 857047 spark arrester 857046 spark arrester 897434 flanged nut m10x1 857208 washer Cylinder Head - Valves
Cylinder - Piston Aprilia Cylinder - Piston 1A0162040B piston (cat. b) 1A0162040A piston (cat. a) 2A000630 piston pin 2A000450 stop ring 1A011923 cylinder head gasket 2A000734 piston ring 2A000735 piston ring 2A000739 piston ring Cylinder - Piston
Drive Shaft Aprilia Drive Shaft 1A0193604E3 crankshaft, weight class e3 1A0193604E1 crankshaft, weight class e1 1A0193604E5 crankshaft (432g) 1A0193604E4 crankshaft, weight class e4 1A0193604E2 crankshaft, weight class e2 000267 woodruff key 1A016237 connecting rod screw 1A0252080G plane bearing - connecting rod (yellow) 1A0252080V plane bearing - connecting rod (green) 2A0008370B plane bearing - connecting rod (blue) 1A0171494 balance shaft 1A011945E3 connecting rod, weight class e3 1A011945E5 connecting rod (313.5-316.50 e5) 1A011945E2 connecting rod, weight class e2 1A011945E4 connecting rod, weight class e4 1A011945E1 connecting rod, weight class e1 Drive Shaft
Engine-completing Part-lever Aprilia Engine-completing Part-lever CM2966116 660 light engine 660 rs tuono emea usa light 2B005847 sprocket cover 2B005886 chain guide AP8152277 screw (6x12) AP8121811 t bush 2B006353 gear change pedal 884033 screw (lever / brake) AP8144007 o-ring (11,11x1,78) AP8121221 lever pin AP8120912 lever rubber AP8150020 washer AP8224470 screw AP8150462 seeger AP8150376 washer (spring) AP8150431 nut 2B011144 gear lever 2B008395 gear control tie rod Engine-completing Part-lever
Exhaust Pipe Aprilia Exhaust Pipe 2B008334 exhaust silencer AP8152293 screw AP8150018 washer 967363 nut AP8121509 bush 2B006742 rubber spacer 2B006844 bracket 852090 exhaust gasket 1A014335 lambda sensor 2B007247 rubber spacer 2B008186 maintenance 2B014101 screw 2B007076 bushing 436947 nut (m7x1) Exhaust Pipe
Gear Box / Selector / Shift Cam Aprilia Gear Box / Selector / Shift Cam 1A019677 selector shaft 1A013662 spring 1A019181 shift cam 1A013663 selector drum AP8152285 screw 1A012987 lever 1A018584 spring 857494 o-ring B0167965 screw 1A018583 special screw 1A003049 hexagon socket button head screw 1A013659 retainer plate 874599 fork output 849360 fork 873772 fork shaft 1A018096R gear position sensor Gear Box / Selector / Shift Cam
Gear Box - Gear Assembly Aprilia Gear Box - Gear Assembly 1A019499 primary gear shaft 1A018886 fifth speed gear 1A018890 3rd-4th gear 1A018887 gear 6a 1A012118 2nd speed gear 1A016957 1st speed gear 1A018889 5th speed gear 1A018888 4th gear 1A019882 3rd gear 1A018086 gear 6a 1A018085 second speed gear 1A012117 driven shaft 2B006795 sprocket front (z=17) 2B002193 belleville spring 2B002191 t bushing B043047 screw w/ flange m10x25 849308 moveable bush 871901 10 - o-ring 974558 spacer 1A017027 thrust washer 849424 clearance washer 849426 snap ring 849310 clearance washer 849309 clearance washer 849311 snap ring 974320 washer 1A016199 lubrication pipe 224035 o-ring 2B006792 spacer Gear Box - Gear Assembly
Lubrication Aprilia Lubrication 1A015578 oil pump 1A017357 internal rotor 1A017358 external rotor 436739 vite testa svasata impronta a croce m3x12 1A015801 oil water exchanger 1A023538 oil filter 1A013090 oil filter union 1A013847 stop washer GU92296723 roller 1A024308R minimum oil pressure sensor 1A013477 oil drain plug 1A020131 flat washer AP9150472 washer 1A019932 gasket - oil sump 1A003153 screw 1A016029 oil strainer 478012 o-ring 1A017610 oil pressure adjusting valve 1A018736 oil pan 1A023928 oil drain plug 831393 gasket 874549 screw 1A016024 connecting pipe 2B005351 cooling tube CM226902 spring clamp 19/12 1A013000 flanged hexagon screw 1A016035 oil pump gear 1A014411 belleville spring 1A014410 m7x18 pre-coated hex head screw Lubrication
Throttle Body Aprilia Throttle Body 1A019430 corpo farfallato completo 1A017323 fuel pipe 1A016982 big end sleeve / throttle body AP8102378 clamp 478533 screw 6423025 air pressure sensor (map sensor) 894658 joint 2B005650 depression pipe 2B005649 vacuum pipe 896567 sec. screw 857306 clamp 2B003052 spacer Throttle Body
Timing System Aprilia Timing System 1A0191225 asse a camme aspirazione 1A0196035 exhaust camshaft 1A012867 timing system gear 1A013825 timing chain guide 1A015310 timing chain tensioner 1A018441 special screw 1A012147 timing chain 1A017120 timing chain guide (upper) 1A017119 plate 2A000111 chain tensioner 857176 o-ring 1A020131 flat washer 1A015611 special screw 1A013092 torx convex big end screw 016661 washer AP9150174 oil drain plug Timing System
Water Pump Aprilia Water Pump 1A0128614 complete flywheel cover 434885 washer B016998 gasket 82991R water pump mechanical seal (30 mm) 1A012869 rotor 1A024071 gasket - water pump 1A018484 water pump gear 847239 washer B017632 screw 874549 screw 1A016769 water pump cover Water Pump
Abs Brake System Aprilia Abs Brake System 2B006459 rear brake pipe hecu abs-clamp 2B006458 rear brake pipe pump-hecu abs 2B008224 front brake pipe pump-hecu abs 2B007005 front brake pipe hecu abs-clamp 2B006455 front brake pipe clamp-clamp 2B006818 brake hose hanger 2D000540 abs electrohydraulic unit, prefilled 2B006807 holder 2B008679 brake hose holder plate CM013203 4 - sheet edge spring CM013201 clamp 2B007076 bushing 2B014101 screw 2B000276 staple AP8152186 screw (m6x12) AP8120001 rubber spacer AP9100053 spacer AP8144328 spacer (rubber) AP8121718 spacer AP8152281 screw 297029 washer 899811 tube clamping screw AP8113004 washer gasket 2B001983 oil pipe screw 2B008060 tube guide cover CM178603 screw AP8150413 screw 231590 elastic spring AP8133945 bleeder kit Abs Brake System
Air Box Aprilia Air Box 2B006530 upper fan shroud 2B006527 filter housing cover GU30729330 air temp. sensor AP8150421 screw GU30027931 gasket 2B006528 seal air filter box 2B006532 air filter 2B006531 air filter closing 2B005422 air cleaner sleeve AP8152329 screw 2B006529 filter housing base AP8152117 screw AP8152181 washer CM013203 4 - sheet edge spring AP8104525 filter blow-by 1A007396 intake duc lower front 1A007397 intake duct lower back 893132 screw 893240 o-ring (56,82x2,62) AP8220150 damper AP8101586 clamp 2B008143 oil breather pipe CM001905 clamp 254485 clip nuts (m6) AP8152270 screw 2B007741 support bracket 2B008228 fixing bracket 874549 screw Air Box
Central Body Aprilia Central Body 2B006645 rh side panel 2B006646 lh side panel AP8150500 screw 00G04401462 clip nuts (m5) 2B014101 screw 2B007247 rubber spacer Central Body
Central Stand Aprilia Central Stand 2B006338 sidestand assy AP8221211 inner spring AP8221204 lateral stand spring AP8102524 stand spring protection 2B007560 central stand fixing screw AP8150292 washer AP8152001 nut 2B006346 spacer bushing AP8150086 screw 2D000530 rotary switch AP8152279 screw Central Stand
Decal Aprilia Decal 2H003453 sticker - decal 2H004565 front fairing number holder decal 2H004227 sticker - decal front 2H004566 decalco frontale carena dx "tuono 660" 2H004242 decalco frontale carena dx "tuono 660" 2H004228 decalco frontale carena dx "tuono 660" 2H004243 decalco frontale carena sx "tuono 660" 2H004229 decalco chiusura frontale cupolino "italia" 2H004244 rh fuel tank decal "aprilia racing" 2H003986 rh fuel tank decal "aprilia racing" 2H004325 rh fuel tank decal "aprilia racing" 2H004326 lh fuel tank decal "aprilia racing" 2H003987 lh fuel tank decal "aprilia racing" 2H004245 lh fuel tank decal "aprilia racing" 2H003988 sticker - decal right 2H004246 band right tank decal 2H003989 sticker - decal left 2H004247 band left tank decal 2H004248 rh side fairing decal "a" 2H004230 rh side fairing decal "a" 2H004231 lh side fairing decal "a" 2H004249 lh side fairing decal "a" 2H004232 rh lower fairing decal "aprilia racing" 2H004233 lh lower fairing decal "aprilia racing" 2H004567 rh lower fairing decal 2H004234 rh lower fairing decal 2H004235 lh lower fairing decal 2H004568 lh lower fairing decal 2H004236 decalco puntale carena superiore dx 2H004569 decalco puntale carena superiore dx 2H004237 decalco puntale carena superiore sx 2H004570 decalco puntale carena superiore sx 2H004240 rh rear fairing decal "tuono 660" 2H004571 rh rear fairing decal "tuono 660" 2H004250 rh rear fairing decal "tuono 660" 2H004572 lh rear fairing decal "tuono 660" 2H004251 lh rear fairing decal "tuono 660" 2H004241 lh rear fairing decal "tuono 660" 2H000874 emblem - decal (54 world titles) AP8157770 "aprilia" dataplate 2B008140 decalco pressione pneumatici/tensione catena Decal
Foot Rests Aprilia Foot Rests 2B005206 lh footrest support 2B005205 rh footrest support 2B005203 rh front footrest bracket 2B005202 lh front footrest bracket 2B006170 footrest right 2B006169 footrest left 2B010340 footrest rear right AP8145009 footrest rear left AP8121134 footrest pin AP8121567 pin AP8221277 footrest return spring AP8152409 stop ring AP8121566 footrest pin AP8134451 footrest plate AP8121133 spring AP8110110 ball d.7 2B006346 spacer bushing AP8152410 screw 895845 hex screw flang.m 10 B043041 screw (m8x45) 859946 fixing pin GU32443210 footrest rubber GU32443211 footrest rubber GU32441210 plate AP8152277 screw (6x12) Foot Rests
Frame Aprilia Frame 2B006475 frame 2B006819 saddle support 2B008726 saddle support 2B007221 saddle support bracket 2B007593 taillight support AP8150538 screw (m5x10) GU98250630 screw AP8102544 threaded rivet m6 AP8150469 2 - screw (m10x30) 2B006504 screw (m10x225) AP8152301 nut AP8144158 spacer (rubber) 2B006865 pin m12 2B005387 spacer 271740 nut 2B006482 gasket ring Ø35xØ42x4 2B006609 screw w/ flange m10x45 895845 hex screw flang.m 10 AP8150292 washer 254485 clip nuts (m6) 575268 clip nuts (m8) 2B006864 flat washer Frame
Front Body Aprilia Front Body 2B008045000L01 rh lat.fairing,yellow 2B008045000NI rh lat.fairing, black right 2B008045 rh lat.fairing 2B008045000G12 rh lat.fairing, grey 2B008044000G12 lh lat.fairing, grey 2B008044000NI lh lat.fairing, black left 2B008044 lh lat.fairing 2B008044000L01 lh lat.fairing, yellow 2B008047 rh fairing closure 2B008046 lh fairing closure 2B008043000XR4 rh internal fairing, red 2B008043 rh internal fairing 2B008043000XNM rh internal fairing, black 2B008042 lh internal fairing 2B008042000XR4 lh internal fairing, red 2B008042000XNM lh internal fairing, black 2B008032 rh internal fairing 2B008031 lh internal fairing AP8220488 damper AP8144563 rivet, male AP8144616 rivet, female AP8150500 screw AP8150509 screw 00G04401462 clip nuts (m5) Front Body
Front Brake Caliper Aprilia Front Brake Caliper 2B006451 rh front brake caliper 2B006452 lh front brake caliper 2B000214 brake pads front B044598 pins+spring+cotter pin kit 2B005564 screw m10x1,25x55 Front Brake Caliper
Front Fairing Aprilia Front Fairing 2B008037 windshield 2B008040 front fairing 2B008040000NI front fairing, black 2B008039 top fairing fastener 2B008024000XNM front lower lock 2B008024 front lower lock 2B008024000XR4 front lower lock 2S001315 screw (m4x14) 895916 washer AP8144564 rubber w/ insert m4 AP8144616 rivet, female AP8144563 rivet, male AP8150500 screw 00G04401462 clip nuts (m5) AP8150509 screw 896174 screw Front Fairing
Front Fork Kayaba Aprilia Front Fork Kayaba 2B007921 rh hub cpl. 2B007922 lh hub cpl. 2B008001 sleeve 2B004402 fork oil seal (repair kit cpl.) 2B004403 bush 2B008002 rh hub 2B007920 lh hub 2B007913 plunger, complete 2B004406 plain washer 2B004407 screw 2B007910 spring 2B004421 preload tube 2B004422 washer 2B004410 buffer 2B004411 nut 2B007996 cover 2B004414 ring 2B004413 plug with or 149104 screw 1D003747 abs front sensor AP8152268 screw 2B009302 piastrina fermacavo sensore abs B046190 fairlead AP8150177 washer AP8152267 screw Front Fork Kayaba
Front Master Cilinder Aprilia Front Master Cilinder 2B007234 pil brake tank plug 2B007235 brake oil tank 2B007726 fr. brake master cylinder 2B007071 brake lever AP8213057 joint AP8133666 lever pin B044585 front master cyl.cradle 2B005379 oil tank pipe AP8101595 clamp AP8150340 screw 2B002993 oil brake tank supp. AP8152137 screw AP8120030 rubber spacer AP8221023 spacer AP8150474 stainless cap nut m6 658830 washer (spring) AP8133502 air bleed valve AP8113230 bleed valve cap AP8150182 washer (spring) Front Master Cilinder
Front Mudguard-pillar Aprilia Front Mudguard-pillar 2B008035 rh lower fairing 2B008034 lh lower fairing 2B005345 silencer protection right 2B007477 silencer protection left 2B007481 closing right 2B007479 closing left 1B005154 rivet 2B008033 pillar 2B008635 front mudguard 2B005548 clamp right 2B005547 lh clamp AP8120030 rubber spacer AP8152272 screw AP8224163 reflector, orange AP8152306 nut AP8150500 screw AP8150376 washer (spring) CM013203 4 - sheet edge spring 401605 pad AP8221036 spacer (5,3x8x7,1) AP8152298 screw 841821 washer 00G04401462 clip nuts (m5) AP8102375 clip nuts (m5) 1D002265 clamp Front Mudguard-pillar
Front Wheel Aprilia Front Wheel 2B005585 front wheel with bearings 3.5x17" (3,5x17) 2B006829 front tyre "dunlop" 2B007585 front/rear tyre "pirelli" B044279 brake disc B044280 brake disc 2B006183 front wheel ins.spacer 2B007579 ball bearing 17x40x12 2B006236 gasket ring 22x40x7 nbr75 825667 seeger AP8104728 tubeless tyre valve 90° (90°) 2B002416 brake disc fixing screw (m8x2) 2B006215 front rh wheel spacer 2B004778 abs phonic wheel 2B006202 front wheel spindle Front Wheel
Fuel Tank Aprilia Fuel Tank 2H004321000L01 fuel tank 2H004221000G12 fuel tank, grey 2B005484 unfinished fuel tank 2H003976000NI fuel tank 2D000547 fuel pump 2B007147 fuel pipe 2B007519 support plate 2B007518 bush AP8220241 rubber spacer * AP8152283 screw 2B001203 insert 2B002567 screw tefl m5x16 2B008187 tube support bracket 2B008876 bush fixing AP8150016 washer AP8101372 damper AP8120965 o-ring Fuel Tank
Fuel Vapour Recover System Aprilia Fuel Vapour Recover System 2B002632 canister AP8120179 clamp 896570 breather pipe 4x8 (4x8) 2B007476 tank-fitting pipe 3/16" sae30 r12a AP8127601 ventilation plug AP8102738 hose clamp CM179008 safety valve AP8120446 clamp B018242 valve assy AP8102239 clamp 2B008078 sae 30 pipe 2B007484 shed pipe assembly AP8102765 clamp CM001901 clamp 2B007475 canister / valve pipe 3/16" sae30 r12a AP8104666 3-way union AP8120657 hose clamp 4.5x280 2B005723 maintenance CM013203 4 - sheet edge spring AP8102375 clip nuts (m5) AP8121032 spacer 598839 screw CM001911 clamp Fuel Vapour Recover System
Handlebar - Controls Aprilia Handlebar - Controls 2B003468 handlebar 2D000095 throttle grip (throttle by wire) AP8118579 grip left 2B008391 handlebar weight AP8152003 screw 858539 mirror left 896663 mirror right 2D000550 handlebar switch right 2D000548 handlebar switch AP8121520 anti vib.weight trailing Handlebar - Controls
Head Cover Aprilia Head Cover 1A019263 head cover 1A012849 gasket - spark plug 1A015311 spark plug 874555 2 - screw 857084 ht coil short cable 842291 bolt, valve head cover 898410 gasket - head cover screw 1A011919 gasket - head cover Head Cover
Locks Aprilia Locks 2B006654 lock kit AP8150453 screw (m5x30) AP8150454 screw (m5x16) 2B006664 fuel filler cap and lock 899105 fuel filler cap gasket 2B007153 fuel chamber 899106 gasket AP8150351 shear rivet m8x40 149104 screw 2D000568 key switch 899543 lock attachment plate AP8121420 fork spring 978415 cable fixing plate 2B006663 seat lock with key GU98250630 screw 2B006659 key blank 2B005651 saddle release cable Locks
Pad Aprilia Pad 855632 valve lifter bucket CM327001 pad 1.75 CM327053 pad 3.05 CM327030 pad 2.47 CM327047 pad 2.90 CM327029 pad 2.45 CM327024 pad 2.32 CM327011 pad 2.00 CM327009 pad 1.95 CM327010 pad 1.97 CM327044 pad 2.82 CM327045 pad 2.85 CM327049 pad 2.95 CM327017 pad 2.15 CM327046 pad 2.87 CM327018 pad 2.17 CM327051 pad 3.00 CM327021 pad 2.25 CM327040 pad 2.72 CM327054 pad 3.07 CM327038 pad 2.67 CM327002 pad 1.77 CM327055 pad 3.10 CM327043 pad 2.80 CM327027 pad 2.40 CM327050 pad 2.97 CM327032 pad 2.52 CM327014 pad 2.07 CM327056 pad 3.12 CM327020 pad 2.22 CM327007 pad 1.90 CM327013 pad 2.05 CM327012 pad 2.02 CM327036 pad 2.62 CM327034 pad 2.57 CM327016 pad 2.12 CM327026 pad 2.37 CM327035 pad 2.60 CM327037 pad 2.65 CM327008 pad 1.92 CM327028 pad 2.42 CM327005 pad 1.85 CM327006 pad 1.87 CM327042 pad 2.77 CM327022 pad 2.27 CM327003 pad 1.80 CM327041 pad 2.75 CM327004 pad 1.82 CM327052 pad 3.02 CM327019 pad 2.20 CM327033 pad 2.55 CM327048 pad 2.92 CM327023 pad 2.30 CM327015 pad 2.10 CM327025 pad 2.35 CM327031 pad 2.50 CM327057 pad 3.15 CM327039 pad 2.70 857066 valve lifter bucket 2R000552 valve shim Pad
Plate Set / Various Aprilia Plate Set / Various Plate Set / Various
Rear Body Aprilia Rear Body 2B006651 rear handle 2B006647 right tail fairing 2B006647000G12 rh rear fairing, grey 2B006647000L01 rh rear fairing, yellow 2B006647000NI rh rear fairing, black competition 2B006648000NI lh rear fairing, black competition 2B006648000L01 lh rear fairing, yellow 2B006648000G12 lh rear fairing, grey 2B006648 left tail fairing 2B006649 number plate carrier 895914 license plate 2B007364 codone interno AP8201727 black cable guide 2B007778 flanged bushing AP8152298 screw AP8152306 nut CM179302 screw (m6x22) 896174 screw AP8150500 screw 00G04401462 clip nuts (m5) 2B006641 license plate fastener AP8150413 screw 2B008368 adhesive gasket CM179201 screw AP8152299 nut 2B002570 screw tefl m6x25 AP8152287 screw Rear Body
Rear Brake Caliper Aprilia Rear Brake Caliper 2B008643 rear brake caliper 1D003747 abs front sensor 2B006394 rear brake caliper support AP8152268 screw 2B002418 screw w/ flange m6x16 893969 brake pads AP8221349 spacer AP8152298 screw 858791 rear brake hose support AP8113752 pin+split pin AP8113753 air bleed valve AP8113070 bleed valve cap Rear Brake Caliper
Rear Master Cylinder Aprilia Rear Master Cylinder 2B007140 brake hydraulic pump rear AP8113081 fork AP8113082 gear selector fork clips AP8150026 nut 598839 screw AP8101595 clamp 2B007141 oil tank pipe 2B007248 brake oil tank AP8152299 nut AP8152279 screw AP8120912 lever rubber AP8121221 lever pin AP8224470 screw 2B006355 brake pedal AP8150462 seeger AP8120822 silent block, spring 893138 spring 859946 fixing pin 884033 screw (lever / brake) AP8150020 washer AP8144007 o-ring (11,11x1,78) 2D000325 switch - clutch/rear brake 2B004845 electric device support AP8150500 screw AP8113288 rubber bellows AP8213057 joint AP8120178 o-ring CM013203 4 - sheet edge spring Rear Master Cylinder
Rear Mudguard Aprilia Rear Mudguard 2B006388 rear mudguard 2B003422 m5x12 pre-coated countersunk hex head torx screw AP8120712 spacer (rubber) Rear Mudguard
Rear Wheel Aprilia Rear Wheel 2B008370 rear wheel 5.5x17" 2B006240 crown holder cpl. 832848 wheel bearing rear 006662 16 - snap ring 2B006559 oil seal 40x62x7 nbr75 2B006285 spring drive spacer CM306201 sprocket rear (z=43) 2B006060 chain protection 2B006242 damper - rear wheel hub 2B002634 nut (m10x1,25) 2B006283 rear wheel spacer 2B006284 rear wheel spacer AP8104728 tubeless tyre valve 90° (90°) AP8125687 washer AP8125763 nut 2B007292 washer AP8107168 chain (110) AP8125841 gasket ring 30x47x7 006647 seeger 2B007581 ball bearing 20x47x14 2B006246 rear wheel ins.spacer 2B007580 bearing 2B006830 rear tyre "dunlop" 2B007586 rear tyre "pirelli" 2B006173 wheel pin rear 2B002416 brake disc fixing screw (m8x2) 890960 phonic wheel 85248R brake disc (220 mm) Rear Wheel
Saddle Aprilia Saddle 2B006652000C1 saddle assy (passenger) 2B007073000C1 saddle assy (driver) 2B007073000C2 saddle assy (driver) 2B000421 rubber spacer B064023 saddle rubber 2B005994 pad 2B006634 bracket CM179301 screw Saddle
Saddle Compartment Aprilia Saddle Compartment 2B007272 saddle supp.lower lockup 2B006602 fuse block support 2B006672 battery cover CM013201 clamp AP8150413 screw 2B014101 screw AP8102375 clip nuts (m5) Saddle Compartment
Secondary Air Aprilia Secondary Air 857181 sas valve 2B005515 secondary air pipe 2B005514 secondary air pipe airbox 2B005567 support bracket AP8152246 screw AP8121032 spacer AP8141132 rubber spacer CM225401 clamp CM001905 clamp CM002912 clamp Secondary Air
Shock Absorber Aprilia Shock Absorber 2B005358 rear shock absorber AP8152411 screw (m10x59) AP8121155 t bush * AP8152301 nut 2B007902 bushing Shock Absorber
Steering Aprilia Steering 2B007296 lower plate 2B007297 fork upper plate 2B007089 pin AP8150236 screw 2B003980 upper u-bolt AP8150540 screw 2B006618 steering yoke lower closing 2B008616 fairlead AP8123641 dust cover ring AP8152282 screw 598839 screw 2B011121 steering bearing 2B008439 upper plate fixing bush AP8152442 10 - stem plug washer 149104 screw 887832 steering security plate AP8123643 return ring nut 2B008079 fairlead 2B005143 screw (m6x12) 2B006482 gasket ring Ø35xØ42x4 190567 cover AP8121096 spacer AP8221017 spacer AP8150311 low self-locking nut AP8121811 t bush AP8152285 screw AP8152300 nut 887831 spacer (rubber) AP8123642 ring nut AP8150252 screw Steering
Swing Arm Aprilia Swing Arm 2B007756 swing arm AP8110067 needle bearing 2B005212 bush 2B007102 thrust washer 2B005214 gasket Ø22xØ28x4 2B005460 swinging arm spacer 2B006174 rear swing arm pin 2B006173 wheel pin rear 1C002565 nut 2B006388 rear mudguard 2B003422 m5x12 pre-coated countersunk hex head torx screw 2B006293 chain guide shoe AP8152298 screw AP8234020 cup for shoe 858791 rear brake hose support AP9100594 spacer (10x7) AP8152338 screw 2B006661 rh chain tensioner 2B006662 lh chain tensioner AP8125687 washer AP8125763 nut 2B001920 screw (chain tens.adjuster) 2B004511 nut 2B006283 rear wheel spacer 2B006389 crank-case cover 2B005283 swingarm insert 2B006284 rear wheel spacer 2B006784 flat washer 2B006677 rh protection 2B008842 biadhesive right 2B008253 pre-impregnated screw tbei m5x20 torx Swing Arm
Tank Cover Aprilia Tank Cover 2B006630000XR4 fuel tank cover, black 2B006630000XNM cover serbatoio benz.v. 2B006630 tank cover AP8152267 screw AP8102375 clip nuts (m5) 860447 biadhesive AP8120591 washer 10x5,3x1* Tank Cover
Cdi Magneto Assy / Ignition Unit Aprilia Cdi Magneto Assy / Ignition Unit B044495 starter motor 1A012162 electric starter gear 82953R starter motor gear 830389 clutch, one way 1A019557 stator 1A016098 rotor, assy. 82964R sprag clutch housing B015563 screw w/ flange m14x1,5 825725 washer 1A013141 cable fixing plate 1A002950 screw m5x14 B013207 screw (m6x18) 1A002951 hex socket screw m6x30 848845 plate 878872 screw 414838 screw 184400 spacer Cdi Magneto Assy / Ignition Unit
Central Electrical System Aprilia Central Electrical System 2D000459 engine wiring CM3018074 electronic control unit 2B006797 ecu cover 2B008502 sensor support 639792 battery AP8144552 lat.battery support rubber 2D000564 battery cable 894603 fuse holder box AP8220150 damper AP8221017 spacer AP8152280 screw 2B002570 screw tefl m6x25 CM225607 fuse (7,5a) CM225615 fuse (15a) CM225620 fuse (20a) CM013203 4 - sheet edge spring CM013202 pipes/cables retainer spring AP8120001 rubber spacer 2B008768 bush 00G04401462 clip nuts (m5) 642248 fall sensor AP8152181 washer Central Electrical System
Flywheel Cover Aprilia Flywheel Cover 1A0128614 complete flywheel cover 1A016703 cover 974219 gasket 1A013508 gasket - generator cover 874549 screw Flywheel Cover
Front Electrical System Aprilia Front Electrical System 2D000680 main wiring harness 1A012332 voltage regulator 2B006603 starter device cover AP8224462 relay - starter 1D001697R relay - starter 1D001697R relay - starter CM225730 fuse 30a AP8150413 screw CM013201 clamp AP8152128 screw (m6x30) AP8150179 washer AP8152299 nut AP8121075 spacer 890760 instrument support 2D000348 connecting CM013203 4 - sheet edge spring 1D000129 clamp 863339 horn AP8152285 screw AP8152300 nut 2D000627 plate light wiring 2D000676 hose clamp AP8152329 screw AP8124936 air temp. sensor Front Electrical System
Front Lights Aprilia Front Lights 2D000707 headlight AP8152270 screw Front Lights
Instruments Aprilia Instruments 2B008022 right instrument panel support 2B008023 left instrument panel support 2D000554 dashboard AP8150255 washer AP8220150 damper AP8221017 spacer AP8152270 screw 575249 screw (m6x16) AP8152329 screw AP8150272 curved spring washer 5,3x10x0,5 00G04401462 clip nuts (m5) AP8150500 screw 2B008049 rh internal cover 2B008048 lh internal cover 2B008108 dashboard lid 2B008077 winndshield support 621914 screw 895916 washer AP8144564 rubber w/ insert m4 2B008462 cover usb Instruments
Rear Lights Aprilia Rear Lights 2D000692 taillight assy. AP8112916 rear reflector 2D000284 number-plate light 2D000137 turn indicator right 2D000138 turn indicator left AP8152137 screw AP8152299 nut AP8150204 nut AP8150501 washer 2B002146 tbei pre-impregnated screw m4x12 896174 screw 00G04401462 clip nuts (m5) AP8152298 screw AP8121795 spacer AP8220186 spacer (rubber) Rear Lights
